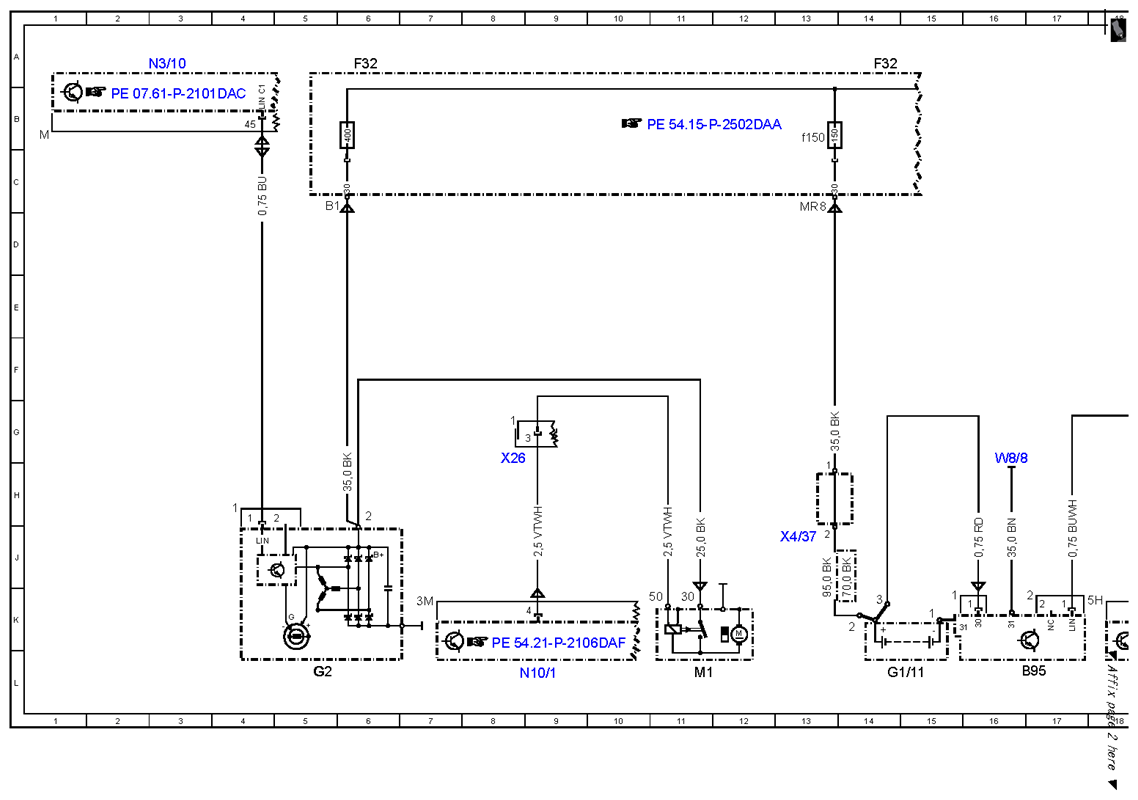

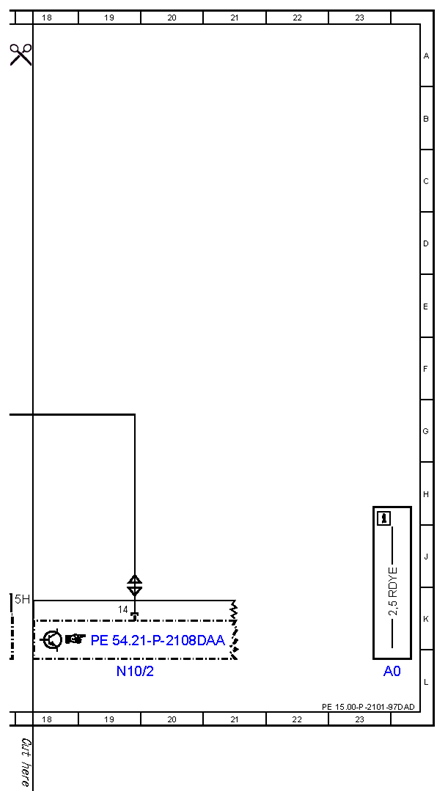

Wiring diagram of starter, alternator, battery - PE15.00-P-2101-97DAD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156 in MODEL 212.077/277
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 23L |
| B95 | Battery sensor | 17L |
| F32 | Front electrical prefuse box | 6A |
| F32 | Front electrical prefuse box | 14A |
| F32f150 | Pyrofuse 150 | 13B |
| G1/11 | Rear on-board electrical system battery | 14L |
| G2 | Alternator | 5L |
| LIN C1 | Drive train LIN | 4B |
| M1 | Starter | 11L |
| N10/1 | Front SAM control unit with fuse and relay module | 9L |
| N10/2 | Rear SAM control unit with fuse and relay module | 19L |
| N3/10 | ME-SFI [ME] control unit | 3A |
| W8/8 | Ground point (right rear end) | 16G |
| X26 | Interior and engine wiring harness electrical connector | 8H |
| X4/37 | Terminal block (circuit 30) | 13J |
