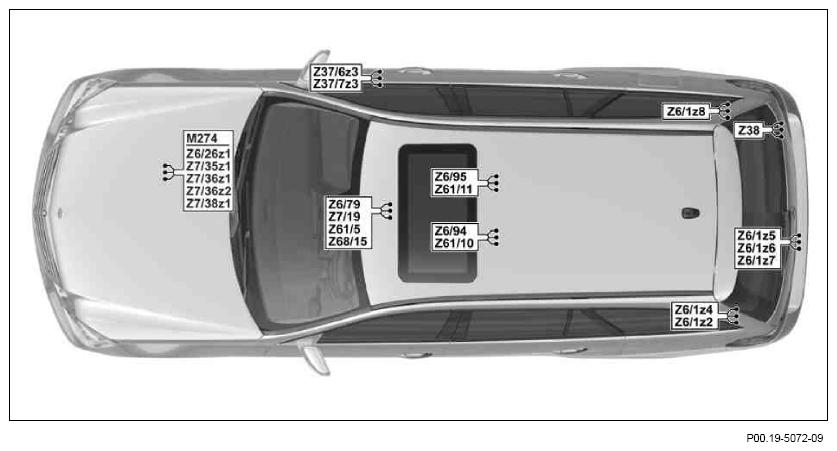

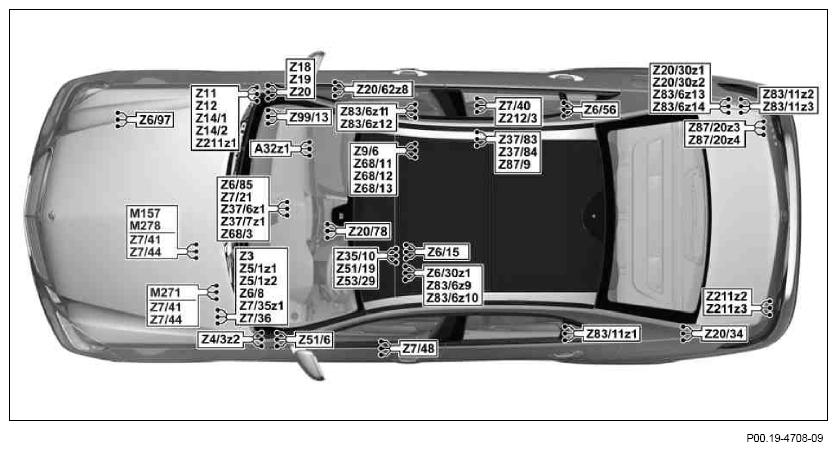

Location and assignment of Z connector sleeves (wiring and plug connectors in wiring harness) - GF00.19-P-3000DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212
| A32z1 | Air conditioner housing connector sleeve | Location | GF00.19-P-3000-03DAA |
| Assignment (AAC [KLA]) | PE83.40-P-2101DAA | ||
| Assignment (C-AAC [K-KLA]) | PE83.40-P-2101DAC | ||
| Z3 | Circuit 15 connector sleeve | Location | GF00.19-P-3000-01DAA |
| Z4/3z2 | Circuit 30 connector sleeve | Location | GF00.19-P-3000-04DAA |
| Assignment | PE54.21-P-2105DAA | ||
| Z5/1z1 | Blower/fan connector sleeve | Location | GF00.19-P-3000-01DAA |
| Assignment | PE07.61-P-2101DAD | ||
| Z5/1z2 | Blower/fan connector sleeve | Location | GF00.19-P-3000-01DAA |
| Assignment | PE07.61-P-2101DAD | ||
| Z6/1z2 | Circuit 31 connector sleeve | Location | GF00.19-P-3000-06DAA |
| Assignment | PE00.19-P-2800DAC | ||
| Z6/1z4 | Circuit 31 connector sleeve | Location | GF00.19-P-3000-06DAA |
| Assignment | PE00.19-P-2800DAC | ||
| Z6/1z5 | Circuit 31 connector sleeve | Location | GF00.19-P-3000-06DAA |
| Assignment | PE00.19-P-2800DAC | ||
| Z6/1z6 | Circuit 31 connector sleeve | Location | GF00.19-P-3000-06DAA |
| Assignment | PE00.19-P-2800DAC | ||
| Z6/1z7 | Circuit 31 connector sleeve | Location | GF00.19-P-3000-06DAA |
| Assignment | PE00.19-P-2800DAC | ||
| Z6/1z8 | Circuit 31 connector sleeve | Location | GF00.19-P-3000-07DAA |
| Assignment | PE00.19-P-2800DAC | ||
| Z6/8 | Sensor ground connector sleeve | Location | GF00.19-P-3000-01DAA |
| Assignment (M 271) | PE07.08-P-2101DAA | ||
| Assignment (except 212.08/09/28/29 with M 651) | PE07.16-P-2101DAE | ||
| Assignment (212.08/09/28/29 with M 651) | PE07.16-P-2101DAH | ||
| Z6/15 | Right seat belt buckle circuit 31 connector sleeve | Location | GF00.19-P-3000-04DAA |
| Assignment | PE91.60-P-2105DAB | ||
| Z6/30z1 | ME-SFI [ME] diagnosis connector sleeve | Location | GF00.19-P-3000-04DAA |
| Assignment | PE07.61-P-2101DAC | ||
| Z6/56 | Circuit 31 connector sleeve | Location | GF00.19-P-3000-05DAA |
| Assignment | PE00.19-P-2800DAA | ||
| Z6/85 | Sensor ground connector sleeve | Location | GF00.19-P-3000-03DAA |
| Assignment (AAC [KLA]) | PE83.40-P-2101DAA | ||
| Assignment (C-AAC [K-KLA]) | PE83.40-P-2101DAB | ||
| Z6/94 | Driver seat circuit 31 connector sleeve | Location | GF00.19-P-3000-04DAA |
| Assignment on left-hand drive vehicle | PE00.19-P-2800DAH | ||
| Assignment on right-hand drive vehicle | PE00.19-P-2800DAI | ||
| Z6/95 | Front passenger seat circuit 31 connector sleeve | Location | GF00.19-P-3000-05DAA |
| Assignment on left-hand drive vehicle | PE00.19-P-2800DAI | ||
| Assignment on right-hand drive vehicle | PE00.19-P-2800DAH | ||
| Z6/97 | Right lamp unit circuit 31 connector sleeve | Location | GF00.19-P-3000-02DAA |
| Assignment | PE00.19-P-2800DAA | ||
| Z7/21 | Air conditioning circuit 30 connector sleeve | Location | GF00.19-P-3000-03DAA |
| Assignment (AAC [KLA]) | PE83.40-P-2101DAA | ||
| Assignment (C-AAC [K-KLA]) | PE83.40-P-2101DAB | ||
| Z7/35z1 | Circuit 87 M1e connector sleeve | Location | GF00.19-P-3000-01DAA |
| Assignment (M 271, M 272 DE) | PE00.19-P-2600DAA | ||
| Assignment (M 272 KE, M 273) | PE00.19-P-2600DAB | ||
| Assignment (M 156) | PE00.19-P-2600DAC | ||
| Z7/36 | Circuit 87 M2e connector sleeve | Location | GF00.19-P-3000-01DAA |
| Assignment (M 271, M 272 DE) | PE00.19-P-2600DAA | ||
| Assignment (M 156) | PE00.19-P-2600DAC | ||
| Assignment (M 651) | PE07.16-P-2101DAH | ||
| Z7/40 | Circuit 30 connector sleeve | Location | GF00.19-P-3000-05DAA |
| Assignment | PE54.21-P-2105DAA | ||
| Z7/41 | Sensor voltage supply connector sleeve | Location | GF00.19-P-3000-01DAA |
| M157, M278 assignment | PE07.08-P-2101DAF | ||
| Assignment M271 | PE07.08-P-2101DAA | ||
| Z7/44 | Sensor ground connector sleeve | Location | GF00.19-P-3000-01DAA |
| M157, M278 assignment | PE07.08-P-2101DAF | ||
| Assignment M271 | PE07.08-P-2101DAA | ||
| Z7/48 | Circuit 87D2 connector sleeve | Location | GF00.19-P-3000-04DAA |
| Assignment with CODE U42 | PE14.40-P-2101DAA | ||
| Assignment with CODE U77 | PE14.40-P-2101DAB | ||
| Z9/6 | Travel distance signal connector sleeve 1 | Location | GF00.19-P-3000-05DAA |
| Assignment (ESP Basis) up to 02/13 | PE42.47-P-2000DAA | ||
| Assignment (ESP Premium) up to 02/13 | PE42.47-P-2000DAB | ||
| Assignment as of 03/13 | |||
| PE42.47-P-2000DAC | |||
| Z11 | Connector sleeve 3 in wiring harness | Location | GF00.19-P-3000-05DAA |
| Assignment | PE54.21-P-2105DAA | ||
| Z12 | Connector sleeve 4 in wiring harness | Location | GF00.19-P-3000-05DAA |
| Assignment | PE54.21-P-2105DAA | ||
| Z14/1 | Microphone connector sleeve (+) | Location | GF00.19-P-3000-05DAA |
| Assignment | PE54.21-P-2105DAB | ||
| Z14/2 | Microphone connector sleeve (-) | Location | GF00.19-P-3000-05DAA |
| Assignment | PE54.21-P-2105DAB | ||
| Z18 | Connector sleeve 10 | Location | GF00.19-P-3000-05DAA |
| Assignment (sheet 1) | PE54.21-P-2105DAA | ||
| Assignment (Sheet 2) | PE54.21-P-2105DAB | ||
| Z20/30z1 | Tracer wire connector sleeve | Location | GF00.19-P-3000-07DAA |
| Assignment (with CODE (414) Power glass tilting/sliding roof) | PE54.21-P-2107DAA | ||
| Assignment (except CODE (414) Power glass tilting/sliding roof) | PE54.21-P-2107DAB | ||
| Z20/30z2 | Tracer wire connector sleeve | Location | GF00.19-P-3000-07DAA |
| Assignment (with CODE (414) Power glass tilting/sliding roof) | PE54.21-P-2107DAA | ||
| Assignment (except CODE (414) Power glass tilting/sliding roof) | PE54.21-P-2107DAB | ||
| Z20/34 | Tracer wire connector sleeve | Location | GF00.19-P-3000-06DAA |
| Assignment | PE82.62-P-2101DAA | ||
| Z20/62z8 | Screening end connector sleeve | Location | GF00.19-P-3000-05DAA |
| Assignment | PE54.30-P-2103DAA | ||
| Z20/78 | Taxi screening end | Location | GF00.19-P-3000-04DAA |
| Assignment | PE54.21-P-2105DAA | ||
| Z35/10 | MOST wake-up signal connector sleeve | Location | GF00.19-P-3000-04DAA |
| Assignment | PE82.00-P-2710DAA | ||
| Z37/6z1 | CAN bus high connector sleeve | Location | GF00.19-P-3000-03DAA |
| Assignment | PE00.19-P-2195DAA | ||
| Z37/6z3 | CAN bus high connector sleeve | Location | GF00.19-P-3000-05DAA |
| Assignment | PE00.19-P-2180DAA | ||
| Z37/7z1 | CAN bus low connector sleeve | Location | GF00.19-P-3000-03DAA |
| Assignment | PE00.19-P-2195DAA | ||
| Z37/7z3 | CAN bus low connector sleeve | Location | GF00.19-P-2000-05DAA |
| Assignment | PE00.19-P-2180DAA | ||
| Z37/83 | Multifunction control unit CAN bus high connector sleeve | Location | GF00.19-P-3000-05DAA |
| Assignment (sheet 1) | PE54.21-P-2105DAA | ||
| Assignment (Sheet 2) | PE54.21-P-2105DAB | ||
| Z37/84 | Multifunction control unit CAN bus low connector sleeve | Location | GF00.19-P-3000-05DAA |
| Assignment (sheet 1) | PE54.21-P-2105DAA | ||
| Assignment (Sheet 2) | PE54.21-P-2105DAB | ||
| Z38 | Backup lamp connector sleeve | Location | GF00.19-P-3000-07DAA |
| Assignment | PE54.65-P-2102DAA | ||
| Z51/6 | Circuit 58d vehicle interior connector sleeve | Location | GF00.19-P-3000-04DAA |
| Assignment | PE54.21-P-2106DAD | ||
| Z51/19 | Engine management crash signal connector sleeve | Location | GF00.19-P-3000-04DAA |
| Assignment (M 271) | PE07.08-P-2101DAB | ||
| Assignment (M 272 DE) | PE07.08-P-2101DAD | ||
| Assignment (M 642) | PE07.16-P-2101DAA | ||
| Assignment (except 212.08/09/28/29 with M 651) | PE07.16-P-2101DAE | ||
| Assignment (212.08/09/28/29 with M 651) | PE07.16-P-2101DAH | ||
| Assignment (M 272 KE, M 273) | PE07.61-P-2101DAB | ||
| Assignment (M 156) | PE07.61-P-2101DAD | ||
| Z53/29 | Rear entertainment system circuit 30 connector sleeve | Location | GF00.19-P-3000-04DAA |
| Assignment | PE82.60-P-2104DAA | ||
| Z61/10 | Driver seat backrest and head restraint adjustment motor connector sleeve | Location | GF00.19-P-3000-04DAA |
| Assignment | PE91.29-P-2104DAA | ||
| Z61/11 | Front passenger seat backrest and head restraint adjustment motor connector sleeve | Location | GF00.19-P-3000-05DAA |
| Assignment | PE91.29-P-2105DAA | ||
| Z68/11 | Rear air conditioning LIN bus ground line connector sleeve | Location | GF00.19-P-3000-05DAA |
| Assignment | PE83.40-P-2101DAB | ||
| Z68/12 | Rear air conditioning LIN bus positive lead connector sleeve | Location | GF00.19-P-3000-05DAA |
| Assignment | PE83.40-P-2101DAB | ||
| Z68/13 | Rear air conditioning LIN bus data line connector sleeve | Location | GF00.19-P-3000-05DAA |
| Assignment | PE83.40-P-2101DAB | ||
| Z83/6z9 | Screening end connector sleeve | Location | GF00.19-P-3000-04DAA |
| Assignment | PE82.60-P-2104DAA | ||
| Z83/6z10 | Screening end connector sleeve | Location | GF00.19-P-3000-04DAA |
| Assignment | PE82.60-P-2104DAA | ||
| Z83/6z11 | Screening end connector sleeve | Location | GF00.19-P-3000-05DAA |
| Assignment | PE82.60-P-2104DAA | ||
| Z83/6z12 | Screening end connector sleeve | Location | GF00.19-P-3000-05DAA |
| Assignment | PE82.60-P-2104DAA | ||
| Z83/6z13 | Screening end connector sleeve | Location | GF00.19-P-3000-07DAA |
| Assignment | PE82.60-P-2104DAA | ||
| Z83/6z14 | Screening end connector sleeve | Location | GF00.19-P-3000-07DAA |
| Assignment | PE82.60-P-2104DAA | ||
| Z83/11z1 | Screening end connector sleeve | Location | GF00.19-P-3000-04DAA |
| Assignment | PE82.85-P-2101DAA | ||
| Z83/11z2 | Screening end connector sleeve | Location | GF00.19-P-3000-07DAA |
| Assignment | PE82.60-P-2220DAA | ||
| Z83/11z3 | Screening end connector sleeve | Location | GF00.19-P-3000-07DAA |
| Assignment | PE82.60-P-2220DAA | ||
| Z87/9 | Two-way radio cut-in connection line connector sleeve | Location | GF00.19-P-3000-05DAA |
| Assignment | PE54.21-P-2105DAA | ||
| Z87/20z3 | Taxi emergency alarm system button connector sleeve | Location | GF00.19-P-3000-07DAA |
| Assignment | PE54.21-P-2105DAA | ||
| Z87/20z4 | Taxi emergency alarm system button connector sleeve | Location | GF00.19-P-3000-07DAA |
| Assignment | PE54.21-P-2105DAA | ||
| Z99/13 | Radar sensors control unit circuit 87 connector sleeve | Location | GF00.19-P-3000-05DAA |
| Assignment | PE30.30-P-2102DAA | ||
| Z211z1 | Circuit 30 supply connector sleeve | Location | GF00.19-P-3000-05DAA |
| Assignment (with CODE (489) AIRmatic (air suspension with continuous adjustment damping)) 212.077/277 with CODE (488) Steel/air suspension) | PE32.22-P-2101DAA | ||
| Assignment (with CODE (480) Level control at rear axle) | PE32.33-P-2101DAA | ||
| Z211z2 | Circuit 30 supply connector sleeve | Location | GF00.19-P-3000-06DAA |
| Assignment (with CODE (489) AIRmatic (air suspension with continuous adjustment damping)) 212.077/277 with CODE (488) Steel/air suspension) | PE32.22-P-2101DAA | ||
| Assignment (with CODE (480) Level control at rear axle) | PE32.33-P-2101DAA | ||
| Z211z3 | Circuit 30 supply connector sleeve | Location | GF00.19-P-3000-06DAA |
| Assignment (with CODE (489) AIRmatic (air suspension with continuous adjustment damping)) 212.077/277 with CODE (488) Steel/air suspension) | PE32.22-P-2101DAA | ||
| Assignment (with CODE (480) Level control at rear axle) | PE32.33-P-2101DAA | ||
| Z212/3 | Circuit 31 connector sleeve | Location | GF00.19-P-3000-05DAA |
| Assignment | PE54.21-P-2105DAA | ||
