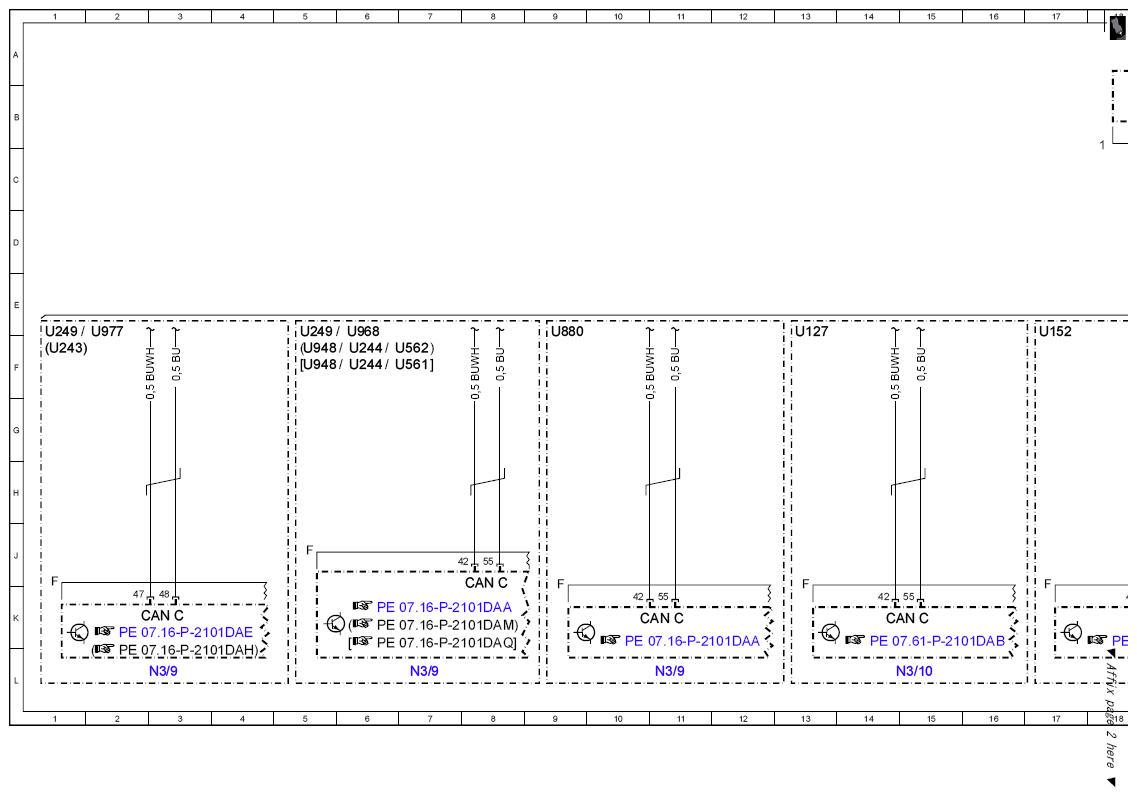

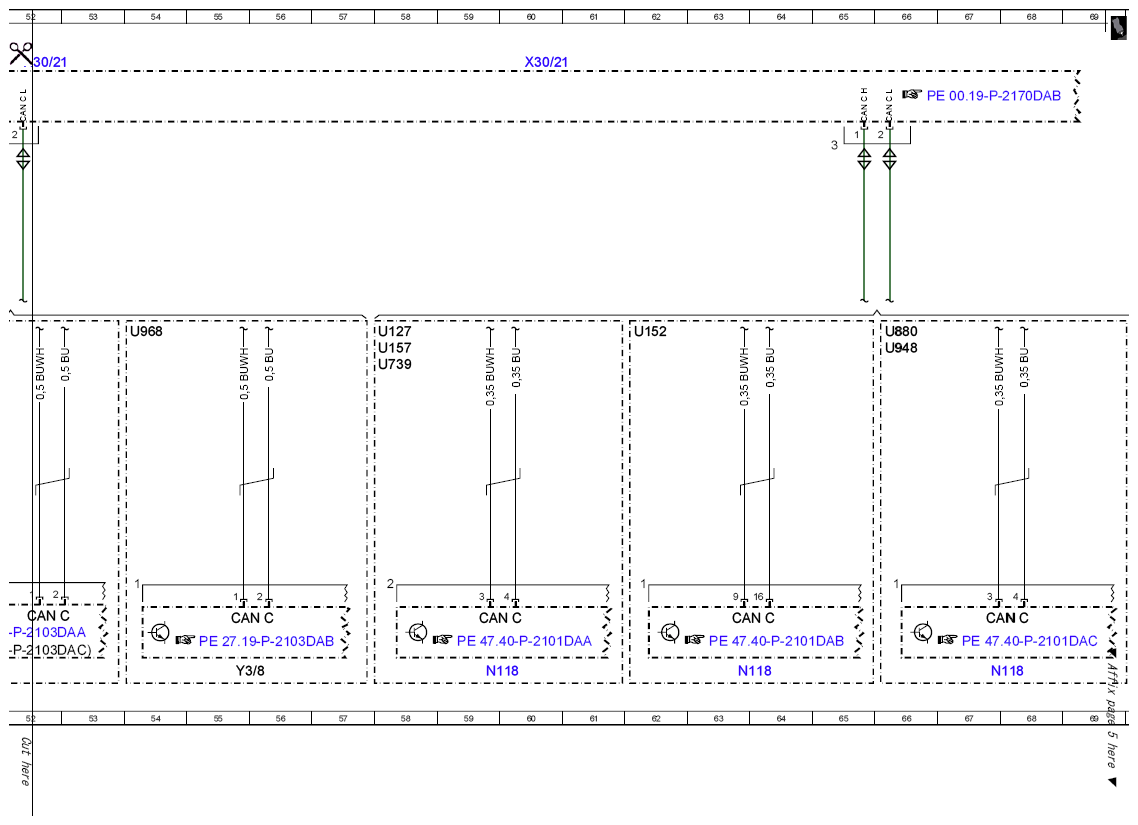

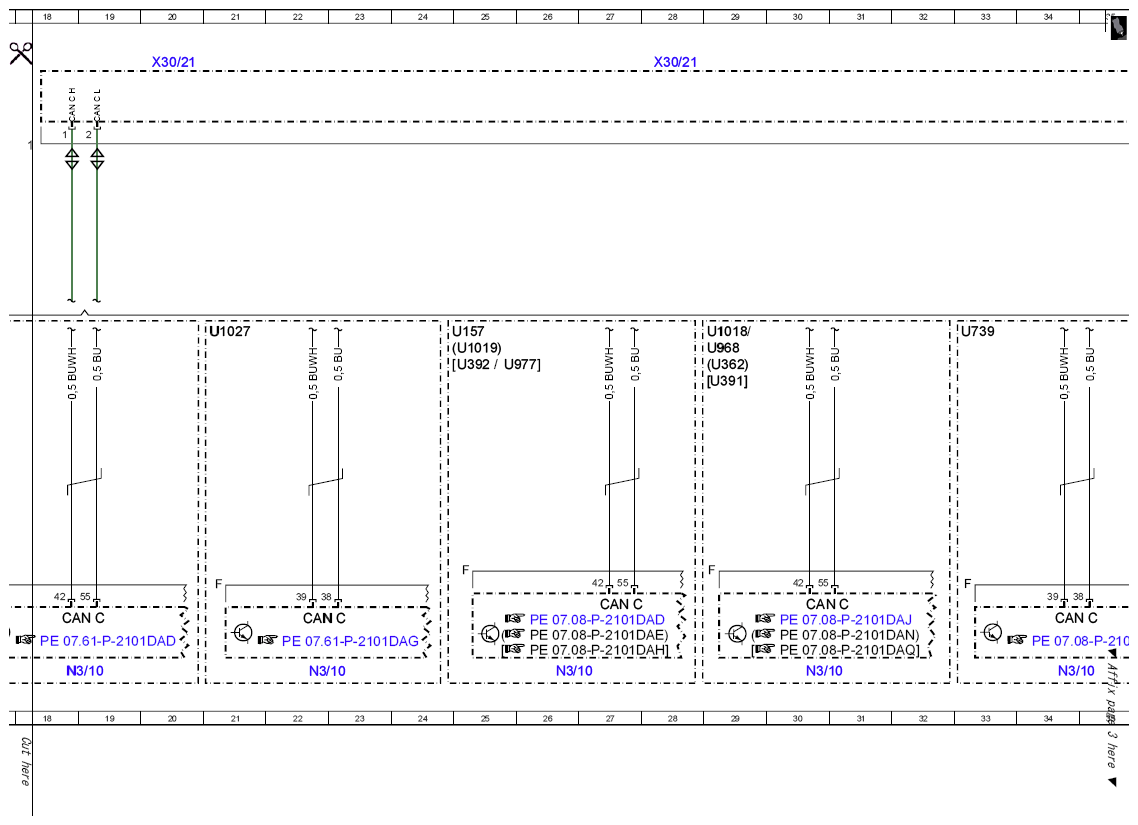

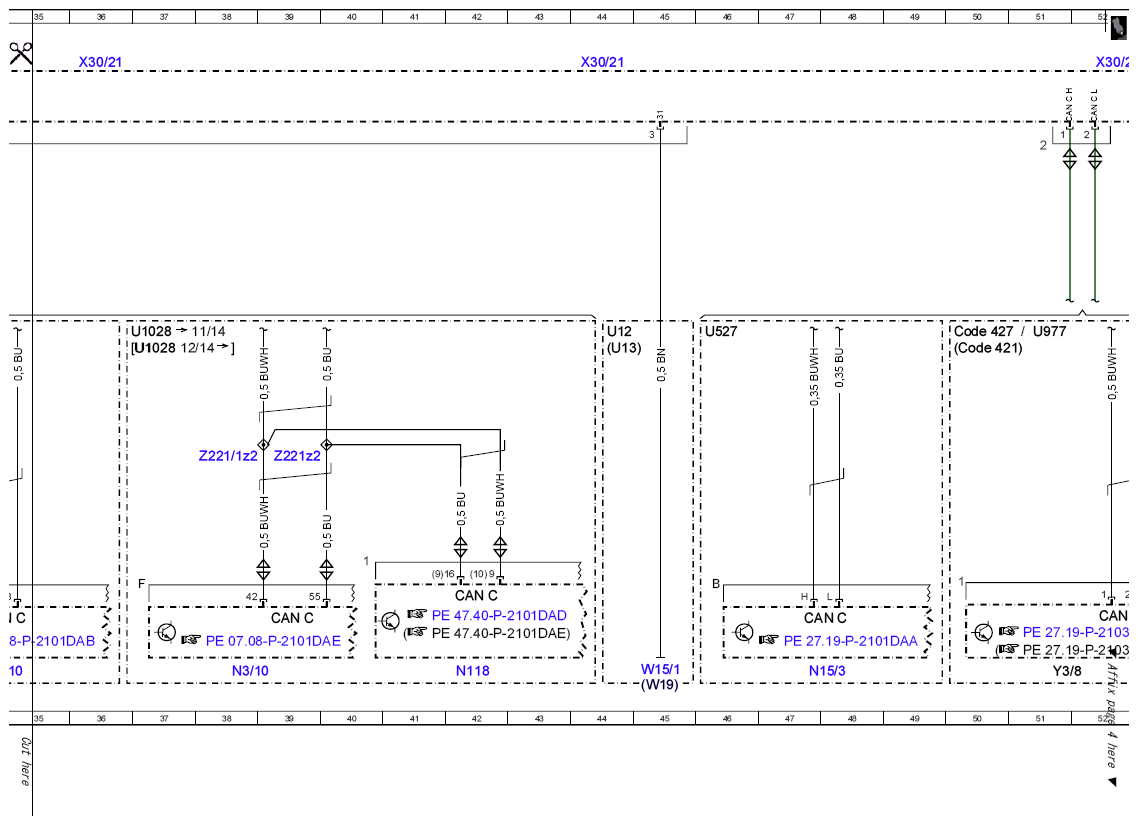

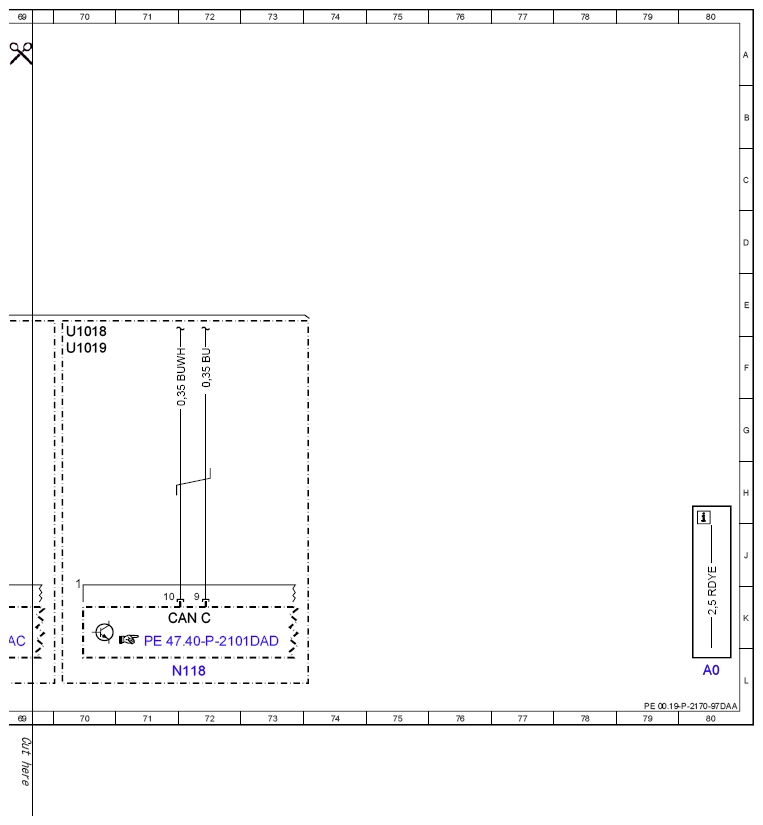

Wiring diagram of drive train CAN - PE00.19-P-2170-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 Potential distributor X30/21, sheet 1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 80L |
| CAN C | Drive train CAN | 3K |
| CAN C | Drive train CAN | 11K |
| CAN C | Drive train CAN | 27K |
| CAN C | Drive train CAN | 14K |
| CAN C | Drive train CAN | 18K |
| CAN C | Drive train CAN | 22K |
| CAN C | Drive train CAN | 34K |
| CAN C | Drive train CAN | 39K |
| CAN C | Drive train CAN | 67K |
| CAN C | Drive train CAN | 42K |
| CAN C | Drive train CAN | 47K |
| CAN C | Drive train CAN | 52K |
| CAN C | Drive train CAN | 59K |
| CAN C | Drive train CAN | 63K |
| CAN C | Drive train CAN | 72K |
| CAN C | Drive train CAN | 55K |
| CAN C | Drive train CAN | 30K |
| CAN C | Drive train CAN | 8K |
| Code 421 | 9-speed automatic transmission | 50F |
| Code 427 | 7-speed automatic transmission | 50F |
| N118 | Fuel pump control unit | 67L |
| N118 | Fuel pump control unit | 42L |
| N118 | Fuel pump control unit | 59L |
| N118 | Fuel pump control unit | 63L |
| N118 | Fuel pump control unit | 72L |
| N15/3 | Electronic transmission control unit | 47L |
| N3/10 | ME-SFI [ME] control unit | 15L |
| N3/10 | ME-SFI [ME] control unit | 18L |
| N3/10 | ME-SFI [ME] control unit | 22L |
| N3/10 | ME-SFI [ME] control unit | 26L |
| N3/10 | ME-SFI [ME] control unit | 34L |
| N3/10 | ME-SFI [ME] control unit | 38L |
| N3/10 | ME-SFI [ME] control unit | 30L |
| N3/9 | CDI control unit | 3L |
| N3/9 | CDI control unit | 11L |
| N3/9 | CDI control unit | 7L |
| U1018 | Valid for gasoline engine 276 | 70F |
| U1018 | Valid for gasoline engine 276 | 29F |
| U1019 | Valid for gasoline engine 278 | 24F |
| U1019 | Valid for gasoline engine 278 | 70F |
| U1027 | Valid for gasoline engine 271 continuous fuel injection system (electronic) | 21F |
| U1028 | Valid for engine 157 | 36F |
| U1028 | Valid for engine 157 | 37F |
| U12 | Valid for left-hand drive vehicles | 44F |
| U127 | Valid for combustion engines 272 and 273 KE | 13F |
| U127 | Valid for combustion engines 272 and 273 KE | 58F |
| U13 | Valid for right-hand drive vehicles | 44F |
| U152 | Valid for gasoline engine 156 | 17F |
| U152 | Valid for gasoline engine 156 | 62F |
| U157 | Valid for combustion engine 272 DE | 24F |
| U157 | Valid for combustion engine 272 DE | 58F |
| U243 | Valid for diesel engine 651 with all-wheel drive | 1F |
| U244 | Valid for BlueTEC | 6F |
| U244 | Valid for BlueTEC | 6F |
| U249 | Valid for diesel engine 651 without all-wheel drive | 1F |
| U249 | Valid for diesel engine 651 without all-wheel drive | 5F |
| U362 | Valid for gasoline engine 274 | 29F |
| U391 | Valid for gasoline engine 276.8 | 29F |
| U392 | Valid for gasoline engine 276 except gasoline engine 276.8 | 25F |
| U527 | Valid for electronic transmission control | 46F |
| U561 | Valid for Delphi system | 6F |
| U562 | Valid for Bosch system | 6F |
| U739 | Valid for gasoline engine 271 DE | 33F |
| U739 | Valid for gasoline engine 271 DE | 58F |
| U880 | Valid for diesel engine 642 | 9F |
| U880 | Valid for diesel engine 642 | 66F |
| U948 | Valid for diesel engine 651 | 66F |
| U948 | Valid for diesel engine 651 | 5F |
| U948 | Valid for diesel engine 651 | 5F |
| U968 | Valid for mild hybrid drive | 29F |
| U968 | Valid for mild hybrid drive | 54F |
| U968 | Valid for mild hybrid drive | 6F |
| U977 | Not valid for mild hybrid drive | 2F |
| U977 | Not valid for mild hybrid drive | 25F |
| U977 | Not valid for mild hybrid drive | 51F |
| W15/1 | Right footwell ground point | 45L |
| W19 | Right front seat crossmember ground point | 45L |
| X30/21 | Drive train CAN voltage distributor electrical connector | 20A |
| X30/21 | Drive train CAN voltage distributor electrical connector | 28A |
| X30/21 | Drive train CAN voltage distributor electrical connector | 36A |
| X30/21 | Drive train CAN voltage distributor electrical connector | 60A |
| X30/21 | Drive train CAN voltage distributor electrical connector | 44A |
| X30/21 | Drive train CAN voltage distributor electrical connector | 52A |
| Y3/8 | Fully integrated transmission control unit | 55L |
| Y3/8 | Fully integrated transmission control unit | 51L |
| Z221/1z2 | Drive train CAN "high" potential distributor connector sleeve | 38G |
| Z221z2 | Drive train CAN "low" potential distributor connector sleeve | 39G |
