Wiring diagram for common rail diesel injection (CDI) control unit - PE07.16-P-2101-97DAE

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 651 up to 5/31/10 in MODEL 212 (except 212.08/09/28/29) except CODE U42 (BlueTEC diesel exhaust treatment (SCR)) Control unit N3/9, vehicle connector

Code: Designation: Position:
A0 Color code key 80L
B19/9 Temperature sensor upstream of diesel particulate filter 63L
B28/8 Differential pressure sensor (DPF) 65L
B37 Accelerator pedal sensor 57L
B79/2 Transmission neutral position sensor 68L
CAN C Drive train CAN 10K
CAN E Chassis CAN 14K
Code 474 Diesel particulate filter 61F
F32 Front electrical prefuse box 52L
F32f153 Prefuse 153 51K
G3/2 Oxygen sensor upstream of catalytic converter 17L
G3/2x1 Electrical connector for oxygen sensor upstream of catalytic converter 16J
M1 Starter 45L
M4/7 Combustion engine and air conditioning with integrated control fan motor 55L
N10/1 Front SAM control unit with fuse and relay module 21L
N10/1 Front SAM control unit with fuse and relay module 27L
N10/1 Front SAM control unit with fuse and relay module 33L
N10/1 Front SAM control unit with fuse and relay module 38L
N10/1f22 Fuse 22 24L
N10/1f22 Fuse 22 36L
N10/1f23 Fuse 23 26L
N10/1f23 Fuse 23 35L
N10/1f24 Fuse 24 37L
N10/1f27 Fuse 27 23L
N10/1f6 Fuse 6 20L
N10/1f7 Fuse 7 33L
N10/2 Rear SAM control unit with fuse and relay module 7L
N118 Fuel pump control unit 3L
N2/10 Supplemental restraint system control unit 48L
N3/9 CDI control unit 5A
N3/9 CDI control unit 12A
N3/9 CDI control unit 20A
N3/9 CDI control unit 28A
N3/9 CDI control unit 36A
N3/9 CDI control unit 44A
N3/9 CDI control unit 52A
N3/9 CDI control unit 60A
N3/9 CDI control unit 69A
S40/3 Clutch pedal switch 60L
S40/5 Start enable clutch pedal switch 70L
U12 Valid for left-hand drive vehicles 60F
U13 Valid for right-hand drive vehicles 60G
U24 Valid for manual transmission 59E
U24 Valid for manual transmission 66E
U245 Valid for fuel system control unit 1F
U246 Valid without fuel system control unit 5F
U252 Valid for ECO start/stop function 66E
W15/1 Right footwell ground point 60H
W15/2 Left footwell ground point 60H
W15/2 Left footwell ground point 70H
W16/6 Right major assembly compartment ground point 16E
W9 Left front ground point (at lamp unit) 55H
X220 New Manual Transmission zero position sensor electrical connector 67H
X25/2 Engine compartment/interior electrical connector 55E
X26 Interior and engine wiring harness electrical connector 41H
X26 Interior and engine wiring harness electrical connector 62H
X30/21 Drive train CAN voltage distributor electrical connector 11L
X30/30 Vehicle floor chassis CAN voltage distributor electrical connector 14L
Y84 Radiator shutters actuator 39L
Z51/19 Engine management crash signal connector sleeve 48E
Z6/8 Sensor ground connector sleeve 64E
Z7/35 Circuit 87 M1e connector sleeve 25E
Z7/36 Circuit 87 M2e connector sleeve 65E

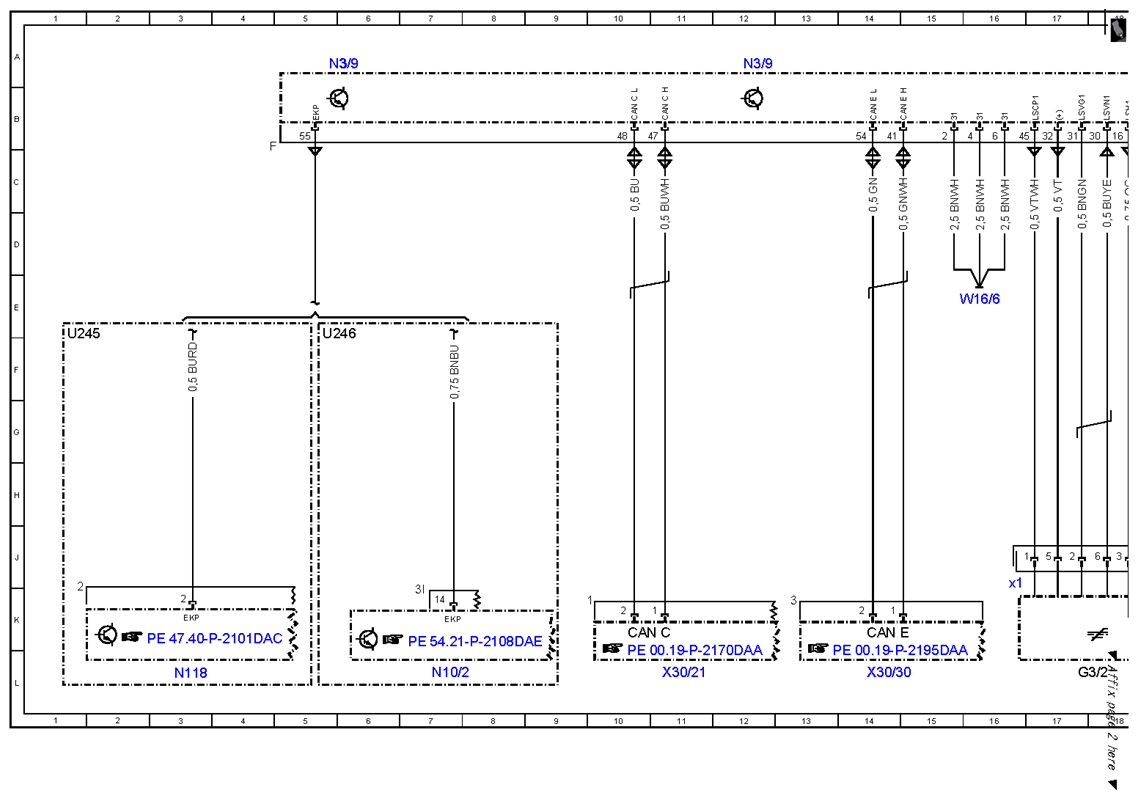

Fig 1: Common Rail Diesel Injection (CDI) Control Unit - Circuit Diagram (1 Of 5)
G10054335Courtesy of MERCEDES-BENZ USA

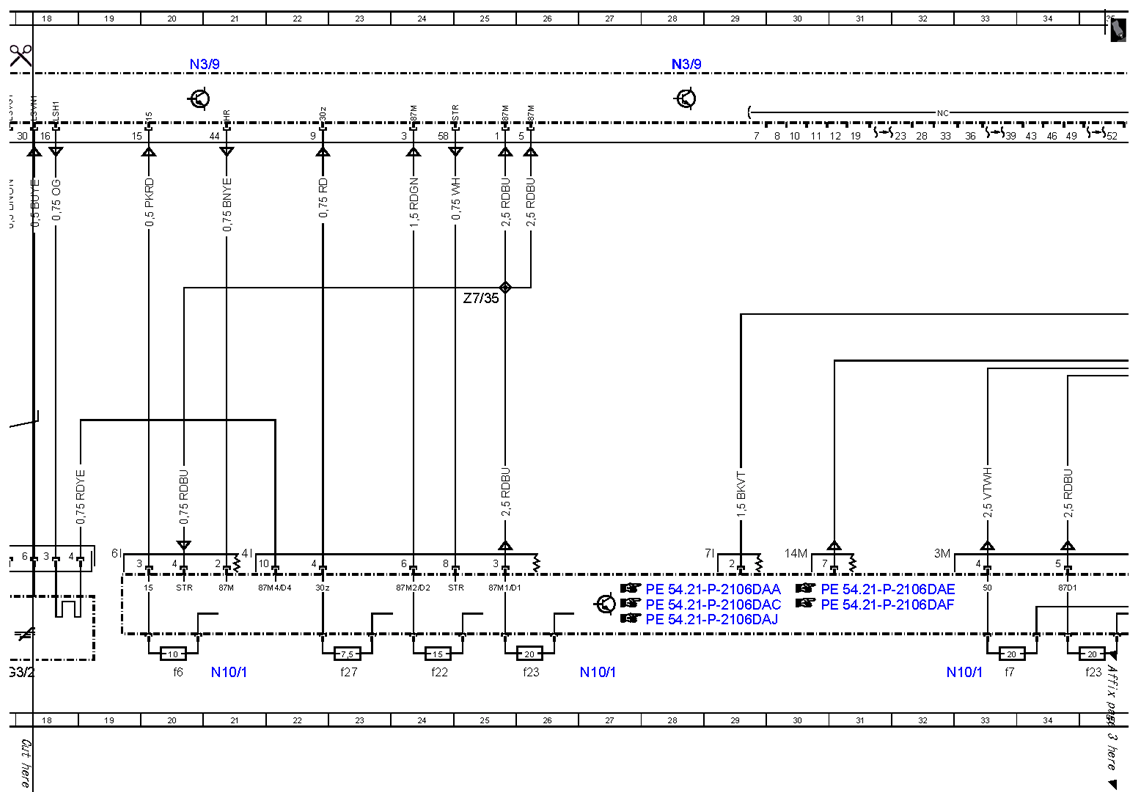

Fig 2: Common Rail Diesel Injection (CDI) Control Unit - Circuit Diagram (2 Of 5)
G10054336Courtesy of MERCEDES-BENZ USA

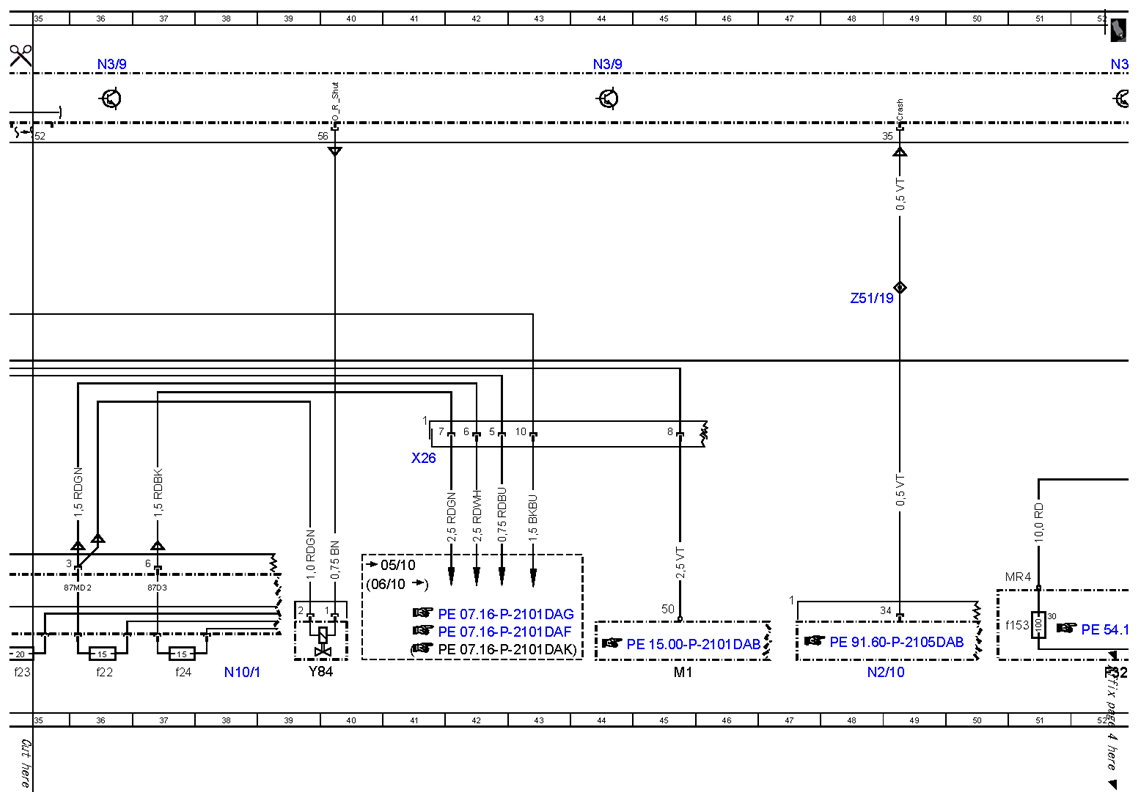

Fig 3: Common Rail Diesel Injection (CDI) Control Unit - Circuit Diagram (3 Of 5)
G10054337Courtesy of MERCEDES-BENZ USA

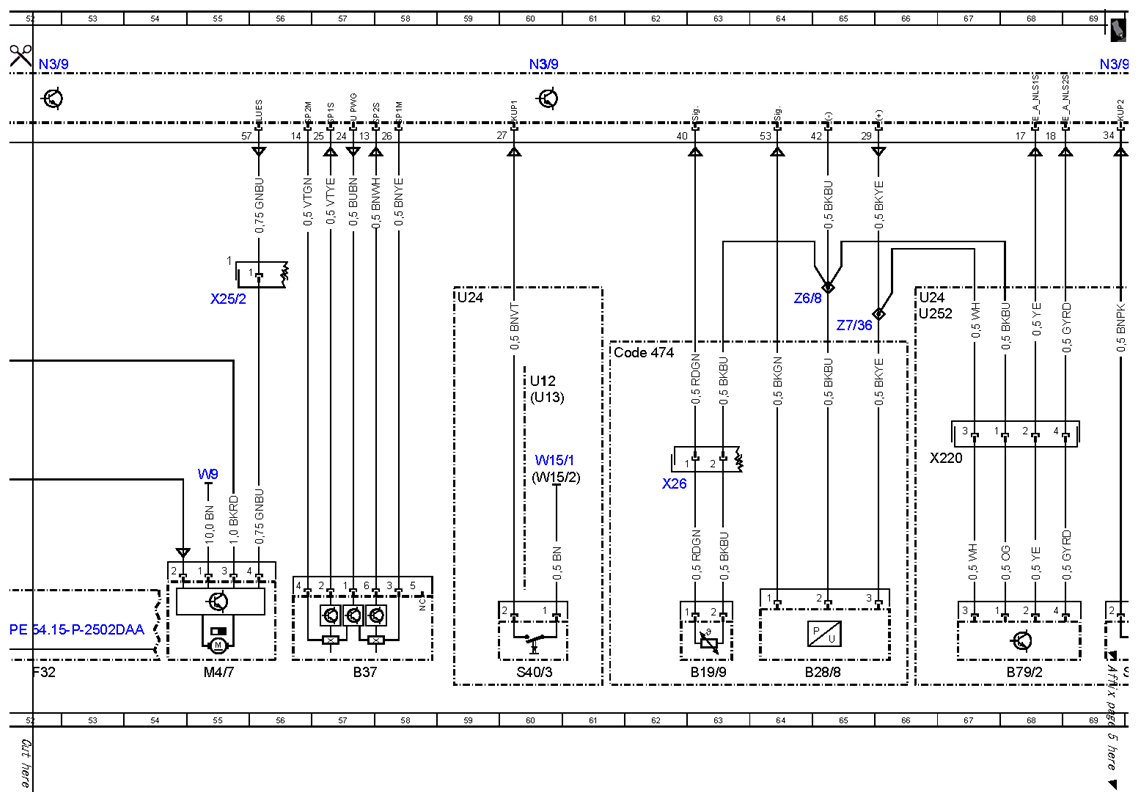

Fig 4: Common Rail Diesel Injection (CDI) Control Unit - Circuit Diagram (4 Of 5)
G10054338Courtesy of MERCEDES-BENZ USA

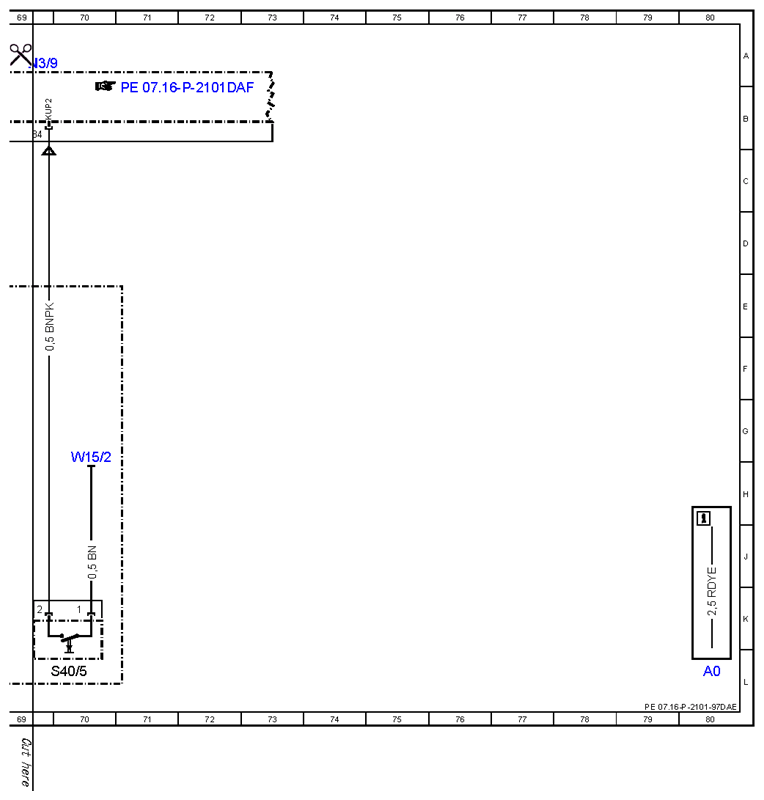

Fig 5: Common Rail Diesel Injection (CDI) Control Unit - Circuit Diagram (5 Of 5)
G10054339Courtesy of MERCEDES-BENZ USA
