Component description for yaw rate sensor for lateral and longitudinal acceleration - GF42.45-P-4810FL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212

Location

The yaw rate sensor for lateral and longitudinal acceleration is underneath the front passenger seat on the vehicle floor.

Shown on model 212.0

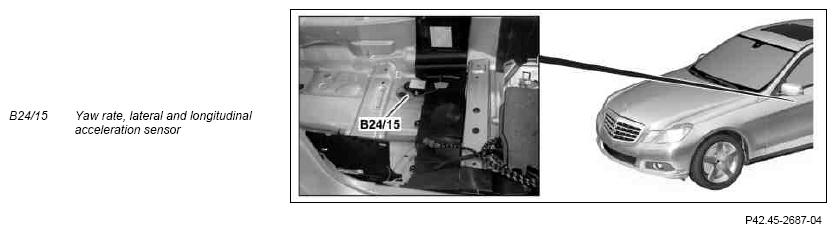

Fig 1: Yaw Rate, Lateral And Longitudinal Acceleration Sensor

Courtesy of MERCEDES-BENZ USA

Task

The yaw rate, lateral and longitudinal acceleration sensor measures the rotational speed about the vertical axis.

The integrated lateral acceleration sensor (AY sensor) measures the lateral acceleration.

The integrated longitudinal acceleration sensor (Ax sensor) detects longitudinal inclination.

The respective signals are read in via the vehicle dynamics CAN (CAN H) by the Electronic Stability Program control unit (N30/4) (except code (233) DISTRONIC PLUS, except code (990) AMG vehicles, except hybrid) or by the Premium Electronic Stability Program control unit (N30/7) (with code (233) DISTRONIC PLUS or with code (990) AMG vehicles, except hybrid) or by the regenerative braking system control unit (N30/6) (with hybrid).
