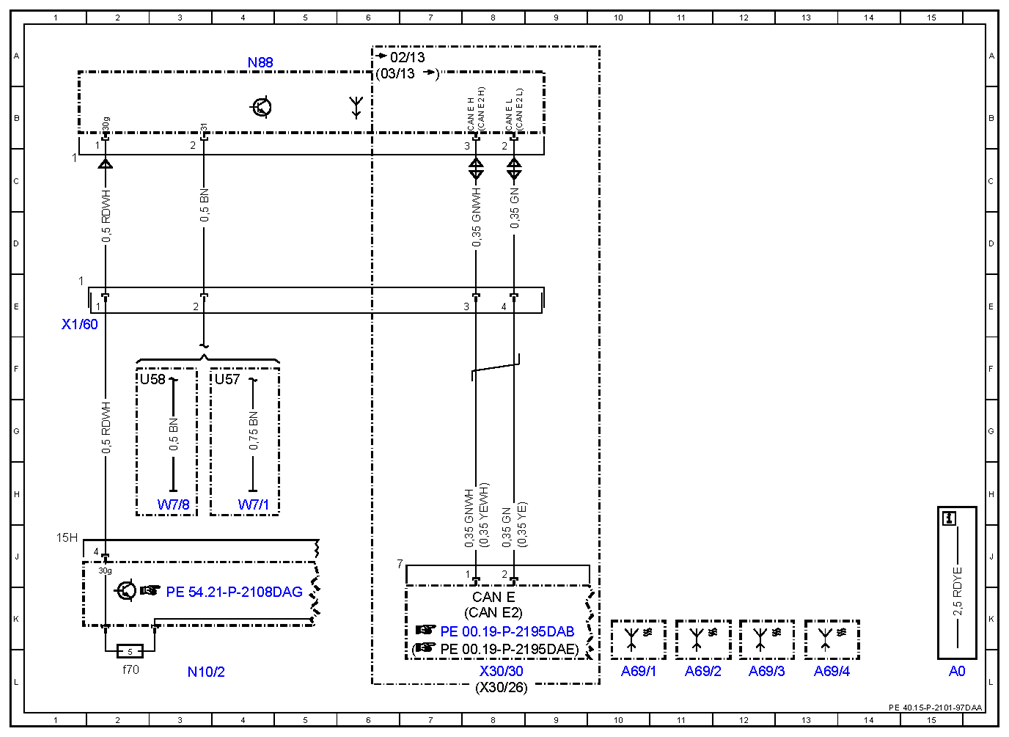

Wiring diagram for tire pressure monitor control unit - PE40.15-P-2101-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE 475 (Tire pressure monitoring system) Control unit N88
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A69/1 | Left front tire pressure sensor | 10L |
| A69/2 | Right front tire pressure sensor | 11L |
| A69/3 | Left rear tire pressure sensor | 12L |
| A69/4 | Right rear tire pressure sensor | 13L |
| CAN E | Chassis CAN | 8K |
| CAN E2 | Chassis CAN 2 | 8K |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2f70 | Fuse 70 | 2L |
| N88 | Tire pressure monitor control unit | 4A |
| U57 | Valid for model 212.2 | 4F |
| U58 | Valid for model 212.0/1 | 2F |
| W7/1 | Right taillamp trunk ground point | 4H |
| W7/8 | Right wheelhouse trunk ground point | 3H |
| X1/60 | Tire pressure monitor electrical connector | 1E |
| X30/26 | Vehicle floor chassis CAN 2 (CAN E2) potential distributor electrical connector | 8L |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 8L |
