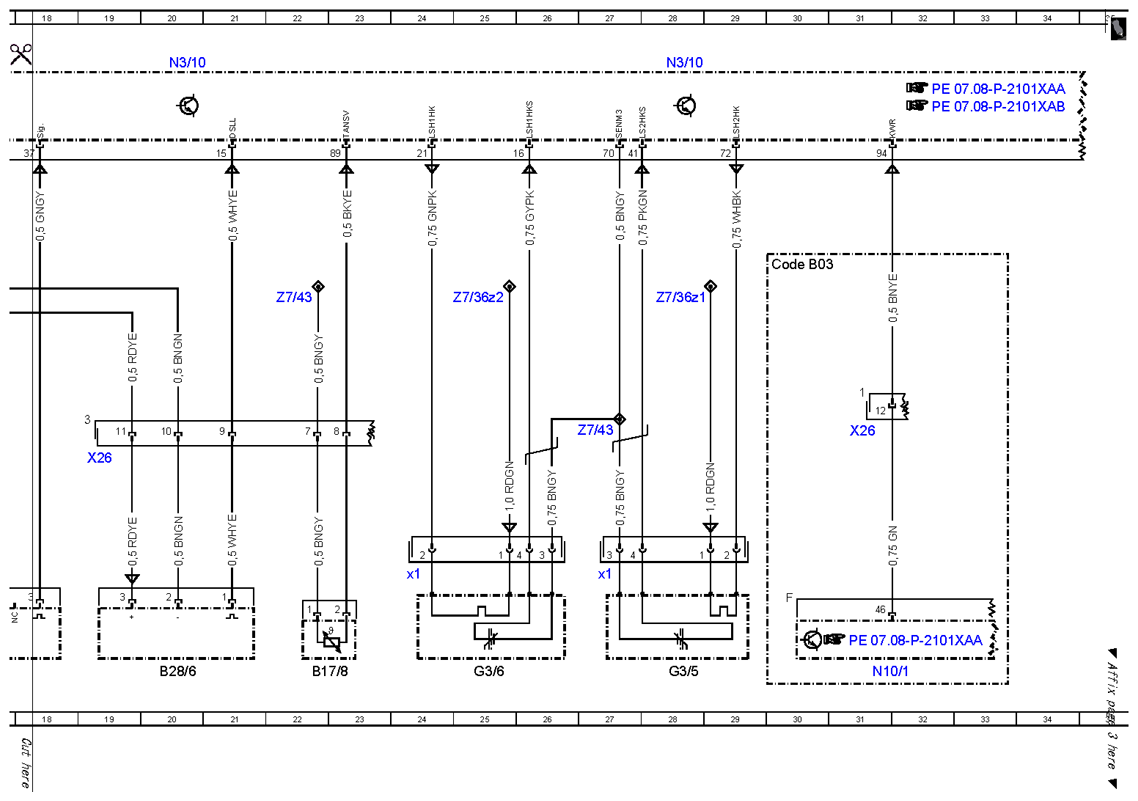

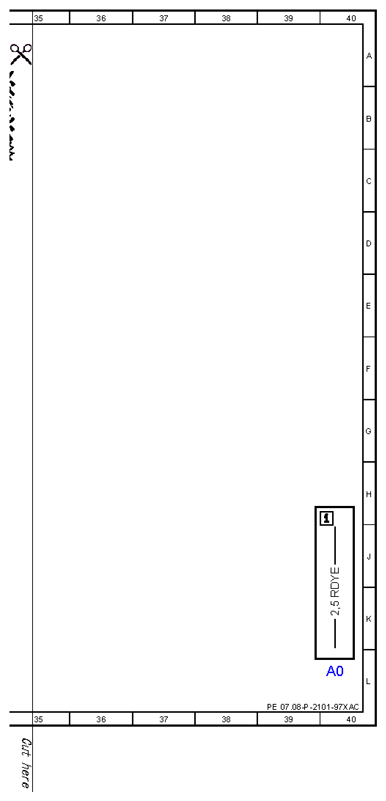

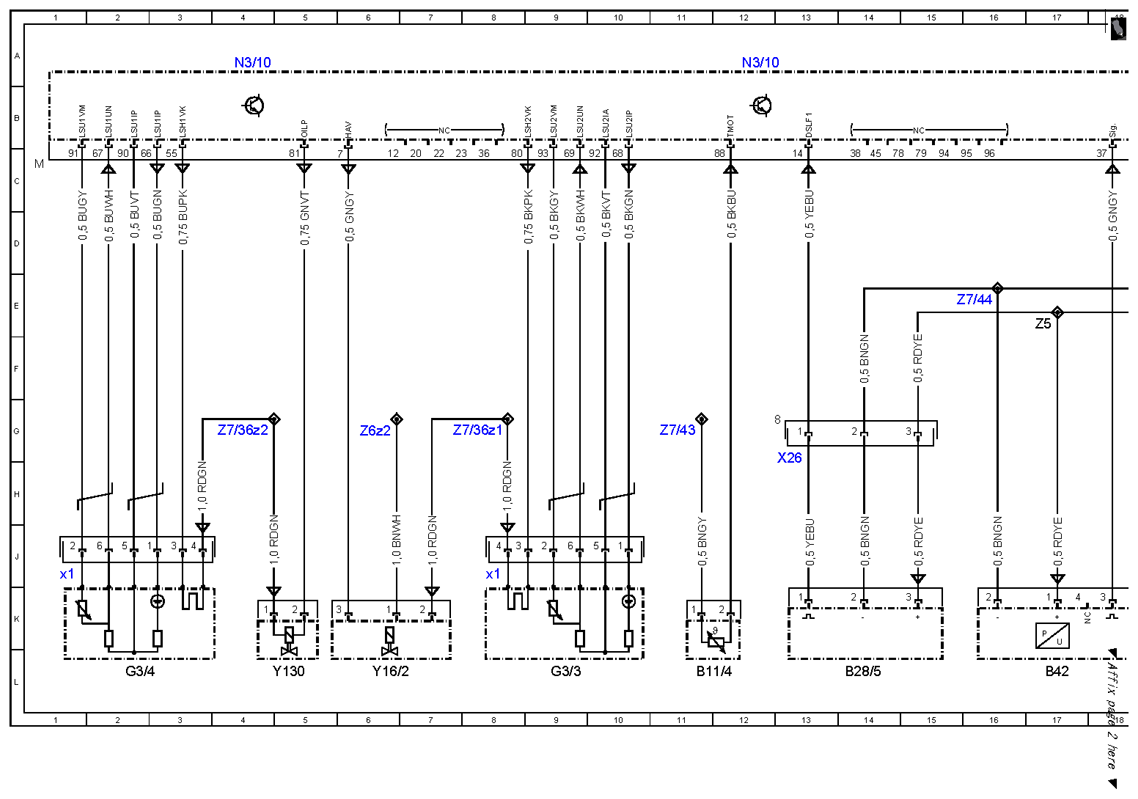

| A0 |
Color code key |
40L |
| B11/4 |
Coolant temperature sensor |
11L |
| B17/8 |
Charge air temperature sensor |
22L |
| B28/5 |
Pressure sensor downstream of air filter |
14L |
| B28/6 |
Pressure sensor upstream of throttle valve |
20L |
| B42 |
Engine oil pressure sensor |
17L |
| Code B03 |
ECO start/stop function |
30D |
| G3/3 |
Left oxygen sensor upstream of catalytic converter |
9L |
| G3/3x1 |
Electrical connector for left oxygen sensor upstream of catalytic converter |
8J |
| G3/4 |
Right oxygen sensor upstream of catalytic converter |
2L |
| G3/4x1 |
Electrical connector for right oxygen sensor upstream of catalytic converter |
1J |
| G3/5 |
Left oxygen sensor downstream of catalytic converter |
28L |
| G3/5x1 |
Electrical connector for left oxygen sensor downstream of catalytic converter |
27J |
| G3/6 |
Right oxygen sensor downstream of catalytic converter |
25L |
| G3/6x1 |
Electrical connector for right oxygen sensor downstream of catalytic converter |
24J |
| N10/1 |
Front SAM control unit with fuse and relay module |
31L |
| N3/10 |
ME-SFI [ME] control unit |
4A |
| N3/10 |
ME-SFI [ME] control unit |
12A |
| N3/10 |
ME-SFI [ME] control unit |
20A |
| N3/10 |
ME-SFI [ME] control unit |
28A |
| X26 |
Interior and engine wiring harness electrical connector |
13H |
| X26 |
Interior and engine wiring harness electrical connector |
19H |
| X26 |
Interior and engine wiring harness electrical connector |
31G |
| Y130 |
Engine oil pump valve |
5L |
| Y16/2 |
Heating system shutoff valve |
6L |
| Z5 |
Connector sleeve in wiring harness |
17E |
| Z6z2 |
Circuit 31 connector sleeve |
6G |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
8G |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
28E |
| Z7/36z2 |
Circuit 87 M2e connector sleeve |
4G |
| Z7/36z2 |
Circuit 87 M2e connector sleeve |
25E |
| Z7/43 |
Sensor ground connector sleeve |
11G |
| Z7/43 |
Sensor ground connector sleeve |
27G |
| Z7/43 |
Sensor ground connector sleeve |
22E |
| Z7/44 |
Sensor ground connector sleeve |
16E |
