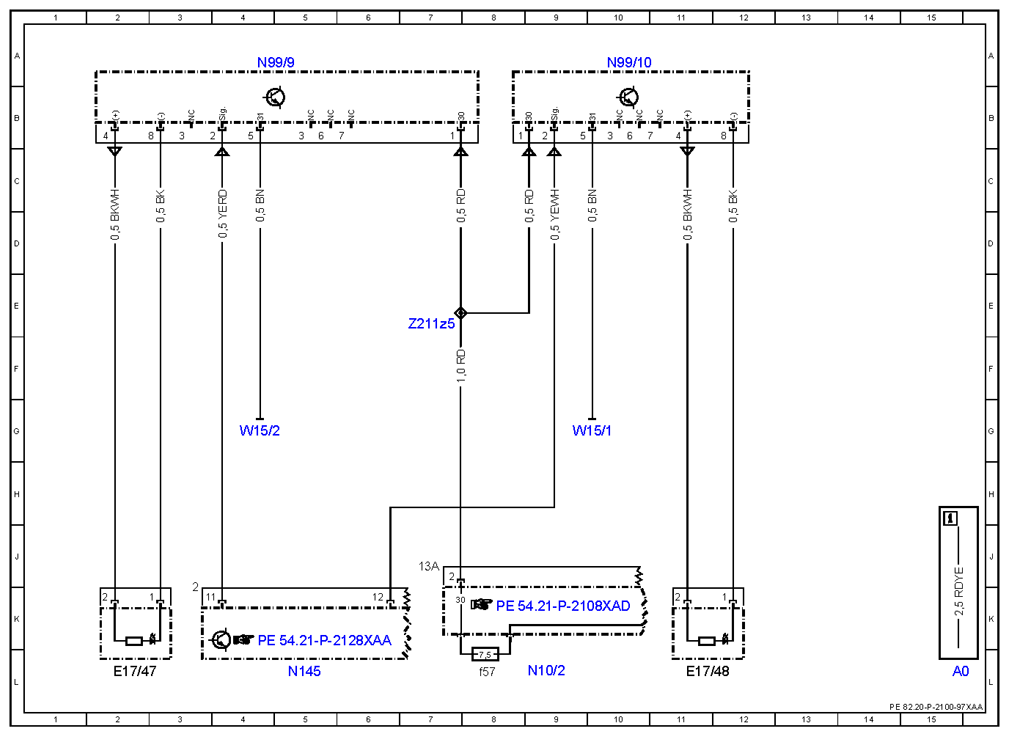

Wiring diagram of entrance/exit lamps - PE82.20-P-2100-97XAA
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| E17/47 | Left front illuminated door sill molding | 2L |
| E17/48 | Right front illuminated door sill molding | 11L |
| N10/2 | Rear SAM control unit with fuse and relay module | 9L |
| N10/2f57 | Fuse 57 | 8L |
| N145 | Transmission mode control unit | 5L |
| N99/10 | Right front illuminated door sill molding voltage converter | 10A |
| N99/9 | Left front illuminated door sill molding voltage converter | 4A |
| W15/1 | Right footwell ground point | 9G |
| W15/2 | Left footwell ground point | 4G |
| Z211z5 | Z211z5 | 7E |
