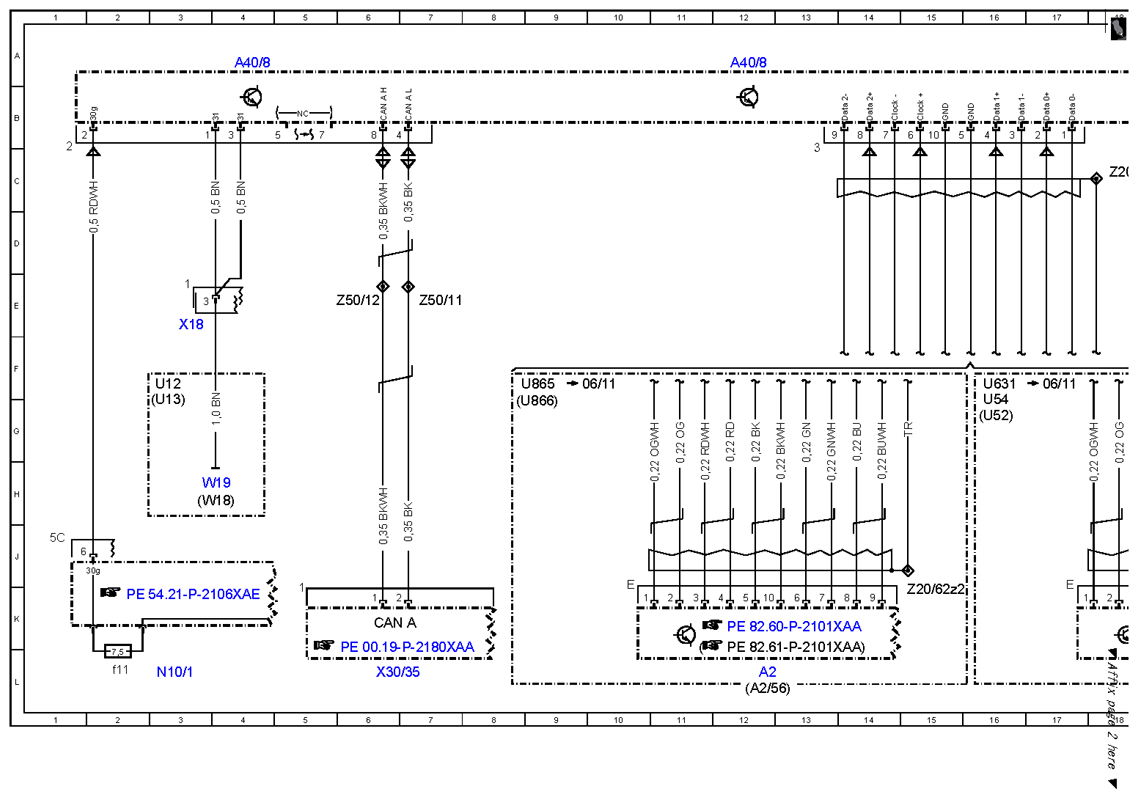

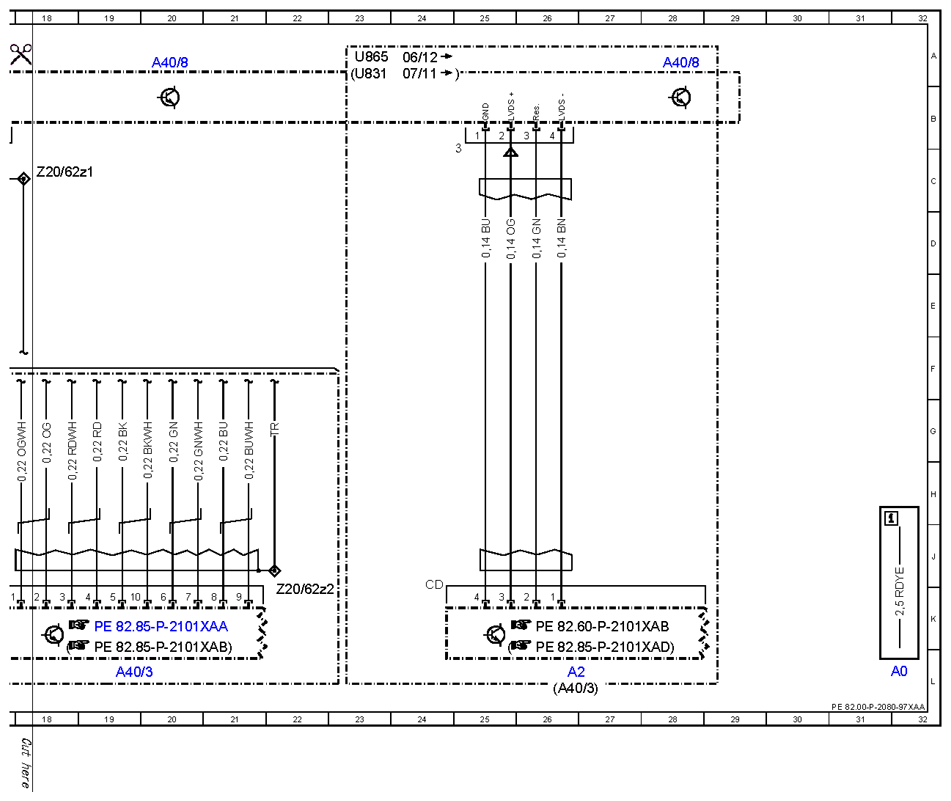

| A0 |
Color code key |
32L |
| A2 |
Radio |
12L |
| A2 |
Radio |
26L |
| A2/56 |
Radio with auto pilot system |
12L |
| A40/3 |
COMAND control unit |
19L |
| A40/3 |
COMAND control unit |
26L |
| A40/8 |
Audio/COMAND display |
12A |
| A40/8 |
Audio/COMAND display |
4A |
| A40/8 |
Audio/COMAND display |
20A |
| A40/8 |
Audio/COMAND display |
28A |
| CAN A |
Telematics CAN |
6K |
| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| N10/1f11 |
Fuse 11 |
|
| U12 |
Valid for left-hand drive vehicles |
3F |
| U13 |
Valid for right-hand drive vehicles |
3G |
| U52 |
Valid for Japan |
16G |
| U54 |
Valid for all except Japan |
16G |
| U631 |
Valid for COMAND |
16F |
| U831 |
Valid for NECK-PRO head restraint |
23A |
| U865 |
Valid for Audio 20 |
8F |
| U865 |
Valid for Audio 20 |
23A |
| U866 |
Valid for Audio 50 |
8G |
| W18 |
Left front seat crossmember ground point |
3H |
| W19 |
Right front seat crossmember ground point |
3H |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
3E |
| X30/35 |
Telematics CAN voltage distributor electrical connector |
6L |
| Z20/62z1 |
Shielding connector sleeve |
18C |
| Z20/62z2 |
Shielding connector sleeve |
15K |
| Z20/62z2 |
Shielding connector sleeve |
22K |
| Z50/11 |
CAN bus low cockpit connector sleeve |
7E |
| Z50/12 |
CAN bus high cockpit connector sleeve |
6E |
