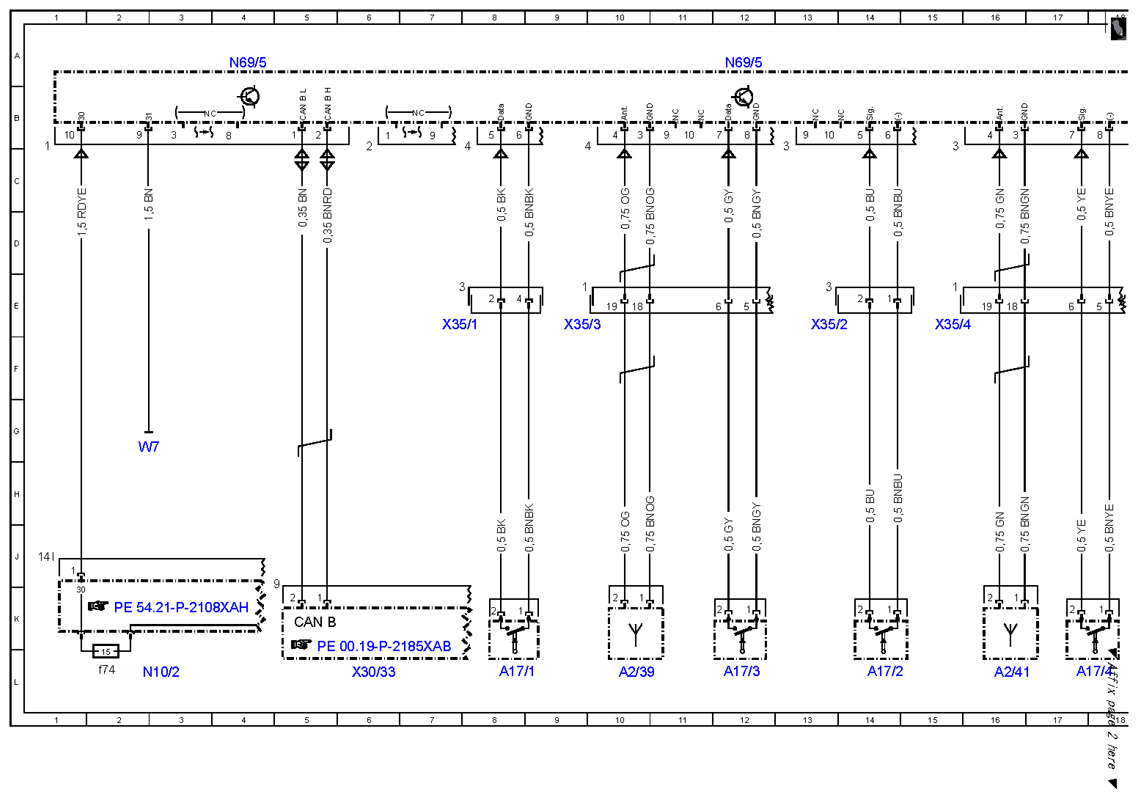

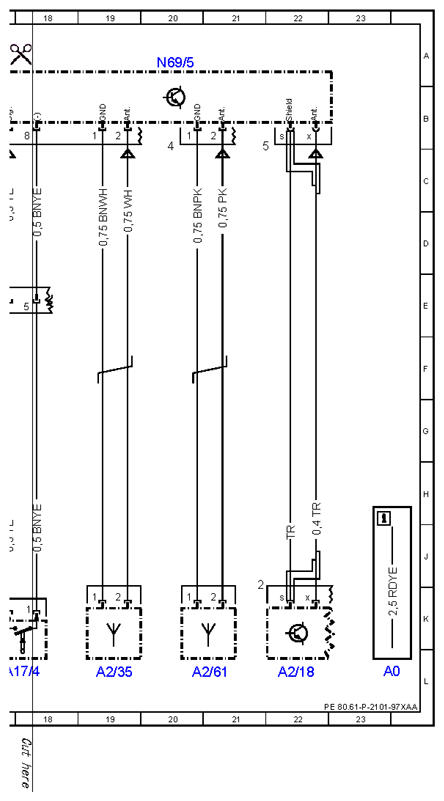

| A0 |
Color code key |
23L |
| A17/1 |
Left front KEYLESS GO door handle |
8L |
| A17/2 |
Right front KEYLESS GO door handle |
14L |
| A17/3 |
Left rear KEYLESS GO door handle |
12L |
| A17/4 |
Right rear KEYLESS GO door handle |
17L |
| A2/18 |
FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier |
22L |
| A2/35 |
Trunk KEYLESS GO antenna |
19L |
| A2/39 |
Left rear door KEYLESS GO antenna |
10L |
| A2/41 |
Right rear door KEYLESS GO antenna |
16L |
| A2/61 |
Interior KEYLESS GO antenna |
20L |
| CAN B |
Interior CAN |
5K |
| N10/2 |
Rear SAM control unit with fuse and relay module |
3L |
| N10/2f74 |
Fuse 74 |
2L |
| N69/5 |
KEYLESS-GO control unit |
4A |
| N69/5 |
KEYLESS-GO control unit |
12A |
| N69/5 |
KEYLESS-GO control unit |
20A |
| W7 |
Right rear wheel well ground point |
2G |
| X30/33 |
Right vehicle floor interior CAN voltage distributor electrical connector |
6L |
| X35/1 |
Left front door electrical connector |
7E |
| X35/2 |
Right front door electrical connector |
13E |
| X35/3 |
Left rear door electrical connector |
9E |
| X35/4 |
Right rear door electrical connector |
15E |
