| 1 |
Circuit 15, status |
11G |
| 10 |
Blind Spot Assist warning lamp, actuation |
30G |
| 11 |
Instrument cluster message, request |
14B |
| 11 |
Instrument cluster message, request |
15D |
| 12 |
Combination switch, status |
3B |
| 12 |
Combination switch, status |
8G |
| 13 |
Warning tone, request |
14B |
| 13 |
Warning tone, request |
15D |
| 14 |
Gear range, status |
18K |
| 14 |
Gear range, status |
18E |
| 15 |
Reverse gear, status |
8D |
| 15 |
Reverse gear, status |
12E |
| 2 |
Blind spot assist, status |
17C |
| 2 |
Blind spot assist, status |
11E |
| 2 |
Blind spot assist, status |
8E |
| 3 |
Engine running, signal |
17E |
| 3 |
Engine running, signal |
11E |
| 3 |
Engine running, signal |
8E |
| 4 |
Drivetrain operational, signal |
11D |
| 4 |
Drivetrain operational, signal |
17F |
| 4 |
Drivetrain operational, signal |
8D |
| 5 |
Wheel rotation direction, signal |
9G |
| 6 |
Wheel speed, signal |
9G |
| 7 |
Trailer recognition, status |
19E |
| 7 |
Trailer recognition, status |
8D |
| 7 |
Trailer recognition, status |
12E |
| 8 |
Blind Spot Assist warning output, request |
10F |
| 9 |
Blind spot assist warning lamp, request |
16D |
| 9 |
Blind spot assist warning lamp, request |
27D |
| A1 |
Instrument cluster |
12A |
| A1h1 |
Warning buzzer |
13A |
| A1p13 |
Multifunction display |
10A |
| B29/4 |

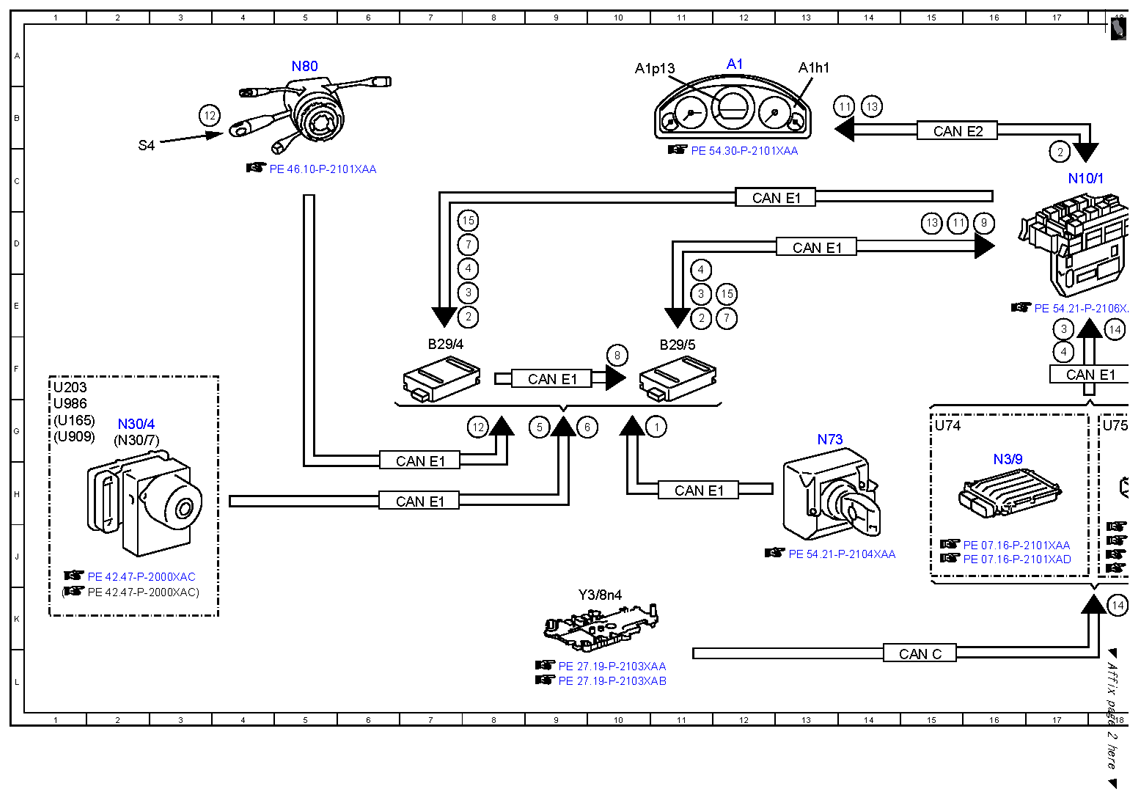

Left rear bumper intelligent radar sensor |
7F |
| B29/5 |
Right rear bumper intelligent radar sensor |
11F |
| CAN B |
Interior CAN |
21D |
| CAN B |
Interior CAN |
21E |
| CAN C |
Drive train CAN |
15L |
| CAN E1 |
Chassis CAN 1 |
13D |
| CAN E1 |
Chassis CAN 1 |
12C |
| CAN E1 |
Chassis CAN 1 |
7H |
| CAN E1 |
Chassis CAN 1 |
7H |
| CAN E1 |
Chassis CAN 1 |
17F |
| CAN E1 |
Chassis CAN 1 |
9F |
| CAN E1 |
Chassis CAN 1 |
11H |
| CAN E2 |
Chassis CAN 2 |
15B |
| Code 550 |
Trailer hitch |
22F |
| M21/1 |
Left outside mirror |
27G |
| M21/1e2 |
Left Blind Spot Assist warning lamp |
30G |
| M21/2 |
Right outside mirror |
27H |
| M21/2e2 |
Right Blind Spot Assist warning lamp |
29H |
| N10/1 |
Front SAM control unit with fuse and relay module |
17C |
| N28/1 |

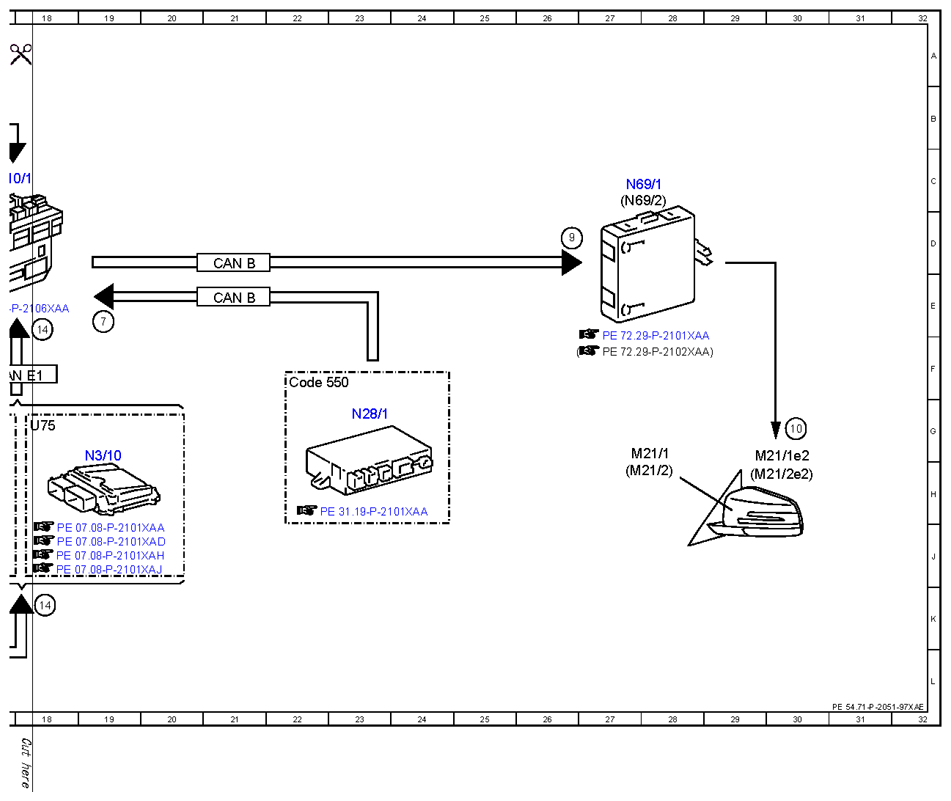

Trailer recognition control unit |
23G |
| N3/10 |
ME-SFI [ME] control unit |
19G |
| N3/9 |
CDI control unit |
16H |
| N30/4 |
Electronic Stability Program control unit |
2G |
| N30/7 |
Premium Electronic Stability Program control unit |
2G |
| N69/1 |
Left front door control unit |
27C |
| N69/2 |
Right front door control unit |
27C |
| N73 |
Electronic ignition switch control unit |
13G |
| N80 |
Steering column module control unit |
5A |
| S4 |
Combination switch |
2C |
| U165 |
Valid for AMG |
1G |
| U203 |
Valid without DISTRONIC PLUS |
1F |
| U74 |
Valid for diesel engines |
15G |
| U75 |
Valid for gasoline engines |
18G |
| U909 |
Valid for DISTRONIC PLUS |
1G |
| U986 |
Not valid for AMG |
1G |
| Y3/8n4 |
Fully integrated transmission control unit |
10K |
