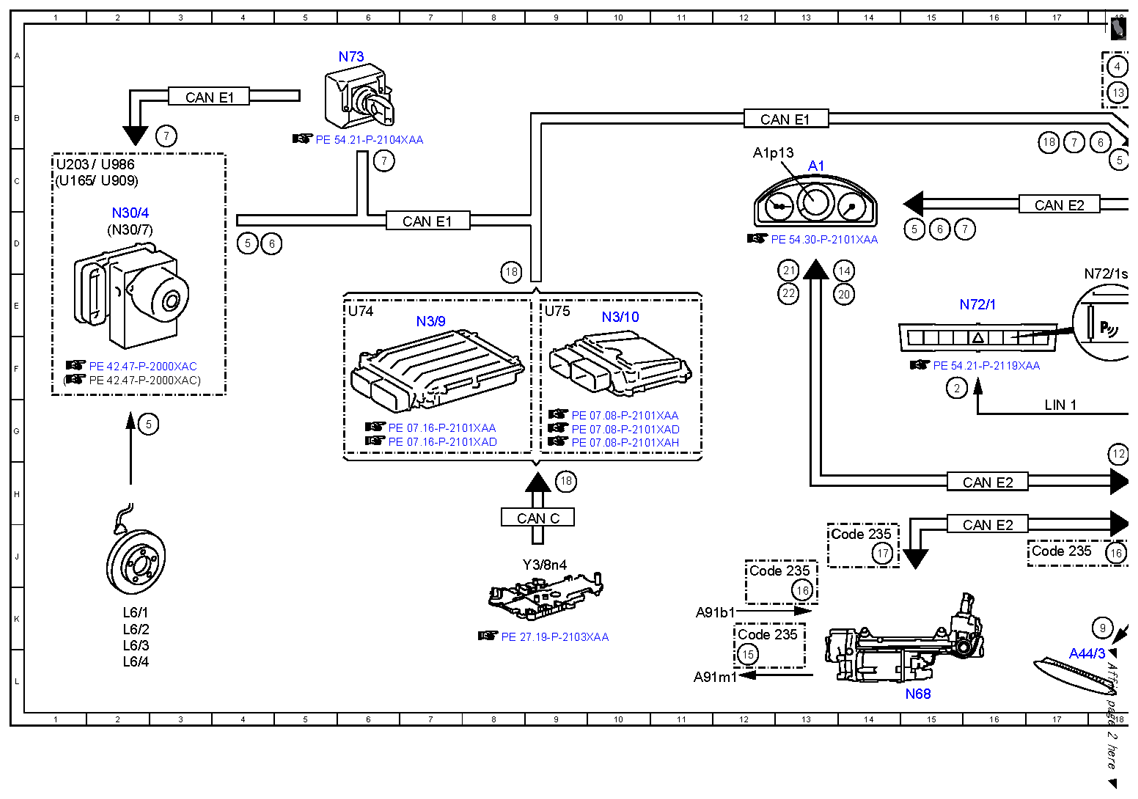

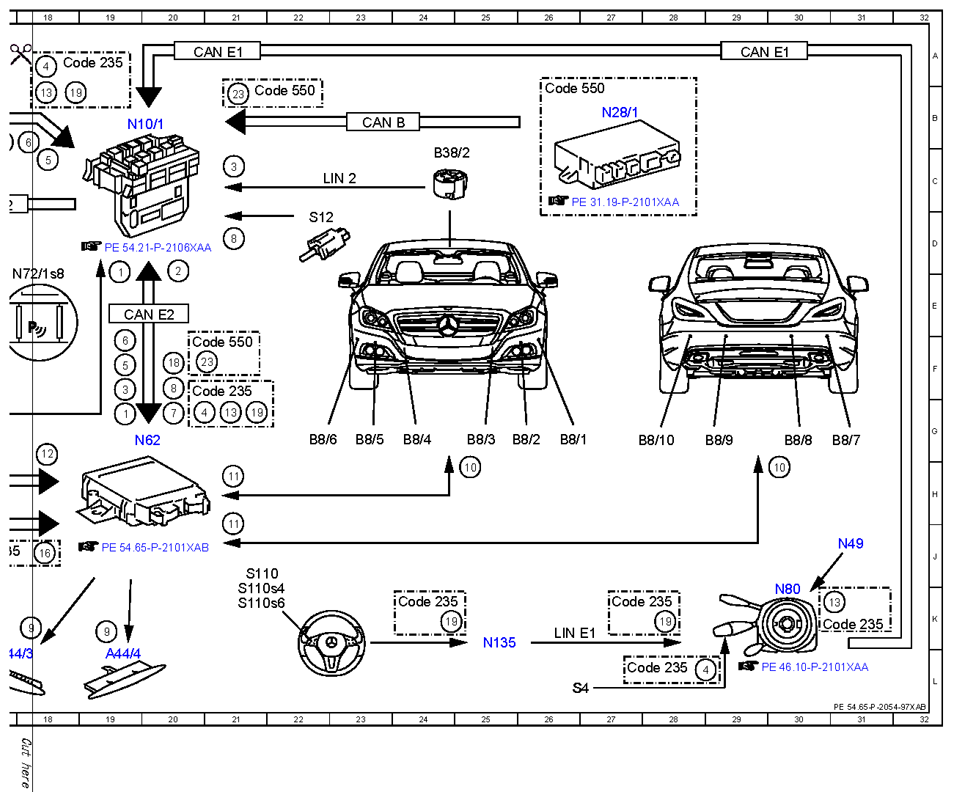

| 1 |
Parking system button, status |
19G |
| 1 |
Parking system button, status |
19E |
| 10 |
Parking system distance sensors, actuation |
25H |
| 10 |
Parking system distance sensors, actuation |
30H |
| 11 |
Parking system distance sensors, signal |
21H |
| 11 |
Parking system distance sensors, signal |
21J |
| 12 |
Vehicle speed, signal |
18G |
| 13 |
Steering angle, signal |
18B |
| 13 |
Steering angle, signal |
21G |
| 13 |
Steering angle, signal |
31K |
| 14 |
Parking space detection, signal |
14E |
| 15 |
Electric power steering actuator motor, actuation |
12L |
| 16 |
Electric power steering torque sensor, signal |
13K |
| 16 |
Electric power steering torque sensor, signal |
18J |
| 17 |
Electric power steering, request |
14J |
| 18 |
Gear range, status |
9H |
| 18 |
Gear range, status |
20F |
| 18 |
Gear range, status |
8E |
| 18 |
Gear range, status |
17B |
| 19 |
Multifunction steering wheel button group, signal |
18B |
| 19 |
Multifunction steering wheel button group, signal |
24K |
| 19 |
Multifunction steering wheel button group, signal |
28K |
| 19 |
Multifunction steering wheel button group, signal |
21G |
| 2 |
Parking system status indicator, actuation |
20E |
| 2 |
Parking system status indicator, actuation |
15F |
| 20 |
Park position, signal |
14E |
| 21 |
Instrument cluster message, request |
13E |
| 22 |
Warning message issue, request |
|
| 23 |
Trailer recognition, status |
21B |
| 23 |
Trailer recognition, status |
20F |
| 3 |
Rain/light sensor, status |
19F |
| 3 |
Rain/light sensor, status |
21C |
| 4 |
Combination switch, status |
18A |
| 4 |
Combination switch, status |
20G |
| 4 |
Combination switch, status |
28L |
| 5 |
Wheel speed, signal |
2G |
| 5 |
Wheel speed, signal |
19F |
| 5 |
Wheel speed, signal |
15D |
| 5 |
Wheel speed, signal |
4D |
| 5 |
Wheel speed, signal |
18C |
| 6 |
Wheel rotation direction, signal |
19F |
| 6 |
Wheel rotation direction, signal |
15D |
| 6 |
Wheel rotation direction, signal |
4D |
| 6 |
Wheel rotation direction, signal |
18B |
| 7 |
Circuit 15, status |
20G |
| 7 |
Circuit 15, status |
3B |
| 7 |
Circuit 15, status |
6C |
| 7 |
Circuit 15, status |
17B |
| 7 |
Circuit 15, status |
16D |
| 8 |
Parking brake indicator switch, status |
20F |
| 8 |
Parking brake indicator switch, status |
21D |
| 9 |
Parking system warning indicator, actuation |
19K |
| 9 |
Parking system warning indicator, actuation |
18K |
| A1 |
Instrument cluster |
13C |
| A1p13 |
Multifunction display |
12C |
| A44/3 |
Rear parking system warning indicator |
17L |
| A44/4 |
Instrument panel parking system warning indicator |
19L |
| A91b1 |
Electric power steering torque sensor |
11K |
| A91m1 |
Electric power steering actuator motor |
11L |
| B38/2 |
Rain/light sensor |
24C |
| B8/1 |
Outer left front parking system distance sensor |
26G |
| B8/10 |
Outer left rear parking system distance sensor |
27G |
| B8/2 |
Center left front parking system distance sensor |
25G |
| B8/3 |
Inner left front parking system distance sensor |
25G |
| B8/4 |
Inner right front parking system distance sensor |
24G |
| B8/5 |
Center right front parking system distance sensor |
23G |
| B8/6 |
Outer right front parking system distance sensor |
22G |
| B8/7 |
Outer right rear parking system distance sensor |
31G |
| B8/8 |
Inner right rear parking system distance sensor |
30G |
| B8/9 |
Inner left rear parking system distance sensor |
28G |
| CAN B |
Interior CAN |
23B |
| CAN C |
Drive train CAN |
9H |
| CAN E1 |
Chassis CAN 1 |
3B |
| CAN E1 |
Chassis CAN 1 |
7D |
| CAN E1 |
Chassis CAN 1 |
21A |
| CAN E1 |
Chassis CAN 1 |
29A |
| CAN E1 |
Chassis CAN 1 |
12B |
| CAN E2 |
Chassis CAN 2 |
19E |
| CAN E2 |
Chassis CAN 2 |
16J |
| CAN E2 |
Chassis CAN 2 |
17C |
| CAN E2 |
Chassis CAN 2 |
16H |
| Code 235 |
Active Park Assist |
12K |
| Code 235 |
Active Park Assist |
13J |
| Code 235 |
Active Park Assist |
27K |
| Code 235 |
Active Park Assist |
24K |
| Code 235 |
Active Park Assist |
18A |
| Code 235 |
Active Park Assist |
17J |
| Code 235 |
Active Park Assist |
20F |
| Code 235 |
Active Park Assist |
12J |
| Code 235 |
Active Park Assist |
30K |
| Code 235 |
Active Park Assist |
27L |
| Code 550 |
Trailer hitch |
20F |
| Code 550 |
Trailer hitch |
26B |
| Code 550 |
Trailer hitch |
21B |
| L6/1 |
Left front axle RPM sensor |
2K |
| L6/2 |
Right front axle RPM sensor |
2K |
| L6/3 |
Left rear axle RPM sensor |
2L |
| L6/4 |
Right rear axle RPM sensor |
2L |
| LIN 1 |
Instrument panel LIN |
17G |
| LIN 2 |
Wiper/inside rearview mirror LIN |
23C |
| LIN E1 |
Steering LIN |
26K |
| N10/1 |
Front SAM control unit with fuse and relay module |
19B |
| N135 |
Steering wheel electronics |
25K |
| N28/1 |
Trailer recognition control unit |
27B |
| N3/10 |
ME-SFI [ME] control unit |
10E |
| N3/9 |
CDI control unit |
7E |
| N30/4 |
Electronic Stability Program control unit |
2D |
| N30/7 |
Premium Electronic Stability Program control unit |
2D |
| N49 |
Steering angle sensor |
31J |
| N62 |
Parking system control unit |
19G |
| N68 |
Electrical power steering control unit |
15L |
| N72/1 |
Upper control panel control unit |
15E |
| N72/1s8 |
Parking system button |
17E |
| N73 |
Electronic ignition switch control unit |
6A |
| N80 |
Steering column module control unit |
30K |
| S110 |
Left multifunction steering wheel button group |
21J |
| S110s4 |
"Back" and voice control system OFF button |
21K |
| S110s6 |
OK button |
21K |
| S12 |
Parking brake indicator switch |
22D |
| S4 |
Combination switch |
26L |
| U165 |
Valid for AMG |
1C |
| U203 |
Valid without DISTRONIC PLUS |
1C |
| U74 |
Valid for diesel engines |
6E |
| U75 |
Valid for gasoline engines |
9E |
| U909 |
Valid for DISTRONIC PLUS |
2C |
| U986 |
Not valid for AMG |
2C |
| Y3/8n4 |
Fully integrated transmission control unit |
9J |
