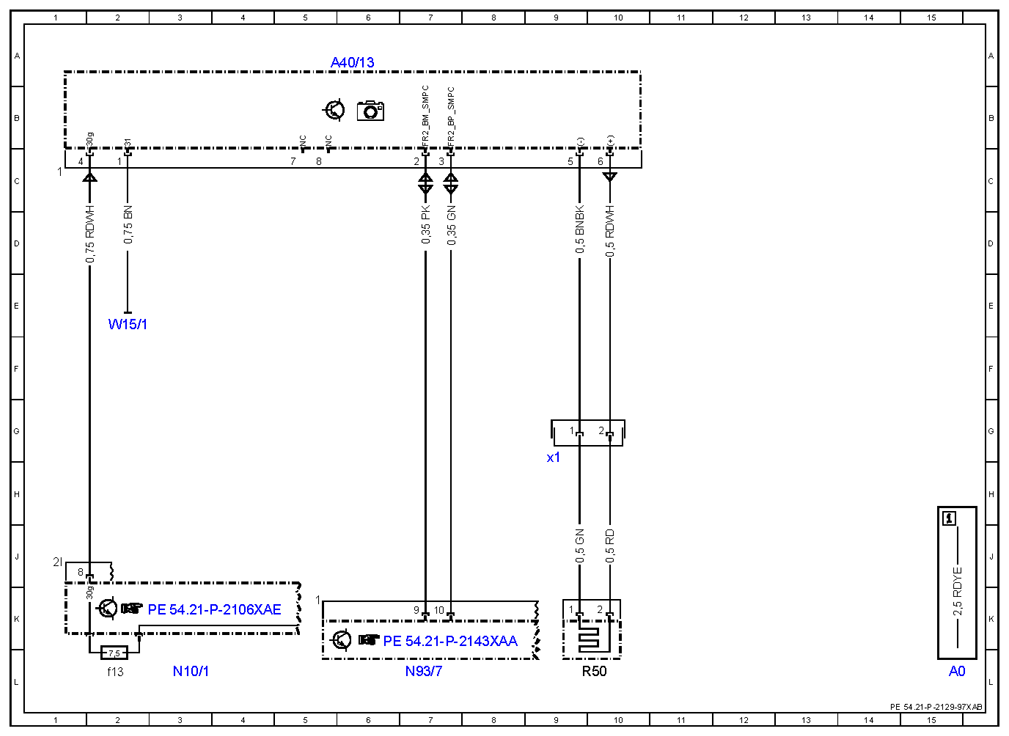

Wiring diagram for multifunction camera - PE54.21-P-2129-97XAB
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A40/13 | Stereo multifunction camera | 6A |
| N10/1 | Front SAM control unit with fuse and relay module | 3L |
| N10/1f13 | Fuse 13 | 2L |
| N93/7 | Chassis gateway control unit | 7L |
| R50 | Auxiliary heater heating element | 10L |
| R50x1 | Auxiliary heater heating element electrical connector | 9H |
| W15/1 | Right footwell ground point | 2E |
