Remove/install front passenger kneebag - AR91.60-P-0100NKC

MODEL 117, 156 with CODE 294 (Kneebag) with CODE 460 (Canada version)

MODEL 117, 156 with CODE 294 (Kneebag) with CODE 494 (US version)

Shown on model 117, glove box removed

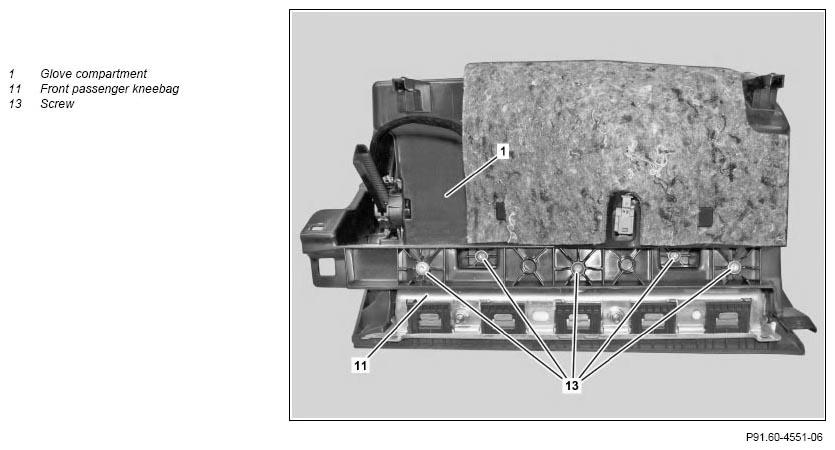

Fig 1: Front Passenger Kneebag Remove/Install Components - Shown On Model 117, Glove Box Removed

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove glove box (1)		AR68.10-P-1400NKA
2	Remove screws/bolts (13)	Bolt, knee airbag to glove compartment	*BA91.60-P-1014-01F
3	Remove front passenger kneebag (11) from glove box (1)	If front passenger kneebag (11) is replaced, defective front passenger kneebag (11) must be properly disposed.
4	Install in the reverse order
5	Connect STAR DIAGNOSIS, read out DTC memory and erase if required	After replacing front passenger kneebag (11).
			AD00.00-P-2000-04A
