Removing and installing headlamp for daytime running light - AR82.10-P-2300NKB
MODEL 117, 246 with CODE 257 (round LED daytime running lamps)
MODEL 176 up to model year 2016 with CODE 257 (round LED daytime running lamps)
MODEL 242, 246 with CODE 240 (LED daytime running lights)

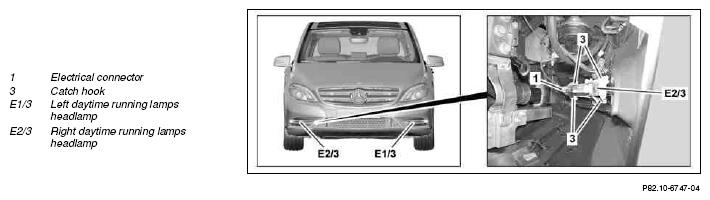

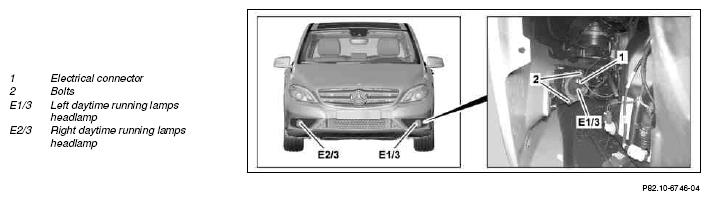

Shown on model 246 with code 257 (LED daytime running lights, round)
Shown on model 246 with code 240 (LED daytime running lights)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Lift vehicle on vehicle lift | AR00.60-P-1000AK | |
| 2 | Turn left front complete wheel or right front complete wheel inwards | ||
| 3 | Detach fender liner in the area of the bumper until the left daytime running lights headlamp (E1/3) or right daytime running lights headlamp (E2/3) is accessible | AR88.10-P-1300NKB | |
| 4 | Disconnect electrical connector (1) | ||
| 5 | Remove bolts (2) | Model 117, 246 with code 257 (round LED daytime running lamps) Model 176 up to model year 2016 with code 257 (round LED daytime running lamps) |
|
| 6.1 | Pull out left daytime running lights headlamp (E1/3) or right daytime running lights headlamp (E2/3) toward rear | Model 117, 246 with code 257 (round LED daytime running lamps) Model 176 up to model year 2016 with code 257 (round LED daytime running lamps) |
|
| 6.2 | Unclip left daytime running lights headlamp (E1/3) or right daytime running lights headlamp (E2/3) at catch hooks (3) and remove | Model 242, 246 with code 240 (LED daytime running lights) |
|
| 7 | Install in the reverse order |
