Remove/install tuner unit - AR82.60-P-2002NKX
MODEL 117, 156, 176, 242, 246 with CODE 862 (Provision for TV installation)
MODEL 117, 156, 176, 242, 246 with CODE 865 (TV tuner)

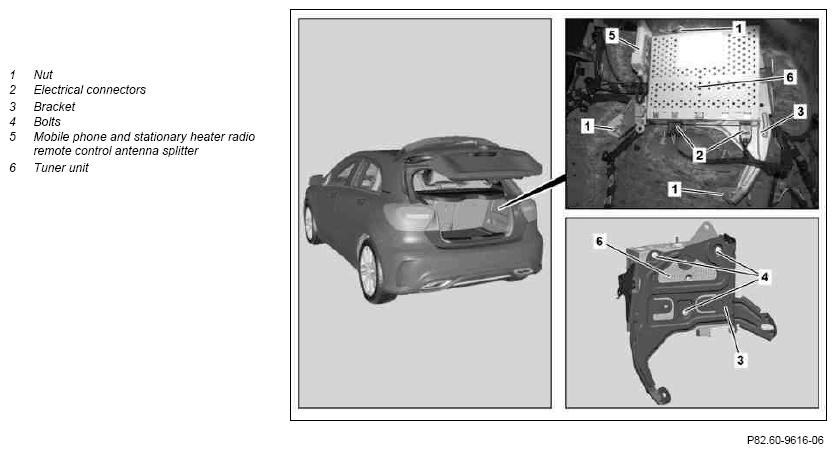

Shown on MODEL 176
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Remove/install | |||
| 1 | Perform initial startup of tuner unit (6) with XENTRY using the software calibration number (SCN) | When replacing tuner unit (6). | |
| AR54.21-P-0015X | |||
| 2 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove trunk side paneling on right | Model 176 with code 862 (Provision for TV installation) Model 176 with code 865 (TV tuner) |
AR68.30-P-4800NKA |
| Model 156 with code 862 (Provision for TV installation) Model 156 with code 865 (TV tuner) |
AR68.30-P-4800NKX | ||
| Model 242, 246 with code 862 (Provision for TV installation) Model 242, 246 with code 865 (TV tuner) |
AR68.30-P-4800NKB | ||
| Model 117.3 with code 862 (Provision for TV installation) Model 117.3 with code 865 (TV tuner) |
AR68.30-P-4800NKC | ||
| 4 | Separate electrical connectors (2) | ||
| 5 | Remove mobile phone and stationary heater radio remote control antenna splitter (5) from bracket (3) and place to one side with electrical lines connected | Model 117, 156, 176, 242, 246 with code 228 (Auxiliary heater) with code 862 (Provision for TV installation) Model 117, 156, 176, 242, 246 with code 228 (Auxiliary heater) with code 865 (TV tuner) Model 117, 156, 176, 242, 246 with code 386 (Comfort telephony) with code 862 (Provision for TV installation) Model 117, 156, 176, 242, 246 with code 386 (Comfort telephony) with code 865 (TV tuner) |
|
| 6 | Unscrew nuts (1) | ||
| 7 | Remove bracket (3) with DAB control unit (6) | ||
| 8 | Remove bolts (4) | ||
| 9 | Remove tuner unit (6) from bracket (3) | ||
| 10 | Install in the reverse order |
