Remove/install taillamp - AR82.10-P-4905NKC
MODEL 117
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove rear center assembly paneling | AR68.30-P-4785NKC | |

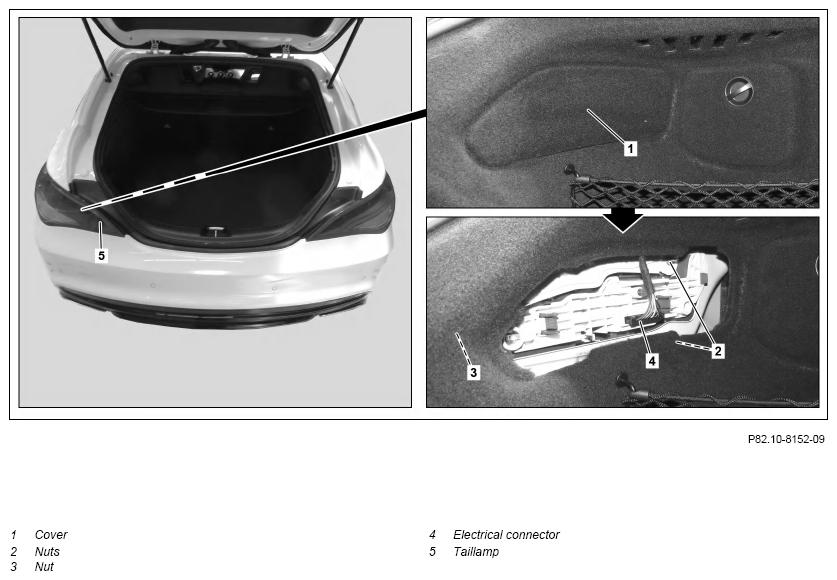

| 2 | Remove cover (1) | ||
| 3 | Unscrew nuts (2) | ||
| 4 | Pull trunk interior paneling forwards slightly until nut (3) is accessible | ||
| 5 | Unscrew nut (3) | ||
| 6 | Disconnect electrical connection (4) | ||
| 7 | Unclip and remove taillamp (5) | ||
| 8 | Install in the reverse order |
