Remove/install pump of windshield and headlamp washer system - AR82.35-P-6008NKB
MODEL 117, 156, 176, 242, 246

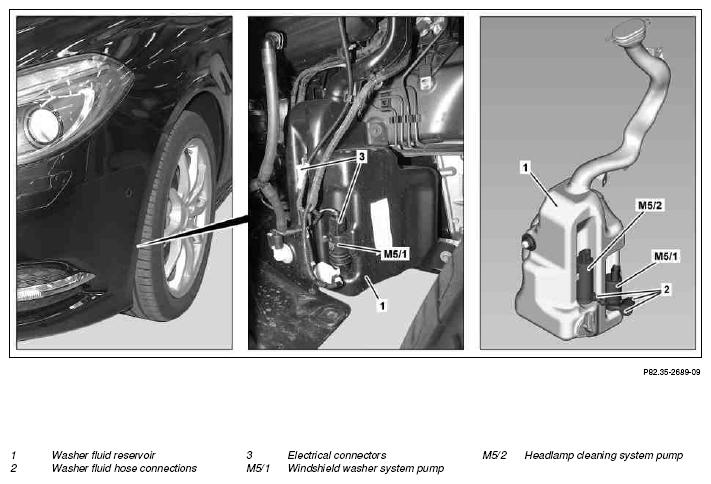

Shown on model 246 with code 600 (Headlamp cleaning system)
| Risk of fire and explosion caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin. | Wear protective clothing and tight-fitting safety glasses. No open flames, fire or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of the reach of children. | AS82.35-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Lift vehicle on vehicle lift | AR00.60-P-1000AK | |
| 2 | Turn the steering to the left | ||
| 3 | Detach left front fender liner and lift until washer fluid reservoir (1) is accessible | AR88.10-P-1300NKB | |
| 4 | Disconnect electrical connector (3) from windshield washer system pump (M5/1) | ||
| 5 | Disconnect electrical connector (3) from headlamp cleaning system pump (M5/2) | Model 117, 156, 242, 246 with code 600 (Headlamp cleaning system) Model 176 up to model year 2016 with code 600 (Headlamp cleaning system) |
|
| 6 | Release latches at washer fluid hose connections (2) by twisting and disconnect washer fluid hoses | ||
| 7 | Remove windshield washer system pump (M5/1) from washer fluid reservoir (1) | ||
| Figure | |||
| 8 | Check seal of windshield washer system pump (M5/1) | If damage is present ↓ Replace seal |
|
| 9 | Remove headlamp cleaning system pump (M5/2) from washer fluid reservoir (1) | Model 117, 156, 242, 246 with code 600 (Headlamp cleaning system) Model 176 up to model year 2016 with code 600 (Headlamp cleaning system) |
|
| Figure | |||
| 10 | Check seal of headlamp cleaning system pump (M5/2) | Model 117, 156, 242, 246 with code 600 (Headlamp cleaning system) Model 176 up to model year 2016 with code 600 (Headlamp cleaning system) If damage is present ↓ Replace seal |
|
| 11 | Install in the reverse order | ||
| 12 | Fill washer fluid reservoir (1) | ||
| AP82.35-P-8210AK | |||
| Check | |||
| 13 | Check windshield washer system for proper operation | ||
| AP82.30-P-8252AK | |||
| 14 | Check function of headlamp cleaning system | Model 117, 156, 242, 246 with code 600 (Headlamp cleaning system) Model 176 up to model year 2016 with code 600 (Headlamp cleaning system) |
|
| AP82.30-P-8252AK |
