Remove/install multimedia connection unit in front stowage compartment - AR82.60-P-1032NKM
MODEL 117, 156, 176, 242, 246 as of model year 2016
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Open armrest of center console (2) | ||

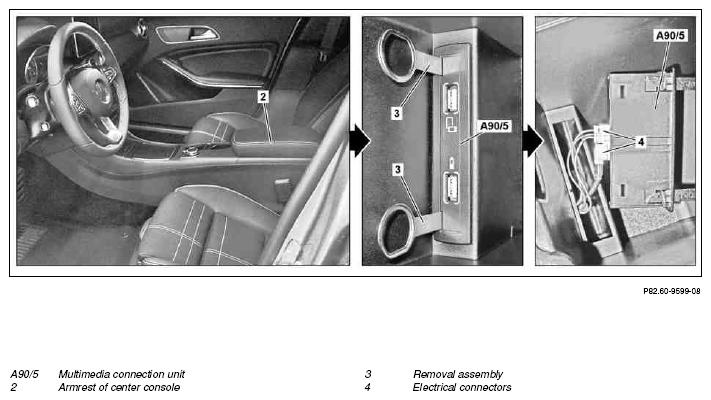

| 2 | Insert removal fixtures (3) in openings of multimedia connection unit (1) | Fig 2 | |
| 3 | Pull multimedia connection unit (1) out of center console with lines attached | Fig 2 | |
| 4 | Disconnect electrical connections (4) | ||
| 5 | Press locks on multimedia connection unit (1) and pull removal fixtures (3) out of multimedia connection unit (1) | Fig 2 | |
| 6 | Install in the reverse order |
