Remove/install fan for lamp unit - AR82.10-P-4742NKM
MODEL 117, 156, 176, 242 as of model year 2016 with CODE 631 (Static LED headlamps, left-hand traffic)
MODEL 117, 156, 176, 242 as of model year 2016 with CODE 632 (Headlamps, LED, static, right-side traffic)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove left front lamp unit (E1) or right front lamp unit (E2) | Model 117, 176, 242 as of model year 2016 with code 631 (Static LED headlamps, left-hand traffic) Model 117, 176, 242 as of model year 2016 with code 632 (Headlamps, LED, static, right-side traffic) |
AR82.10-P-4730NKB |
| Model 156 as of model year 2016 with code 631 (Static LED headlamps, left-hand traffic) Model 156 as of model year 2016 with code 632 (Headlamps, LED, static, right-side traffic) |
AR82.10-P-4730NKX | ||

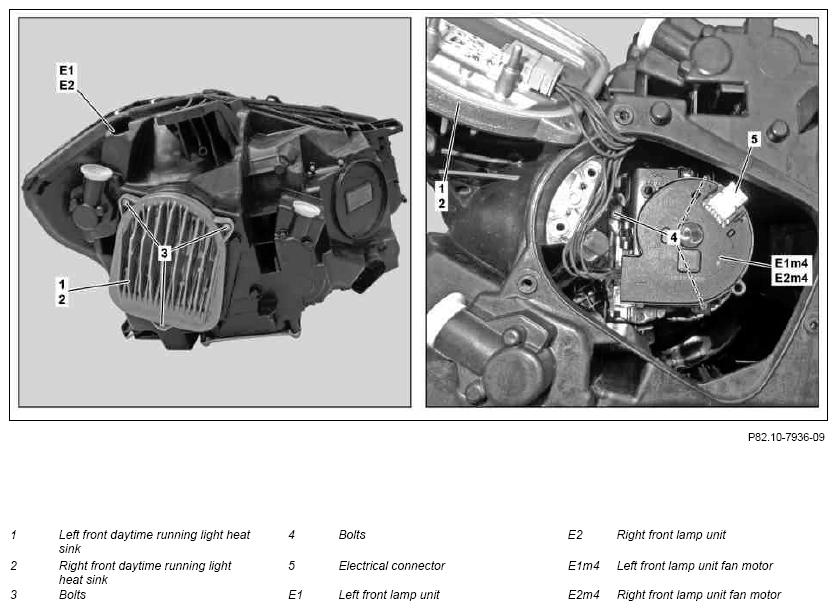

| 2 | Remove bolts (3) | ||
| 3 | Remove left front daytime running light heat sink (1) or right front daytime running light heat sink (2) and place to one side with electrical line connected | ||
| 4 | Disconnect electrical connection (5) | ||
| 5 | Remove screws/bolts (4) | ||

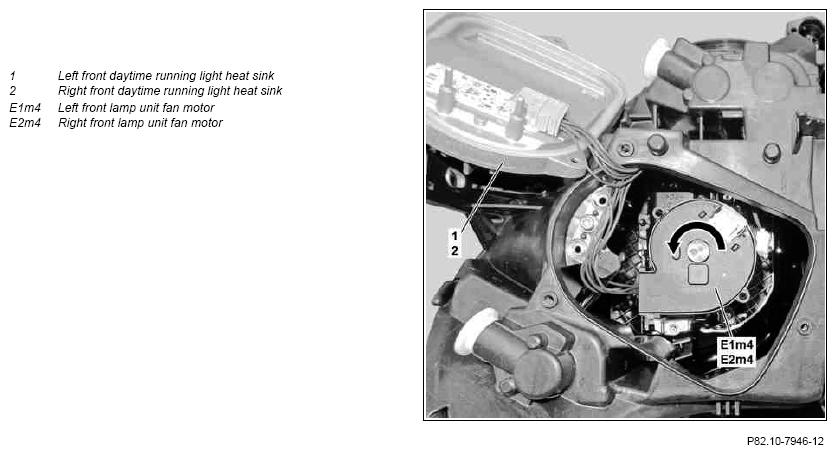

| 6 | Turn left front lamp unit fan motor (E1m4) or right front lamp unit fan motor (E2m4) in direction of arrow until left front lamp unit fan motor (E1m4) or right front lamp unit fan motor (E2m4) is detached from locking slots | ||
| 7 | Remove left front lamp unit fan motor (E1m4) or right front lamp unit fan motor (E2m4) toward top | ||
| 8 | Install in the reverse order |
