Remove/install antenna changeover switch - AR82.62-P-0010NKC
MODEL 117.3 as of model year 2016 with CODE 386 (Comfort telephony) with CODE B24 (remote control for auxiliary heater)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove side paneling in right side of trunk | AR68.30-P-4800NKC | |

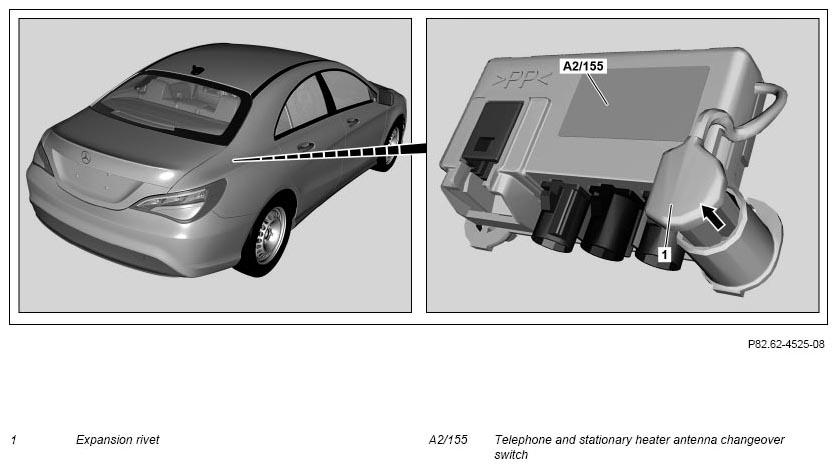

| 3 | Use suitable tool to open expansion rivet (1) on telephone and stationary heater antenna changeover switch (A2/155) (arrow) | ||
| 4 | Unclip and remove telephone and stationary heater antenna changeover switch (A2/155) | Figure | |
| 5 | Release and disconnect electrical connectors from telephone and stationary heater antenna changeover switch (A2/155) | ||
| 6 | Install in the reverse order |
