Remove/install antenna amplifier/compensator for telephone - AR82.62-P-0005NKC

MODEL 117 with CODE 386 (Comfort telephony)

Shown on model 117.3

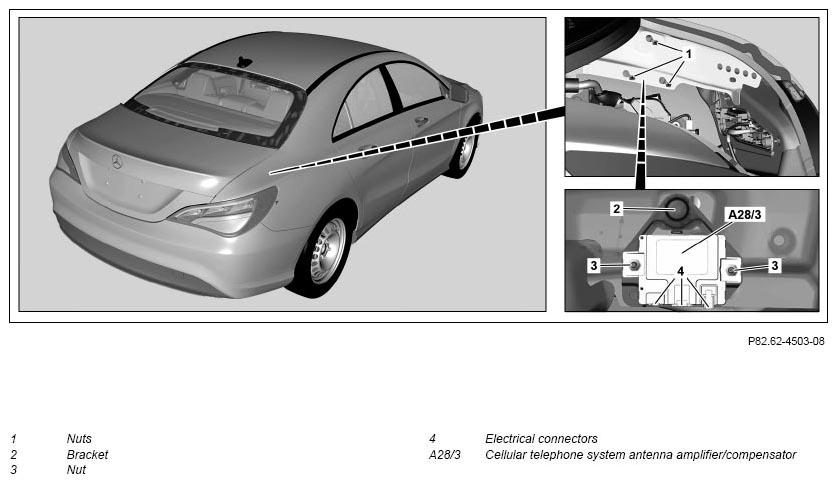

Fig 1: Telephone Antenna Amplifier/Compensator - Shown On Model 117.3

Courtesy of MERCEDES-BENZ USA

Shown on model 117.9

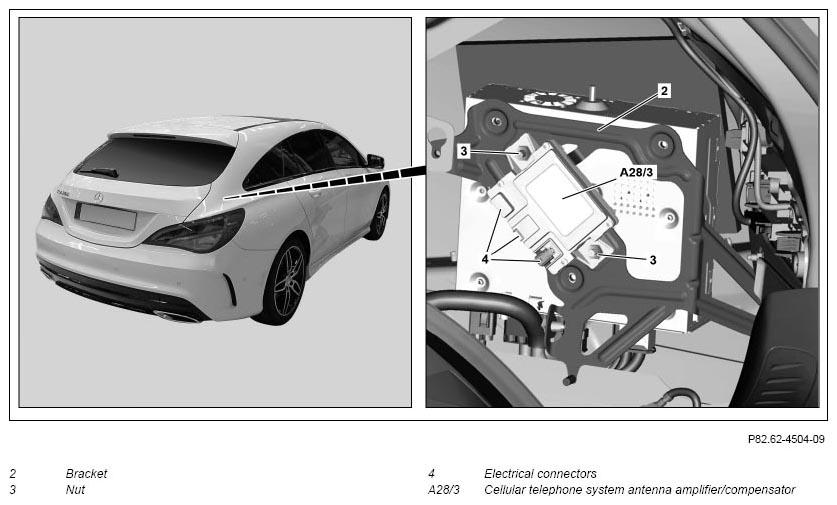

Fig 2: Telephone Antenna Amplifier/Compensator - Shown On Model 117.9

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove side paneling in right side of trunk	Model 117.3 with code 386 (Comfort telephony)	AR68.30-P-4800NKC
		Model 117.9 with code 386 (Comfort telephony)	AR68.30-P-1180NKC
2	Unfasten nuts (1)	Model 117.3 with code 386 (Comfort telephony)
3	Unhook, remove and turn over bracket (2) with cellular telephone system antenna amplifier/compensator (A28/3) and connected electrical connectors (4)	Model 117.3 with code 386 (Comfort telephony)
4	Release and disconnect electrical connections (4)
5	Unscrew nuts (3) and remove cellular telephone system antenna amplifier/compensator (A28/3)
6	Install in the reverse order
