Remove/install antenna amplifier module - AR82.62-P-8300NKC
MODEL 117.3

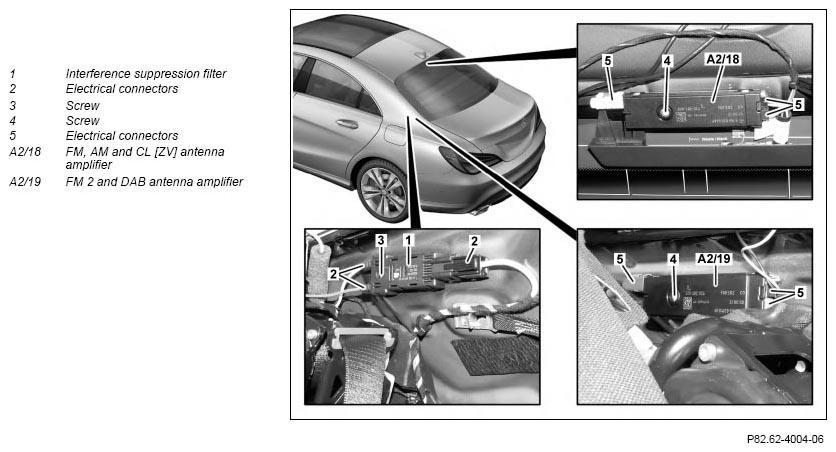

| Remove/install | |||
| 1 | Lower headliner | Only when removing FM, AM and CL [ZV] antenna amplifier (A2/18). | |
| AR68.30-P-4300NKA | |||
Do not kink headliner or bend excessively. Otherwise the headliner may crack and break. |
|||
| 2 | Remove trim at left from C-pillar | Only when removing FM 2 and DAB antenna amplifier (A2/19) or interference suppression filter (1). | |
| AR68.30-P-4490NKC | |||
| 3 | Remove screw/bolt (4) at FM, AM and CL [ZV] antenna amplifier (A2/18) or FM 2 and DAB antenna amplifier (A2/19) | ||
| 4 | Disconnect the respective electrical connectors (5) and unclip and remove FM, AM and CL [ZV] antenna amplifier (A2/18) or FM 2 and DAB antenna amplifier (A2/19) | Avoid tensile load on electrical lines to rear window. Otherwise the contact points may be damaged. |
|
| 5 | Remove screw/bolt (3) at interference suppression filter (1) | ||
| 6 | Disconnect electrical connectors (2) at interference suppression filter (1) | ||
| 7 | Unclip interference suppression filter (1) and remove | ||
| 8 | Install in the reverse order | ||
| 9 | Perform function test |
