Overview of exterior lights system components - GF82.10-P-9998KN

MODEL 117, 156, 176, 242, 246

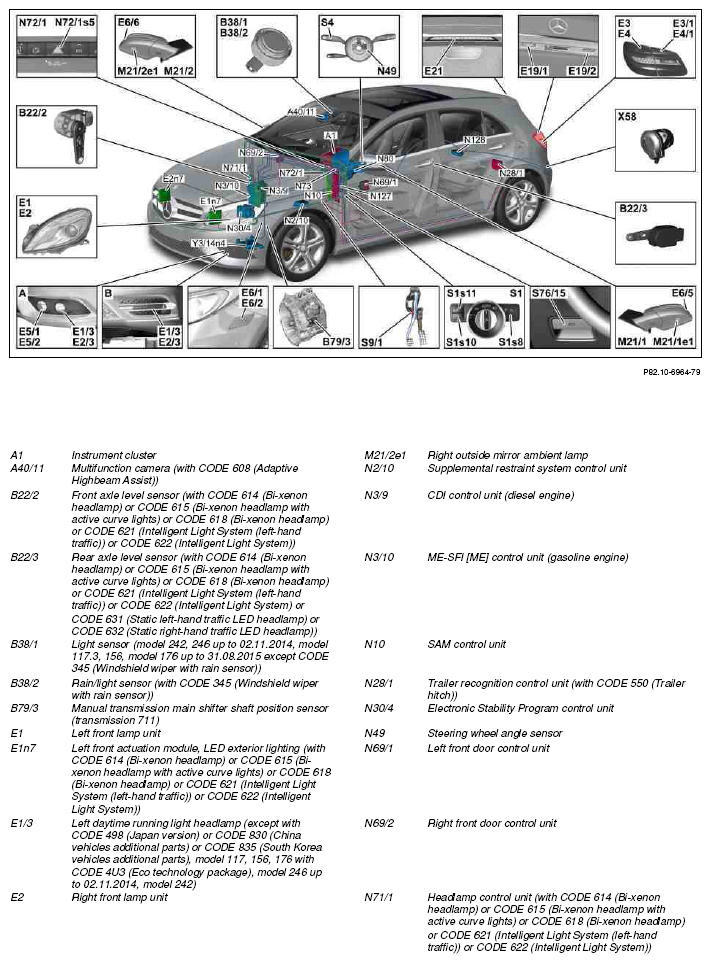

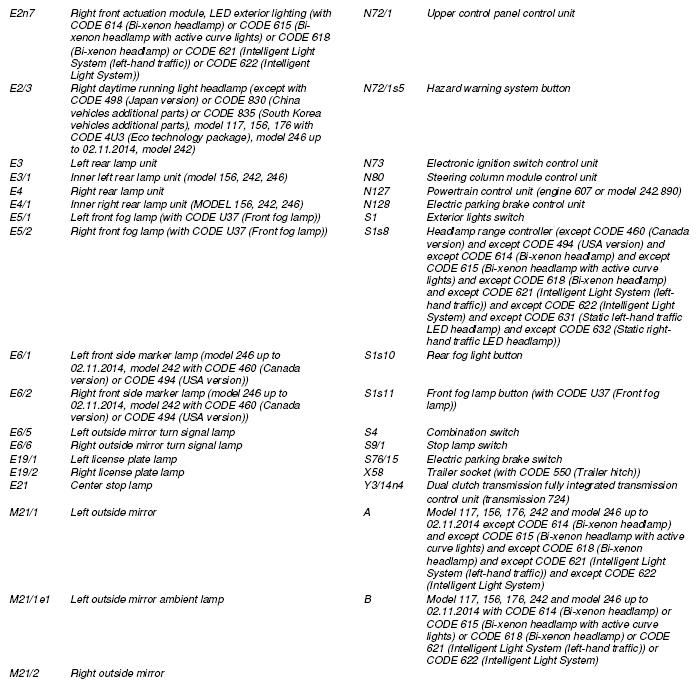

Illustrated: model 176

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

The following components are not shown:

Light sensor (B38/2b2) in rain/light sensor (model 242, 246 with CODE 345 (Windshield wiper with rain sensor) as of 03.11.2014, model 176 as of 01.09.2015, model 117.9)
Left headlamp control unit (E1n9) (with CODE 631 (Static left-hand traffic LED headlamp) or CODE 632 (Static right-hand traffic LED headlamp))
Right headlamp control unit (E2n9) (with CODE 631 (Static left-hand traffic LED headlamp) or CODE 632 (Static right-hand traffic LED headlamp))

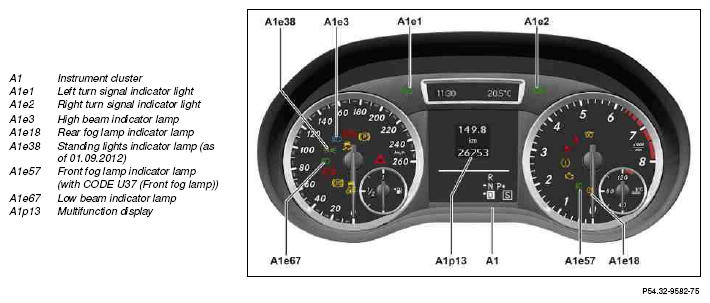

Display in instrument cluster (A1), shown on model 246

Courtesy of MERCEDES-BENZ USA

The following components in the instrument cluster transmitting functional feedback are not shown here:

Warning buzzer (A1h1)
Function check of turn signal lights, acoustic (A1h2)

Model 246 as of 03.11.2014 with halogen headlamps (except CODE 631 (Static left-hand traffic LED headlamp) and except CODE 632 (Static right-hand traffic LED headlamp))

Courtesy of MERCEDES-BENZ USA

The following components in the front lamp units are not shown here:

Left front side marker light (E1e6) (with CODE 460 (Canada version) or CODE 494 (USA version))
Left headlamp range adjustment actuator motor (E1m1)
Right front side marker light (E2e6) (with CODE 460 (Canada version) or CODE 494 (USA version))
Right headlamp range adjustment actuator motor (E2m1)

Model 246 with LED headlamps (with CODE 631 (Static left-hand traffic LED headlamp) or CODE 632 (Static right-hand traffic LED headlamp))

Courtesy of MERCEDES-BENZ USA

The following components in the front lamp units are not shown here:

Left front side marker light (E1e6) (with CODE 460 (Canada version) or CODE 494 (USA version))
Left headlamp range adjustment actuator motor (E1m1)
Fan motor 1 for left front lamp unit (E1m4)
Right front side marker light (E2e6) (with CODE 460 (Canada version) or CODE 494 (USA version))
Right headlamp range adjustment actuator motor (E2m1)
Fan motor 1 for right front lamp unit (E2m4)

Model 246 with LED headlamps (with CODE 631 (Static left-hand traffic LED headlamp) or CODE 632 (Static right-hand traffic LED headlamp))

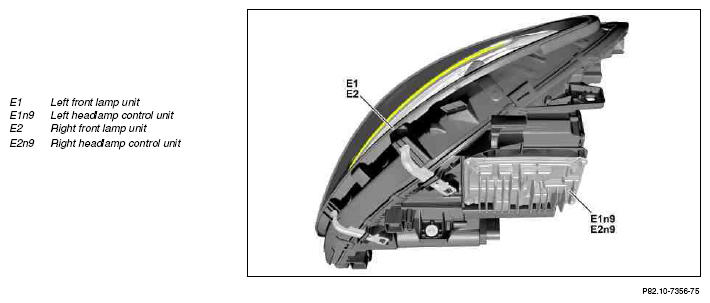

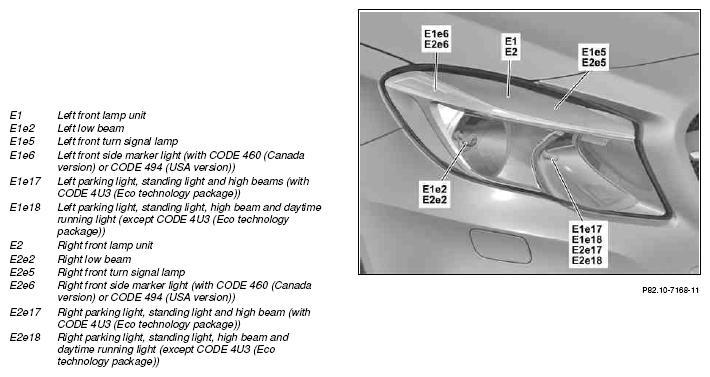

Fig 1: Headlamp & Control Unit

Courtesy of MERCEDES-BENZ USA

Model 246 up to 02.11.2014, model 242 with halogen headlamps (except CODE 614 (Bi-xenon headlamp) and except CODE 615 (Bi-xenon headlamp with active curve lights) and except CODE 618 (Bi-xenon headlamp) and except CODE 621 (Intelligent Light System (left-hand traffic)) and except CODE 622 (Intelligent Light System))

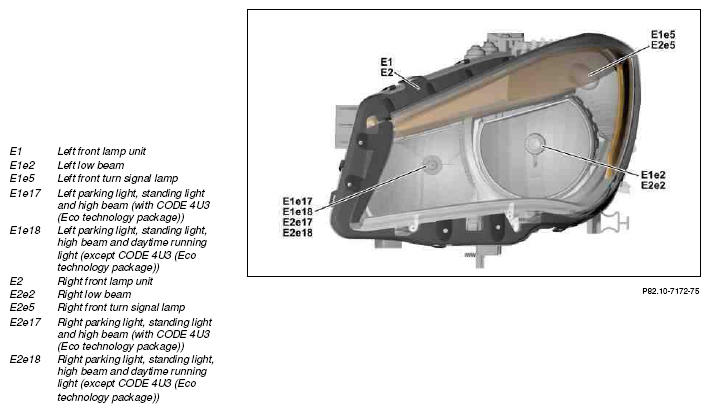

Fig 2: Halogen Headlamp Components - Model 246 Up To 02.11.2014

Courtesy of MERCEDES-BENZ USA

The following components in the front lamp units are not shown here:

Left headlamp range adjustment actuator motor (E1m1)
Right headlamp range adjustment actuator motor (E2m1)

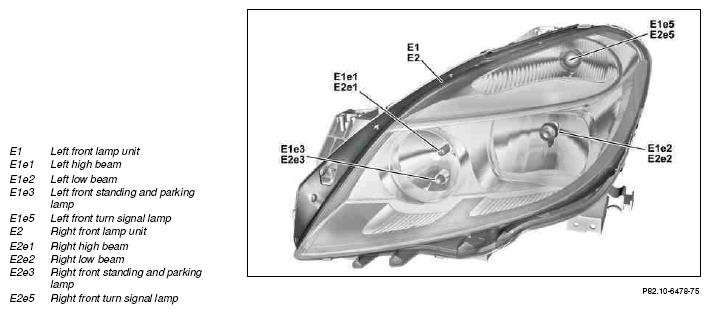

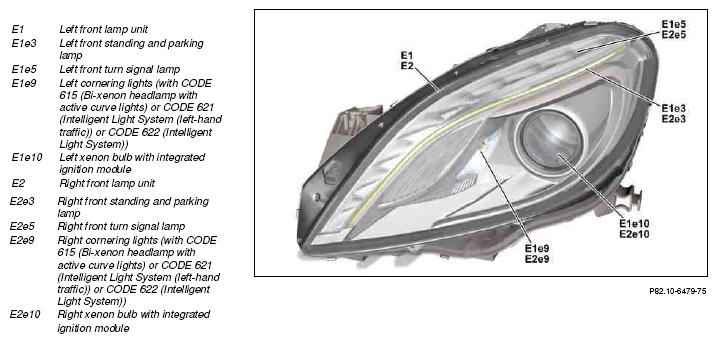

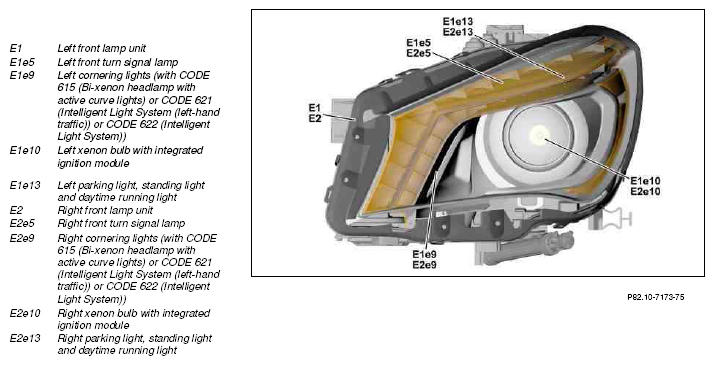

Model 246, 242 with xenon headlamps (with CODE 614 (Bi-xenon headlamp) or CODE 615 (Bi-xenon headlamp with active curve lights) or CODE 618 (Bi-xenon headlamp) or CODE 621 (Intelligent Light System (left-hand traffic)) or CODE 622 (Intelligent Light System))

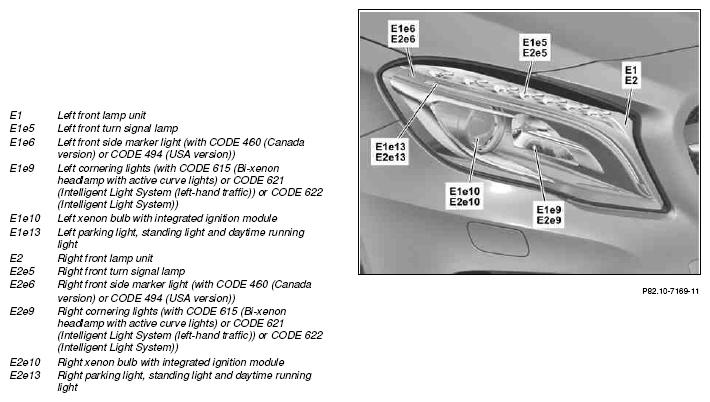

Fig 3: Xenon Headlamp Components - Shown On Model 246

Courtesy of MERCEDES-BENZ USA

The following components in the front lamp units are not shown here:

Left high beam solenoid (E1l1) (except CODE 621 (Intelligent Light System (left-hand traffic)) and except CODE 622 (Intelligent Light System))
Left headlamp range adjustment actuator motor (E1m1)
Left active curve lights actuator motor (E1m2) (with CODE 615 (Bi-xenon headlamp with active curve lights) or CODE 621 (Intelligent Light System (left-hand traffic)) or CODE 622 (Intelligent Light System))
Left light distribution actuator motor (E1m3) (with CODE 621 (Intelligent Light System (left-hand traffic)) or CODE 622 (Intelligent Light System))
Right high beam solenoid (E2l1) (except CODE 621 (Intelligent Light System (left-hand traffic)) and except CODE 622 (Intelligent Light System))
Right headlamp range adjustment actuator motor (E2m1)
Right active curve lights actuator motor (E2m2) (with CODE 615 (Bi-xenon headlamp with active curve lights) or CODE 621 (Intelligent Light System (left-hand traffic)) or CODE 622 (Intelligent Light System))
Right light distribution actuator motor (E2m3) (with CODE 621 (Intelligent Light System (left-hand traffic)) or CODE 622 (Intelligent Light System))

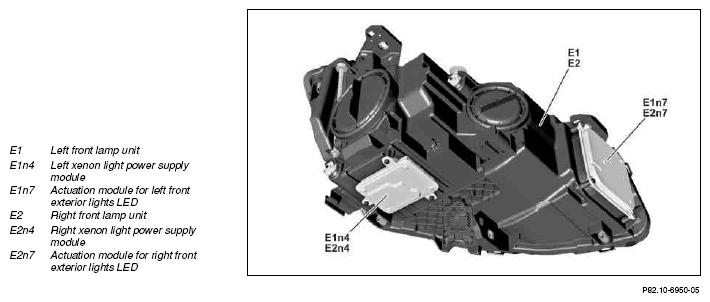

Fig 4: Front Lamp Unit, Light Power Supply Module & Actuation Module

Courtesy of MERCEDES-BENZ USA

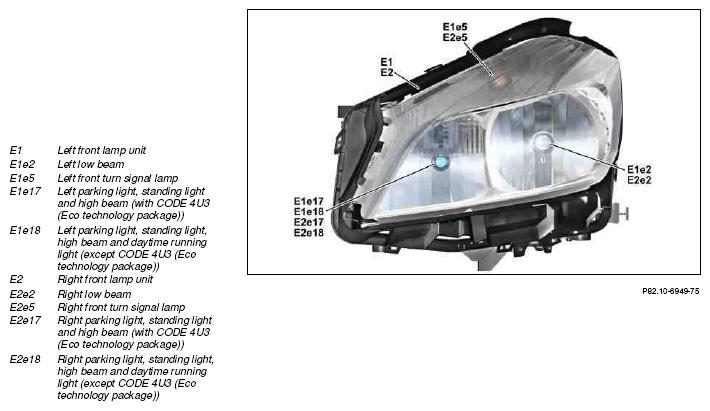

Model 176 with halogen headlamps (except CODE 614 (Bi-xenon headlamp) and except CODE 615 (Bi-xenon headlamp with active curve lights) and except CODE 618 (Bi-xenon headlamp) and except CODE 621 (Intelligent Light System (left-hand traffic)) and except CODE 622 (Intelligent Light System))

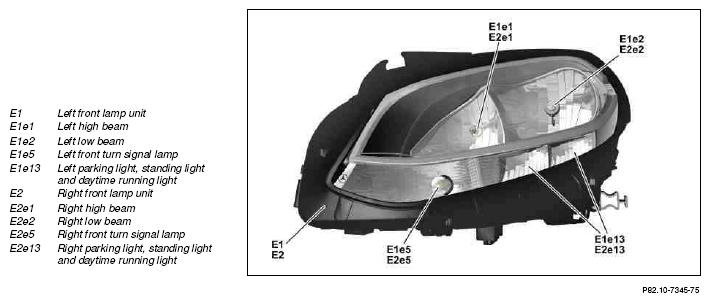

Fig 5: Halogen Headlamp Components - Shown On Model 176

Courtesy of MERCEDES-BENZ USA

The following components in the front lamp units are not shown here:

Left headlamp range adjustment actuator motor (E1m1)
Right headlamp range adjustment actuator motor (E2m1)

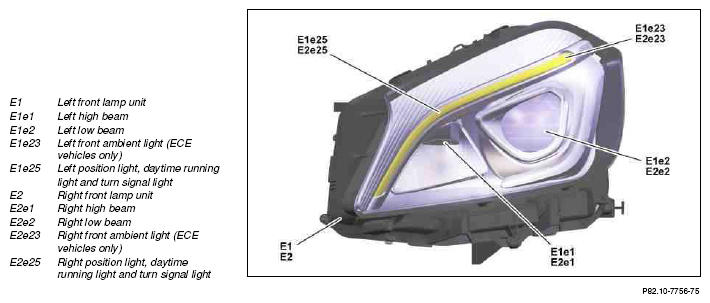

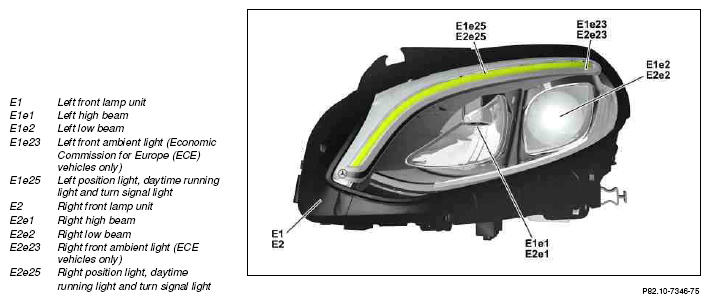

Model 176 with LED headlamps (with CODE 631 (Static left-hand traffic LED headlamp) or CODE 632 (Static right-hand traffic LED headlamp))

Fig 6: LED Headlamp Components - Shown On Model 176

Courtesy of MERCEDES-BENZ USA

The following components in the front lamp units are not shown here:

Left headlamp range adjustment actuator motor (E1m1)
Fan motor 1 for left front lamp unit (E1m4)
Right headlamp range adjustment actuator motor (E2m1)
Fan motor 1 for right front lamp unit (E2m4)

Model 176 with LED headlamps (with CODE 631 (Static left-hand traffic LED headlamp) or CODE 632 (Static right-hand traffic LED headlamp))

Fig 7: Front Lamp Unit & Headlamp Control Unit

Courtesy of MERCEDES-BENZ USA

Model 176, with xenon headlamps (with CODE 614 (Bi-xenon headlamp) or CODE 615 (Bi-xenon headlamp with active curve lights) or CODE 618 (Bi-xenon headlamp) or CODE 621 (Intelligent Light System (left-hand traffic)) or CODE 622 (Intelligent Light System))

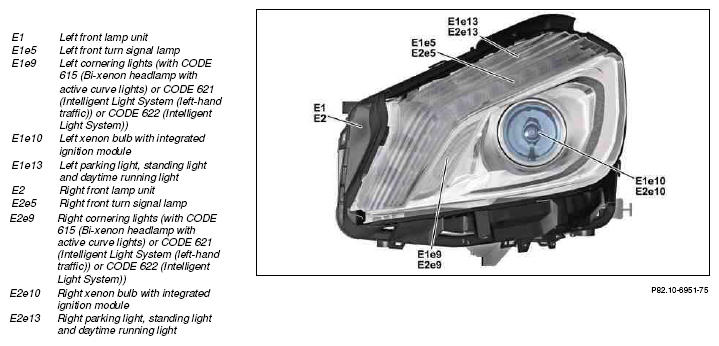

Fig 8: Xenon Headlamp Components - Shown On Model 176

Courtesy of MERCEDES-BENZ USA

The following components in the front lamp units are not shown here:

Left high beam solenoid (E1l1) (except CODE 621 (Intelligent Light System (left-hand traffic)) and except CODE 622 (Intelligent Light System))
Left headlamp range adjustment actuator motor (E1m1)
Left active curve lights actuator motor (E1m2) (with CODE 615 (Bi-xenon headlamp with active curve lights) or CODE 621 (Intelligent Light System (left-hand traffic)) or CODE 622 (Intelligent Light System))
Left light distribution actuator motor (E1m3) (with CODE 621 (Intelligent Light System (left-hand traffic)) or CODE 622 (Intelligent Light System))
Right high beam solenoid (E2l1) (except CODE 621 (Intelligent Light System (left-hand traffic)) and except CODE 622 (Intelligent Light System))
Right headlamp range adjustment actuator motor (E2m1)
Right active curve lights actuator motor (E2m2) (with CODE 615 (Bi-xenon headlamp with active curve lights) or CODE 621 (Intelligent Light System (left-hand traffic)) or CODE 622 (Intelligent Light System))
Right light distribution actuator motor (E2m3) (with CODE 621 (Intelligent Light System (left-hand traffic)) or CODE 622 (Intelligent Light System))

Model 117 with halogen headlamps (except CODE 614 (Bi-xenon headlamp) and except CODE 615 (Bi-xenon headlamp with active curve lights) and except CODE 618 (Bi-xenon headlamp) and except CODE 621 (Intelligent Light System (left-hand traffic)) and except CODE 622 (Intelligent Light System))

Fig 9: Halogen Headlamp Components - Shown On Model 117

Courtesy of MERCEDES-BENZ USA

The following components in the front lamp units are not shown here:

Left headlamp range adjustment actuator motor (E1m1)
Right headlamp range adjustment actuator motor (E2m1)

Model 117 with xenon headlamps (with CODE 614 (Bi-xenon headlamp) or CODE 615 (Bi-xenon headlamp with active curve lights) or CODE 618 (Bi-xenon headlamp) or CODE 621 (Intelligent Light System (left-hand traffic)) or CODE 622 (Intelligent Light System)), shown except CODE 460 (Canada version) and except CODE 494 (USA version)

Fig 10: Xenon Headlamp Components - Shown On Model 117

Courtesy of MERCEDES-BENZ USA

The following components in the front lamp units are not shown here:

Left front side marker light (E1e6) (with CODE 460 (Canada version) or CODE 494 (USA version))
Left high beam solenoid (E1l1) (except CODE 621 (Intelligent Light System (left-hand traffic)) and except CODE 622 (Intelligent Light System))
Left headlamp range adjustment actuator motor (E1m1)
Left active curve lights actuator motor (E1m2) (with CODE 615 (Bi-xenon headlamp with active curve lights) or CODE 621 (Intelligent Light System (left-hand traffic)) or CODE 622 (Intelligent Light System))
Left light distribution actuator motor (E1m3) (with CODE 621 (Intelligent Light System (left-hand traffic)) or CODE 622 (Intelligent Light System))
Right front side marker light (E2e6) (with CODE 460 (Canada version) or CODE 494 (USA version))
Right high beam solenoid (E2l1) (except CODE 621 (Intelligent Light System (left-hand traffic)) and except CODE 622 (Intelligent Light System))
Right headlamp range adjustment actuator motor (E2m1)
Right active curve lights actuator motor (E2m2) (with CODE 615 (Bi-xenon headlamp with active curve lights) or CODE 621 (Intelligent Light System (left-hand traffic)) or CODE 622 (Intelligent Light System))
Right light distribution actuator motor (E2m3) (with CODE 621 (Intelligent Light System (left-hand traffic)) or CODE 622 (Intelligent Light System))

Model 156 with halogen headlamps (except CODE 614 (Bi-xenon headlamp) and except CODE 615 (Bi-xenon headlamp with active curve lights) and except CODE 618 (Bi-xenon headlamp) and except CODE 621 (Intelligent Light System (left-hand traffic)) and except CODE 622 (Intelligent Light System))

Fig 11: Halogen Headlamp Components - Shown On Model 156

Courtesy of MERCEDES-BENZ USA

The following components in the front lamp units are not shown here:

Left headlamp range adjustment actuator motor (E1m1)
Right headlamp range adjustment actuator motor (E2m1)

Model 156, with xenon headlamps (with CODE 614 (Bi-xenon headlamp) or CODE 615 (Bi-xenon headlamp with active curve lights) or CODE 618 (Bi-xenon headlamp) or CODE 621 (Intelligent Light System (left-hand traffic)) or CODE 622 (Intelligent Light System))

Fig 12: Xenon Headlamp Components - Shown On Model 156

Courtesy of MERCEDES-BENZ USA

The following components in the front lamp units are not shown here:

Left high beam solenoid (E1l1) (except CODE 621 (Intelligent Light System (left-hand traffic)) and except CODE 622 (Intelligent Light System))
Left headlamp range adjustment actuator motor (E1m1)
Left active curve lights actuator motor (E1m2) (with CODE 615 (Bi-xenon headlamp with active curve lights) or CODE 621 (Intelligent Light System (left-hand traffic)) or CODE 622 (Intelligent Light System))
Left light distribution actuator motor (E1m3) (with CODE 621 (Intelligent Light System (left-hand traffic)) or CODE 622 (Intelligent Light System))
Right high beam solenoid (E2l1) (except CODE 621 (Intelligent Light System (left-hand traffic)) and except CODE 622 (Intelligent Light System))
Right headlamp range adjustment actuator motor (E2m1)
Right active curve lights actuator motor (E2m2) (with CODE 615 (Bi-xenon headlamp with active curve lights) or CODE 621 (Intelligent Light System (left-hand traffic)) or CODE 622 (Intelligent Light System))
Right light distribution actuator motor (E2m3) (with CODE 615 (Bi-xenon headlamp with active curve lights) or CODE 621 (Intelligent Light System (left-hand traffic)) or CODE 622 (Intelligent Light System))

Model 117, 156, 176 with xenon headlamps (with CODE 614 (Bi-xenon headlamp) or CODE 615 (Bi-xenon headlamp with active curve lights) or CODE 618 (Bi-xenon headlamp) or CODE 621 (Intelligent Light System (left-hand traffic)) or CODE 622 (Intelligent Light System)), shown on model 156

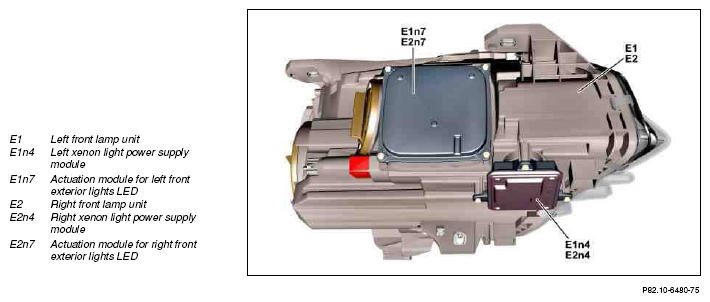

Fig 13: Left/Right Front Lamp Unit, Xenon Light Power Supply Module & Actuation Module

Courtesy of MERCEDES-BENZ USA

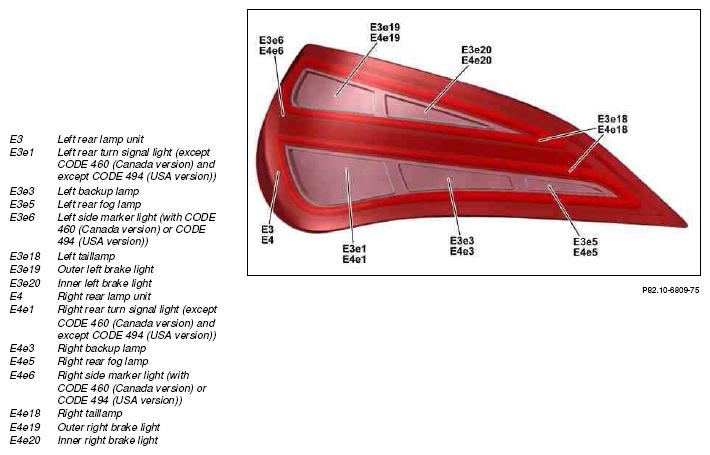

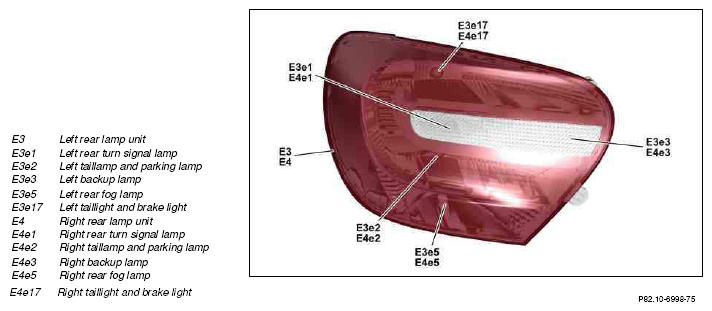

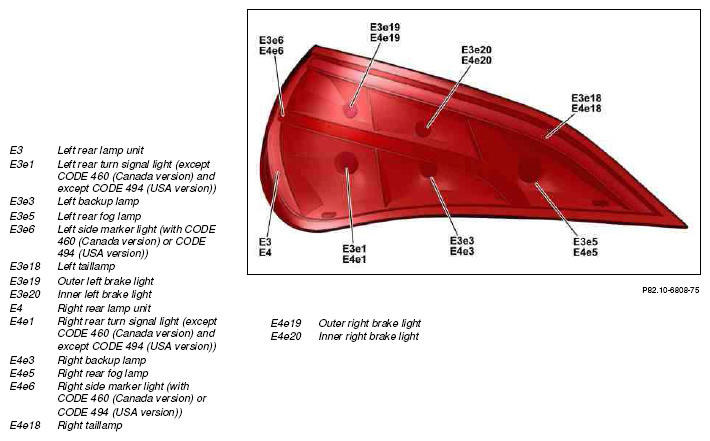

Taillamp, model 242.890 and model 242 (except 242.890), 246 as of 03.11.2014, shown with halogen headlamps (except CODE 631 (Static left-hand traffic LED headlamp) and except CODE 632 (Static right-hand traffic LED headlamp))

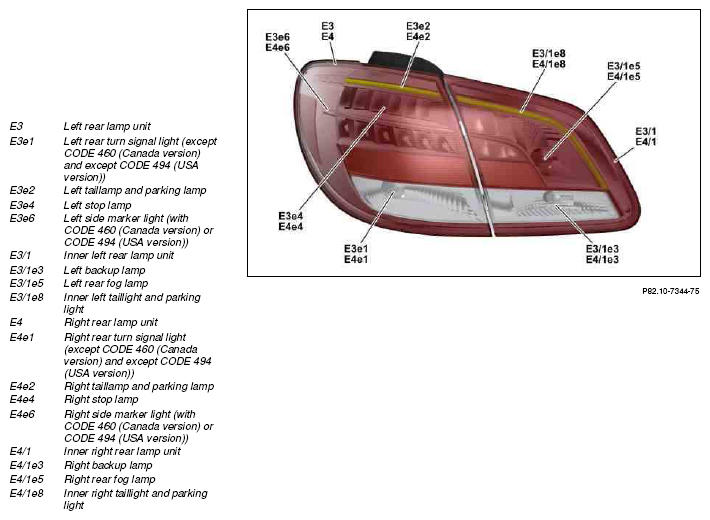

Fig 14: Taillamp Components - Model 242, 246 As Of 03.11.2014 With Halogen Headlamps

Courtesy of MERCEDES-BENZ USA

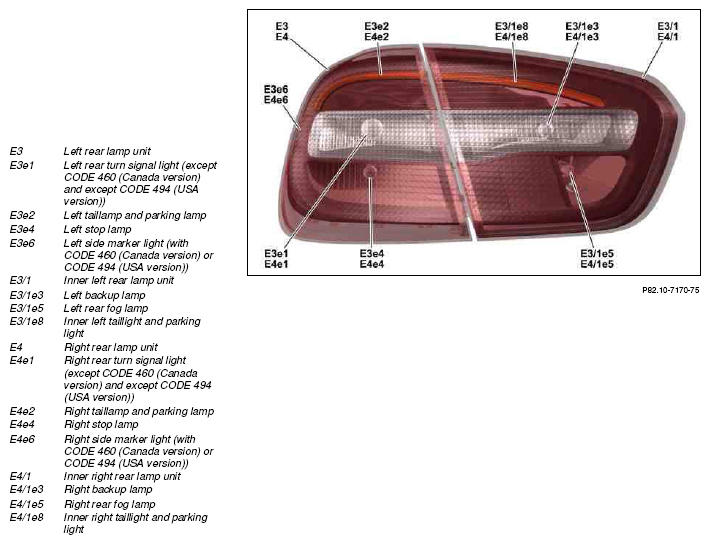

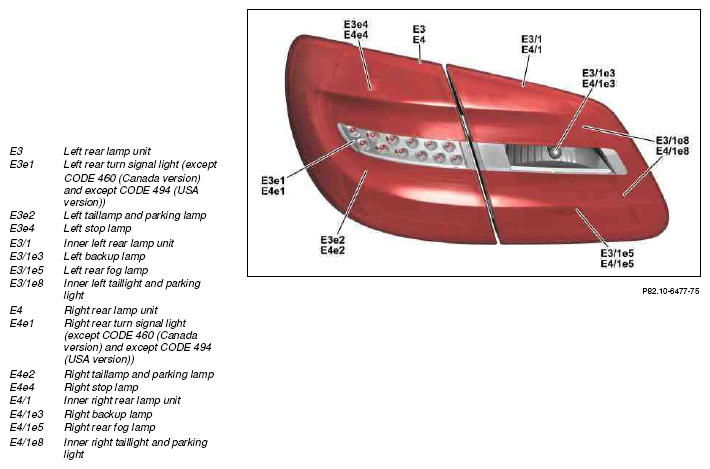

Taillamp, model 242 (except 242.890), model 246 up to 02.11.2014 with halogen headlamps (except CODE 614 (Bi-xenon headlamp) and except CODE 615 (Bi-xenon headlamp with active curve lights) and except CODE 618 (Bi-xenon headlamp) and except CODE 621 (Intelligent Light System (left-hand traffic)) and except CODE 622 (Intelligent Light System))

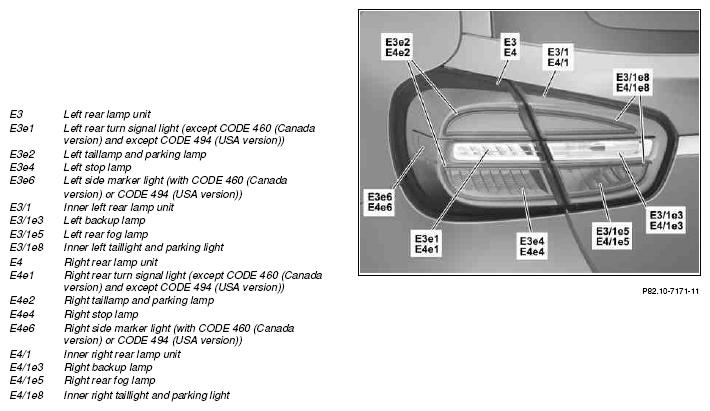

Fig 15: Taillamp Components - Model 242, 246 Up To 02.11.2014 With Halogen Headlamps

Courtesy of MERCEDES-BENZ USA

Taillamp, model 242 (except 242.890) up to 02.11.2014, model 246 with xenon headlamps (with CODE 614 (Bi-xenon headlamp) or CODE 615 (Bi-xenon headlamp with active curve lights) or CODE 618 (Bi-xenon headlamp) or CODE 621 (Intelligent Light System (left-hand traffic)) or CODE 622 (Intelligent Light System))

Fig 16: Taillamp Components - Model 242, 246 Up To 02.11.2014 With Xenon Headlamps

Courtesy of MERCEDES-BENZ USA

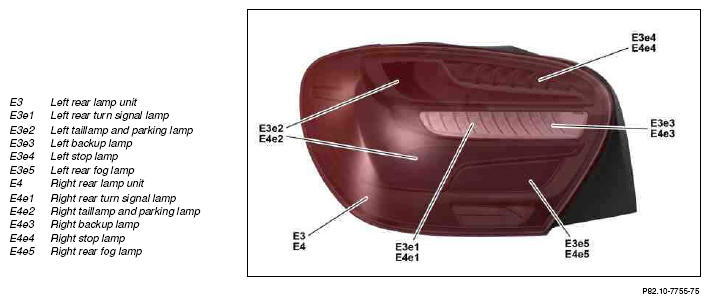

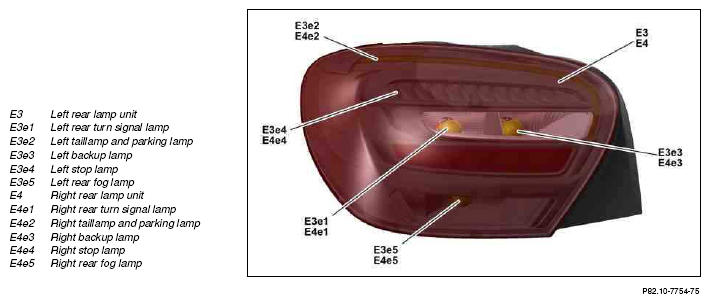

Taillamp, model 176 with halogen headlamps as of 01.09.2015 (except CODE 631 (Static left-hand traffic LED headlamp) and except CODE 632 (Static right-hand traffic LED headlamp))

Fig 17: Taillamp Components - Model 176 As Of 01.09.2015 With Halogen Headlamps

Courtesy of MERCEDES-BENZ USA

Taillamp, model 176 with halogen headlamps up to 31.08.2015 (except CODE 614 (Bi-xenon headlamp) and except CODE 618 (Bi-xenon headlamp) and except CODE 621 (Intelligent Light System (left-hand traffic)) and except CODE 622 (Intelligent Light System))

Fig 18: Taillamp Components - Model 176 Up To 31.08.2015 With Halogen Headlamps

Courtesy of MERCEDES-BENZ USA

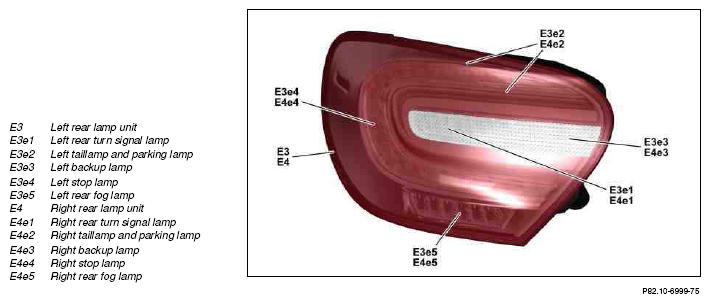

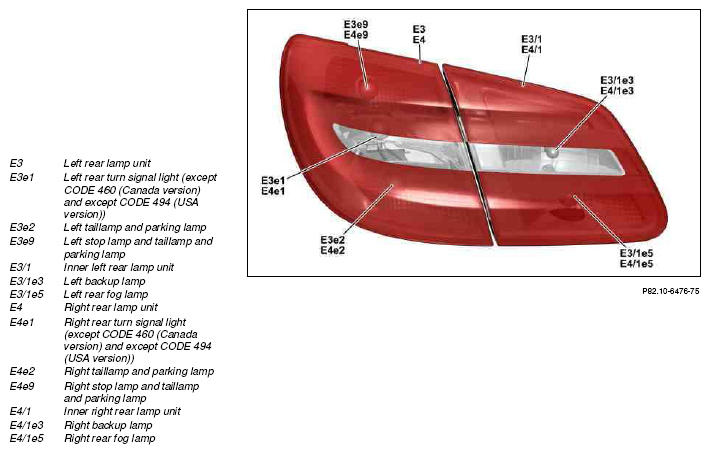

Taillamp, model 176 with LED headlamps (with CODE 631 (Static left-hand traffic LED headlamp) or CODE 632 (Static right-hand traffic LED headlamp))

Fig 19: Taillamp Components - Model 176 With LED Headlamps

Courtesy of MERCEDES-BENZ USA

Taillamp, model 176 with xenon headlamps (with CODE 614 (Bi-xenon headlamp) or CODE 618 (Bi-xenon headlamp) or CODE 621 (Intelligent Light System (left-hand traffic)) or CODE 622 (Intelligent Light System))

Fig 20: Taillamp Components - Model 176 With Xenon Headlamps

Courtesy of MERCEDES-BENZ USA

Taillamp, model 117 with halogen headlamps (except CODE 614 (Bi-xenon headlamp) and except CODE 615 (Bi-xenon headlamp with active curve lights) and except CODE 618 (Bi-xenon headlamp) and except CODE 621 (Intelligent Light System (left-hand traffic)) and except CODE 622 (Intelligent Light System))

Fig 21: Taillamp Components - Model 117 With Halogen Headlamps

Courtesy of MERCEDES-BENZ USA

Taillamp, model 117 with xenon headlamps (with CODE 614 (Bi-xenon headlamp) or CODE 615 (Bi-xenon headlamp with active curve lights) or CODE 618 (Bi-xenon headlamp) or CODE 621 (Intelligent Light System (left-hand traffic)) or CODE 622 (Intelligent Light System))

Fig 22: Taillamp Components - Model 117 With Xenon Headlamps

Courtesy of MERCEDES-BENZ USA

Taillamp, model 156 with halogen headlamps (except CODE 614 (Bi-xenon headlamp) and except CODE 615 (Bi-xenon headlamp with active curve lights) and except CODE 618 (Bi-xenon headlamp) and except CODE 621 (Intelligent Light System (left-hand traffic)) and except CODE 622 (Intelligent Light System))

Fig 23: Taillamp Components - Model 156 With Halogen Headlamps

Courtesy of MERCEDES-BENZ USA

Taillamp, model 156 with xenon headlamps (with CODE 614 (Bi-xenon headlamp) or CODE 615 (Bi-xenon headlamp with active curve lights) or CODE 618 (Bi-xenon headlamp) or CODE 621 (Intelligent Light System (left-hand traffic)) or CODE 622 (Intelligent Light System))

Fig 24: Taillamp Components - Model 156 With Xenon Headlamps

Courtesy of MERCEDES-BENZ USA
