Remove/install rain/light sensor - AR82.30-P-7801NKM
MODEL 117, 156, 176, 242, 246 as of model year 2016
Shown on model 176 as of model year 2016
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Connect diagnostic system and save basic data from rain/light sensor (5) | Only when replacing the rain/light sensor (5). | |
| AD00.00-P-2000-04A | |||
| 2 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Unclip cover (1) and remove | ||

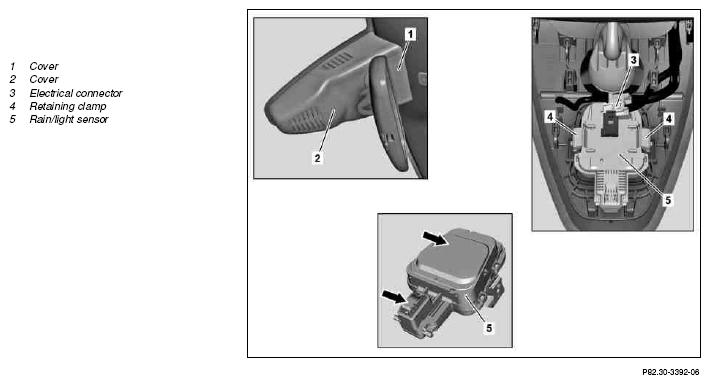

| 4 | Unclip and remove cover (2) using long wedge | Fig 2 | |
| 5 | Unhook retaining clamps (4) on both sides of rain/light sensor (5) | ||
| 6 | Remove rain/light sensor (5) and disconnect electrical connector (3) | The surfaces (arrows) of the rain/light sensor (5) must not be touched. Otherwise, soiling may cause the rain/light sensor (5) to malfunction. |
|
| 7 | Install in the reverse order | ||
| Initial startup | |||
| 8 | Perform SCN coding of rain/light sensor (5) | Only after replacing the rain/light sensor (5). | |
| AR54.21-P-0015X | |||
| 9 | Transfer previously stored basic data to rain/light sensor (5) | Only after replacing the rain/light sensor (5). | |
| AD00.00-P-2000-04A | |||
| 10 | Perform initial startup of rain/light sensor (5) | Only after replacing the rain/light sensor (5). |
