Remove/install radio operating unit - AR82.60-P-7503NKB
MODEL 117 without CODE 516 (Audio 5 radio with USB interface)
MODEL 156
MODEL 176 without CODE 516 (Audio 5 radio with USB interface)
MODEL 242
MODEL 246
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Connect Star Diagnosis and perform initial startup of Audio/COMAND control panel (A40/9) | When replacing the Audio/COMAND control panel (A40/9). | |
| AD00.00-P-2000-04A | |||

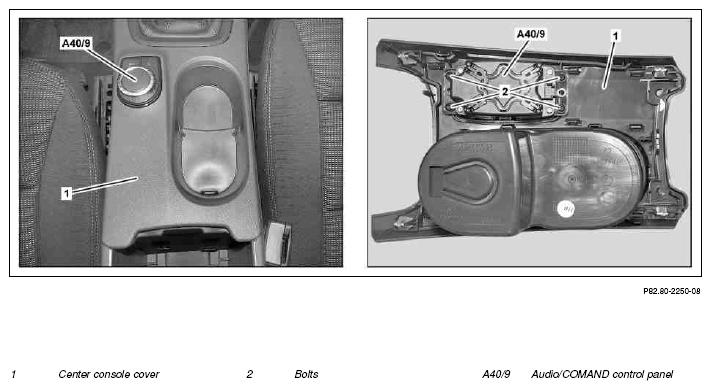

| 2 | Remove center console cover (1) | AR68.20-P-2350NKB | |
| 3 | Remove screws/bolts (2) and remove Audio/COMAND control panel (A40/9) | ||
| 4 | Install in the reverse order |
