Remove/install media interface control unit - AR82.60-P-1030NKB
MODEL 117, 156, 176, 242, 246 with CODE 518 (Media interface)

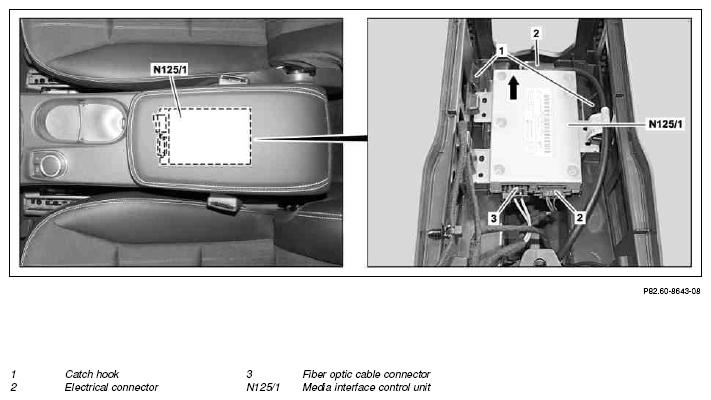

Shown on MODEL 246
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Connect Star Diagnosis and perform initial startup of media interface control unit (N1251) | When replacing the media interface control unit (N1251). | |
| AD00.00-P-2000-04A | |||
| 2 | Remove center console | AR68.20-P-2000NKB | |
| 3 | Separate electrical connectors (2) | ||
| 4 | Disconnect optical fiber (3) connector | ||
| 5 | Loosen catch hook (1), slide media interface control unit (N1251) out of the guide in the direction of arrow and remove | ||
| 6 | Install in the reverse order |
