Remove/install headlight beam adjustment control unit - AR82.10-P-4081NKB
MODEL 117, 156, 176, 242, 246 with CODE 614 (Bi-xenon headlamp unit)
MODEL 117, 156, 176, 242, 246 with CODE 622 (Intelligent Light System (right-hand traffic))
MODEL 117, 176, 242, 246 with CODE 615 (Bi-xenon headlamp unit with integrated curve illumination)
MODEL 117, 176, 242, 246 with CODE 618 (Bi-xenon headlamps)
MODEL 117, 176, 242, 246 with CODE 621 (Intelligent Light System (left-hand traffic))
Shown on MODEL 246
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Connect diagnostic system and perform initial startup of headlamp control unit (N71/1) | When replacing headlamp control unit (N71/1). | |
| AD00.00-P-2000-04A | |||
| 2 | Move front passenger seat toward rear | ||
| 3 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | ||

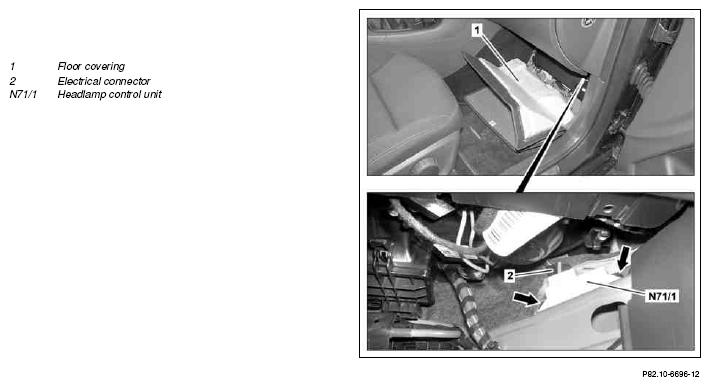

| 4 | Fold back floor covering (1) in front passenger footwell | ||
| 5 | Disconnect electrical connector (2) at headlamp control unit (N71/1) | ||
| 6 | Unscrew nuts (arrows) and remove headlamp control unit (N71/1) | ||
| 7 | Install in the reverse order |
