Overview of system components, telematics - GF82.85-P-9999KN

MODEL 117, 156, 176, 242, 246

Shown on model 246 without Dedicated Short-Range Communications (DSRC), Electronic Toll Collection (ETC), Vehicle Information and Communication System (VICS) and without speaker system, valid for model 246, 242, 117.3 as of 03.11.2014, model 156, 176 as of 01.09.2015, model 117.9

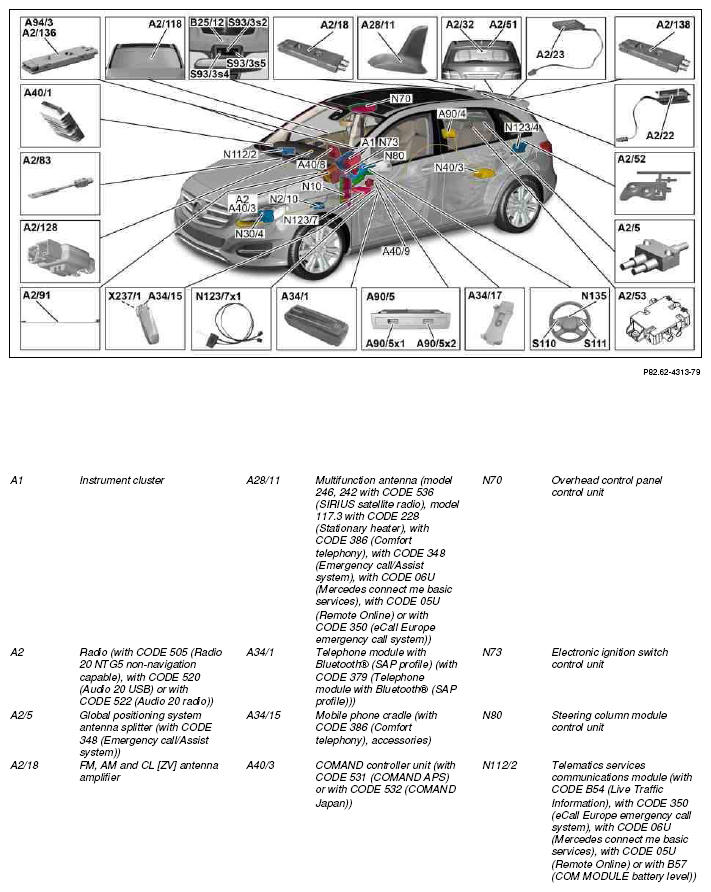

Fig 1: Overview Of Telematics System Components - Shown On Model 246 As Of 03.11.2014 (1 Of 2)
G10250534Courtesy of MERCEDES-BENZ USA

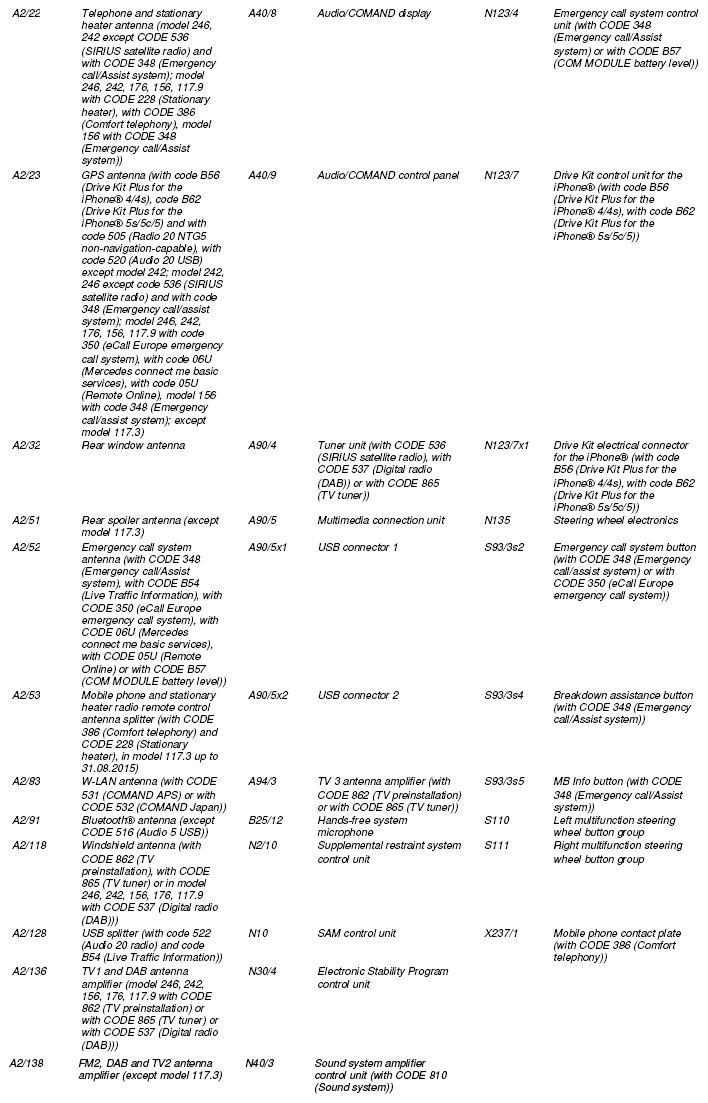

Fig 2: Overview Of Telematics System Components - Shown On Model 246 As Of 03.11.2014 (2 Of 2)
G10250535Courtesy of MERCEDES-BENZ USA

Shown on model 246 without Dedicated Short-Range Communications (DSRC), Electronic Toll Collection (ETC), Vehicle Information and Communication System (VICS) and without speaker system, valid for model 246, 242, 117.3 up to 02.11.2014 and model 156, 176 up to 31.08.2015

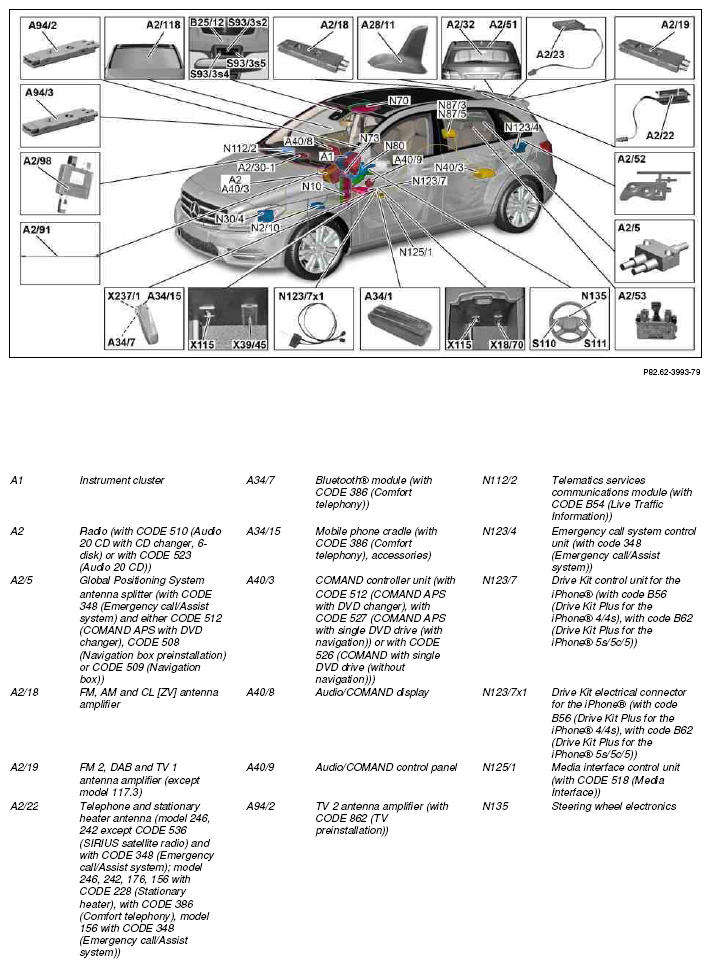

Fig 3: Overview Of Telematics System Components - Shown On Model 246 Up To 02.11.2014 (1 Of 2)
G10250536Courtesy of MERCEDES-BENZ USA

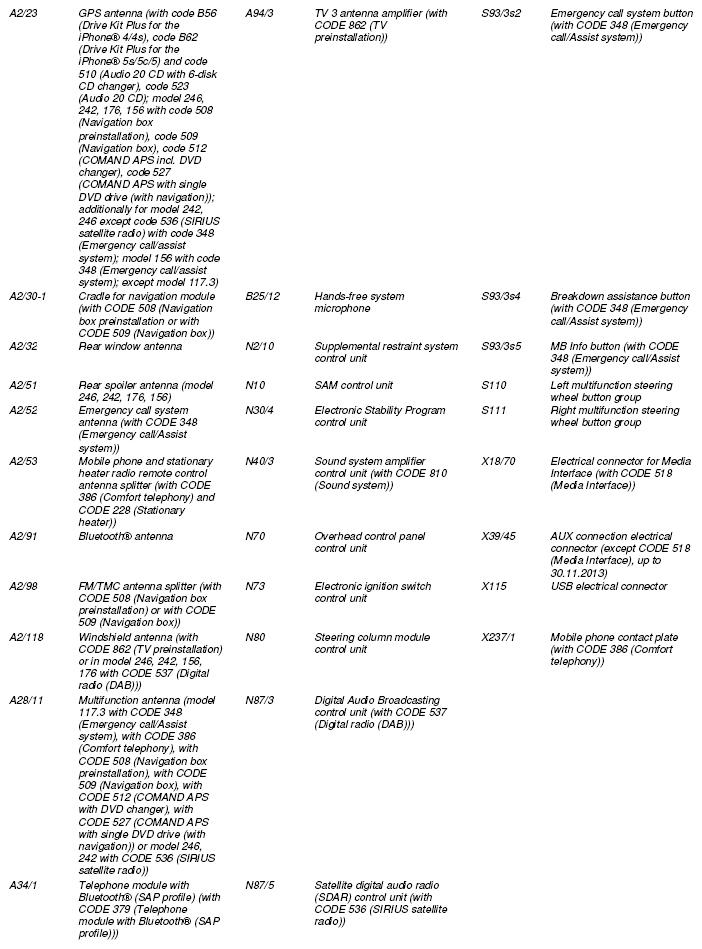

Fig 4: Overview Of Telematics System Components - Shown On Model 246 Up To 02.11.2014 (2 Of 2)
G10250537Courtesy of MERCEDES-BENZ USA

Shown on model 246 with Dedicated Short-Range Communications (DSRC), Electronic Toll Collection (ETC) or Vehicle Information and Communication System (VICS)

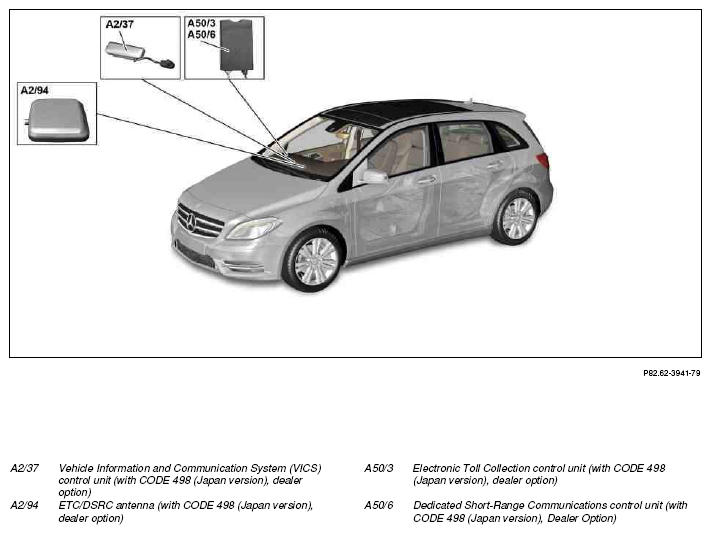

Fig 5: Overview Of Telematics System Components - Shown On Model 246
G10250538Courtesy of MERCEDES-BENZ USA

Model series-specific components on model 176

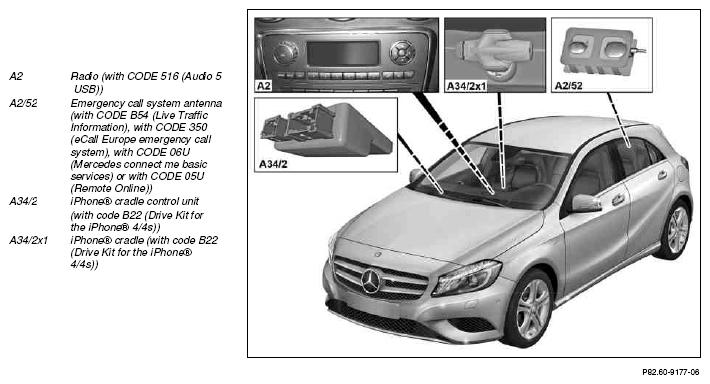

Fig 6: Overview Of Telematics System Components - Shown On Model 176
G10250539Courtesy of MERCEDES-BENZ USA

Model series-specific components on model 156

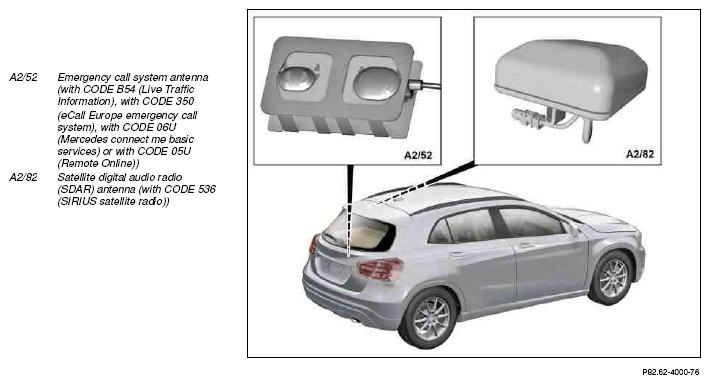

Fig 7: Overview Of Telematics System Components - Shown On Model 156
G10250540Courtesy of MERCEDES-BENZ USA

Model series-specific components on model 117.3 as of 03.11.2014

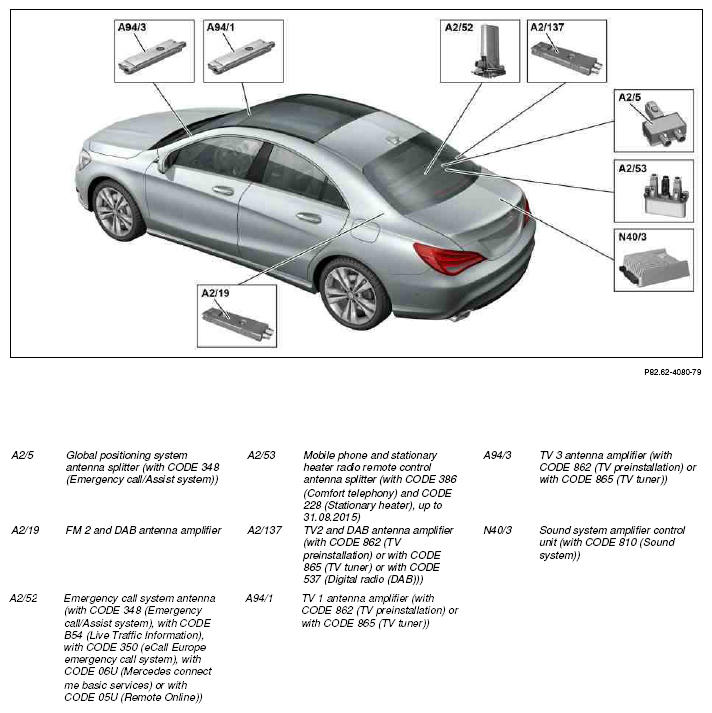

Fig 8: Overview Of Telematics System Components - Shown On Model 117.3 As Of 03.11.2014
G10250541Courtesy of MERCEDES-BENZ USA

Model series-specific components on model 117.3 up to 02.11.2013

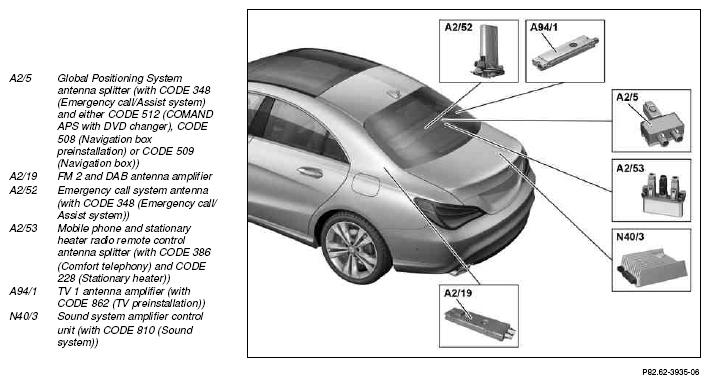

Fig 9: Overview Of Telematics System Components - Shown On Model 117.3 Up To 02.11.2013
G10250542Courtesy of MERCEDES-BENZ USA

Model series-specific components on model 242.890 (Electric vehicle)

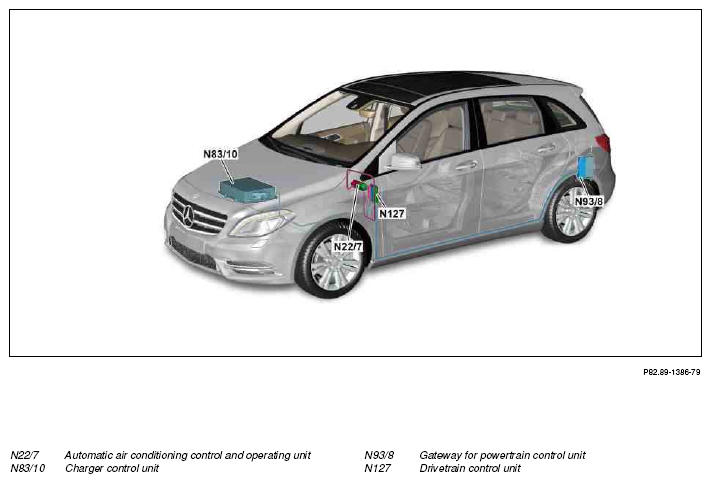

Fig 10: Overview Of Telematics System Components - Shown On Model 242.890
G10250543Courtesy of MERCEDES-BENZ USA

Speaker system, shown on model 246 except code 810 (Sound system)

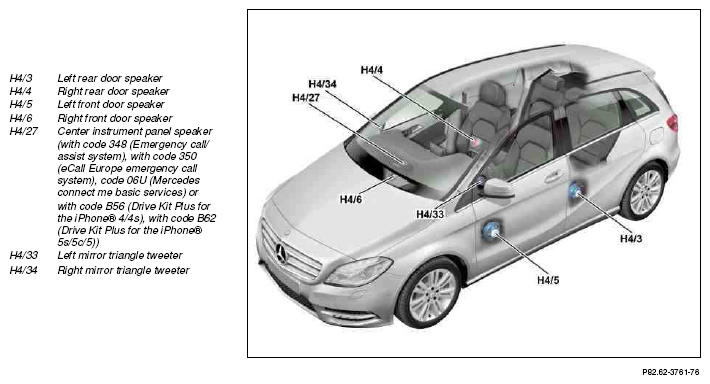

Fig 11: Speaker System Components - Shown On Model 246 (Except Code 810)
G10250544Courtesy of MERCEDES-BENZ USA

Speaker system, shown on model 246 with code 810 (Sound system)

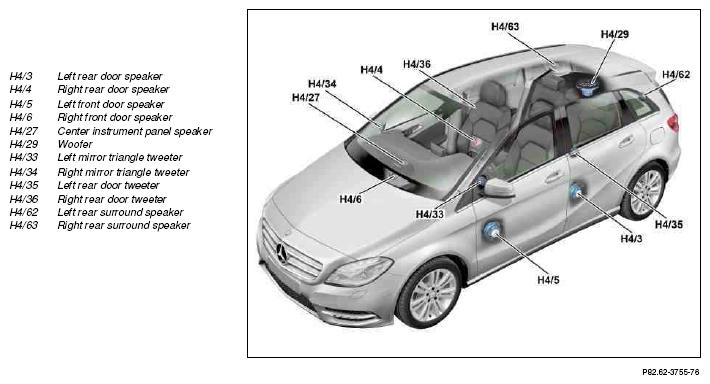

Fig 12: Speaker System Components - Shown On Model 246 (With Code 810)
G10250545Courtesy of MERCEDES-BENZ USA
  Component description for instrument cluster A1 GF54.30-P-6000KN
  Component description for the radio Model 117.3 up to 11/2/14, 242 up to 11/2/14, 246 up to 11/2/14
up to model year 2015
with code 510 (Audio 20 CD with 6-disc CD changer)
Model 117.3 up to 11/2/14, 242 up to 11/2/14, 246 up to 11/2/14
up to model year 2015
with code 523 (Audio 20 CD)
Model 156 up to 8/31/15
up to model year 2016
with code 510 (Audio 20 CD with 6-disc CD changer)
Model 156 up to 8/31/15
up to model year 2016
with code 523 (Audio 20 CD)
Model 176 up to 8/31/15
up to model year 2016
with code 510 (Audio 20 CD with 6-disc CD changer)
except code 516 (Audio 5 USB) except code 523 (Audio 20 CD)
Model 176 up to 8/31/15
up to model year 2016
with code 523 (Audio 20 CD)
except code 510 (Audio 20 CD with 6-disc CD changer)
except code 516 (Audio 5 USB) A2		 GF82.60-P-3122KN
Model 176
with code 516 (Audio 5 USB)
except code 510 (Audio 20 CD with 6-disc CD changer)
except code 523 (Audio 20 CD) A2		 GF82.60-P-3122KNA
Model 117.3 as of 11/3/14, 242 as of 11/3/14, 246 as of 11/3/14
as of model year 2015
with code 505 (Radio 20 NTG5, not navigation-enabled)
Model 117.3 as of 11/3/14, 242 as of 11/3/14, 246 as of 11/3/14
as of model year 2015
with code 520 (Audio 20 USB)
Model 117.3 as of 11/3/14, 242 as of 11/3/14, 246 as of 11/3/14
as of model year 2015
with code 522 (Audio 20 radio)
Model 117.9
with code 505 (Radio 20 NTG5, not navigation-enabled)
Model 117.9
with code 520 (Audio 20 USB)
Model 117.9
with code 522 (Audio 20 radio)
Model 156 as of 9/1/15
as of model year 2016
with code 505 (Radio 20 NTG5, not navigation-enabled)
Model 156 as of 9/1/15 as of model year 2016
with code 520 (Audio 20 USB)
Model 156 as of 9/1/15
as of model year 2016
with code 522 (Audio 20 radio)
Model 176 as of 9/1/15
as of model year 2016
with code 505 (Radio 20 NTG5, not navigation-enabled)
except code 516 (Audio 5 USB)
Model 176 as of 9/1/15
as of model year 2016
with code 520 (Audio 20 USB) except code 516 (Audio 5 USB)
Model 176 as of 9/1/15
as of model year 2016
with code 522 (Audio 20 radio) except code 516 (Audio 5 USB) A2		 GF82.60-P-3122KNM
  Cradle for navigation module, component description Model 117.3, 156, 176, 242, 246
with code 508 (Navigation box preinstallation)
Model 117.3, 156, 176, 242, 246
with code 509 (Navigation box) A2/30-1		 GF82.85-P-3137KN
  Mobile phone cradle control unit component description Model 176
with code 516 (Audio 5 USB)
with code B22 (Drive Kit for the iPhone® 4/4s) A34/2		 GF82.70-P-0201KN
  Component description for COMAND controller unit Model 117.3 up to 11/2/14, 242 up to 11/2/14, 246 up to 11/2/14
up to model year 2015
with code 498 (Japanese version)
with code 526 (COMAND with single DVD
drive (without navigation))
Model 117.3 up to 11/2/14, 242 up to 11/2/14, 246 up to 11/2/14
up to model year 2015
with code 512 (COMAND APS with DVD changer)
Model 117.3 up to 11/2/14, 242 up to 11/2/14, 246 up to 11/2/14
up to model year 2015
with code 527 (COMAND APS with single
DVD drive (with navigation))
Model 156 up to 8/31/15, 176 up to 8/31/15
up to model year 2016
with code 498 (Japanese version)
with code 526 (COMAND with single DVD drive (without navigation))
Model 156 up to 8/31/15, 176 up to 8/31/15
up to model year 2016
with code 512 (COMAND APS with DVD changer)
Model 156 up to 8/31/15, 176 up to 8/31/15
up to model year 2016
with code 527 (COMAND APS with single
DVD drive (with navigation)) A40/3		 GF82.85-P-3136KN
Model 117.3 as of 11/3/14, 242 as of 11/3/14, 246 as of 11/3/14
as of model year 2015
with code 531 (COMAND APS)
Model 117.3 as of 11/3/14, 242 as of 11/3/14, 246 as of 11/3/14
as of model year 2015
with code 532 (COMAND Japan)
Model 117.9
with code 531 (COMAND APS)
Model 117.9
with code 532 (COMAND Japan)
Model 156 as of 9/1/15, 176 as of 9/1/15 as of model year 2016
with code 531 (COMAND APS)
Model 156 as of 9/1/15, 176 as of 9/1/15 as of model year 2016
with code 532 (COMAND Japan) A40/3		 GF82.85-P-3136KNM
  Component description for Audio/COMAND display Model 117.3 up to 11/2/14, 242 up to 11/2/14, 246 up to 11/2/14
up to model year 2015
Model 156 up to 8/31/15
up to model year 2016
Model 176 up to 8/31/15
up to model year 2016
except code 516 (Audio 5 USB) A40/8		 GF54.30-P-6150KN
Model 117.3 as of 11/3/14, 242 as of 11/3/14, 246 as of 11/3/14
as of model year 2015
Model 117.9
Model 156 as of 9/1/15, 176 as of 9/1/15 as of model year 2016
A40/8		 GF54.30-P-6150KNM
  Component description for Audio/COMAND control panel Model 117, 156, 242, 246
Model 176
except code 516 (Audio 5 USB) A40/9		 GF54.21-P-4501KN
  Tuner unit, component description Model 117.3 as of 11/3/14, 242 as of 11/3/14, 246 as of 11/3/14
as of model year 2015
with code 536 (SIRIUS satellite radio)
Model 117.3 as of 11/3/14, 242 as of 11/3/14, 246 as of 11/3/14
as of model year 2015
with code 537 (Digital radio (DAB))
Model 117.3 as of 11/3/14, 242 as of 11/3/14, 246 as of 11/3/14
as of model year 2015
with code 865 (TV tuner)
Model 117.9
with code 537 (Digital radio (DAB))
Model 117.9
with code 865 (TV tuner)
Model 156 as of 9/1/15, 176 as of 9/1/15 as of model year 2016
with code 537 (Digital radio (DAB))
Model 156 as of 9/1/15, 176 as of 9/1/15 as of model year 2016
with code 865 (TV tuner)
Model 156 as of 9/1/15 as of model year 2016
with code 536 (SIRIUS satellite radio) A90/4		 GF82.60-P-5015KNM
  Supplemental restraint system control unit, component description N2/10 GF91.60-P-4080KN
  SAM control unit, component description N10 GF54.21-P-4157KN
  Component description for automatic air conditioning control and operating unit N22/7 GF83.40-P-3000KN
  Component description for Electronic Stability Program control unit N30/4 GF42.45-P-5119KN
  Component description for sound system amplifier control unit Model 117, 156, 176, 242, 246 with code 810 (Sound system) N40/3 GF82.62-P-5010KN
  Component description for overhead control panel control unit N70, S93/3s2, S93/3s4, S93/3s5 GF82.20-P-5216KN
  Component description for the electronic ignition lock control unit N73 GF80.57-P-6001KN
  Component description for steering column tube module control unit N80 GF54.21-P-6051KN
  High-voltage charger control unit, component description Model 242.890 with engine 780.990 N83/10 GF08.20-P-2000KN
  Component description for Digital Audio Broadcasting control unit Model 117.3 up to 11/2/14, 242 up to 11/2/14, 246 up to 11/2/14
up to model year 2015
with code 537 (Digital radio (DAB))
Model 156 up to 8/31/15, 176 up to 8/31/15
up to model year 2016
with code 537 (Digital radio (DAB)) N87/3		 GF82.62-P-5000KN
  Satellite digital audio radio (SDAR) control unit, component description Model 117.3 up to 11/2/14, 242 up to 11/2/14, 246 up to 11/2/14
up to model year 2015
with code 536 (SIRIUS satellite radio)
Model 156 up to 8/31/15
up to model year 2016
with code 536 (SIRIUS satellite radio) N87/5		 GF82.85-P-3121KNU
  Powertrain gateway control unit, component description Model 242.890 with engine 780.990
N93/8		 GF08.20-P-3007KN
  Telematics services communications module, component description Model 117.3 up to 11/2/14, 242 up to 11/2/14, 246 up to 11/2/14
up to model year 2015
with code B54 (Live Traffic Information)
Model 156 up to 8/31/15, 176 up to 8/31/15
up to model year 2016
with code B54 (Live Traffic Information) N112/2		 GF82.85-P-0220KN
Model 117.3 as of 11/3/14, 242 as of 11/3/14, 246 as of 11/3/14
as of model year 2015
with code 05U (Remote Online)
Model 117.3 as of 11/3/14, 242 as of 11/3/14, 246 as of 11/3/14
as of model year 2015
with code 06U (Mercedes connect me standard services)
Model 117.3 as of 11/3/14, 242 as of 11/3/14, 246 as of 11/3/14
as of model year 2015
with code 350 (Ecall emergency call system, Europe)
Model 117.3 as of 11/3/14, 242 as of 11/3/14, 246 as of 11/3/14
as of model year 2015
with code B54 (Live Traffic Information)
Model 117.9
with code 05U (Remote Online)
Model 117.9
with code 06U (Mercedes connect me
standard services)
Model 117.9
with code 350 (Ecall emergency call system, Europe)
Model 117.9
with code B54 (Live Traffic Information)
Model 156 as of 9/1/15, 176 as of 9/1/15 as of model year 2016
with code 05U (Remote Online)
Model 156 as of 9/1/15, 176 as of 9/1/15
as of model year 2016
with code 06U (Mercedes connect me standard services)
Model 156 as of 9/1/15, 176 as of 9/1/15 as of model year 2016
with code 350 (Ecall emergency call system, Europe)
Model 156 as of 9/1/15, 176 as of 9/1/15 as of model year 2016
with code B54 (Live Traffic Information)
Model 242.890 as of 11/29/14 as of model year 2015
with code B57 (KOM Module battery charging) N112/2		 GF82.85-P-0220KNM
  Component description for emergency call system control unit Model 117.3, 156, 242, 246 with code 348 (Emergency call/assistant system) N123/4 GF82.95-P-3212KNU
  Control unit of Drive Kit for mobile devices, component description Model 117, 156, 176, 246
with code B56 (Drive Kit Plus for the iPhone® 4/4s)
Model 117, 156, 176, 246
with code B62 (Drive Kit Plus for the iPhone® 5s/5c/5) N123/7		 GF82.70-P-3420KN
  Component description for media interface control unit Model 246
up to model year 2013
with code 518 (Media interface) N125/1		 GF82.60-P-5000KN
Model 117.3 up to 11/2/14, 242 up to 11/2/14
up to model year 2015
with code 518 (Media interface)
Model 156 up to 8/31/15, 176 up to 8/31/15
up to model year 2016
with code 518 (Media interface)
Model 246 as of 9/1/12 up to 11/2/14
as of model year 2013 up to model year 2015
with code 518 (Media interface)
N125/1		 GF82.60-P-5000KNA
  Drivetrain control unit, component description Model 242.890 with engine 780.990 N127 GF54.21-P-2141KN
  Table of contents for function description, telematics   GF82.85-P-0993KN
