| 1 |
Circuit 15, status |
24E |
| 10 |
Evaporator temperature sensor, signal |
22D |
| 11 |
Refrigerant pressure sensor, signal |
23A |
| 12 |
Sun sensor, signal |
9D |
| 12 |
Sun sensor, signal |
22F |
| 13 |
Air quality sensor, signal |
22C |
| 14 |
Vehicle speed, signal |
14J |
| 14 |
Vehicle speed, signal |
24F |
| 15 |
Engine speed, signal |
11L |
| 15 |
Engine speed, signal |
6L |
| 15 |
Engine speed, signal |
24F |
| 16 |
Door rotary tumbler switch, status |
28E |
| 17 |
Side window position, signal |
28E |
| 18 |
Sliding roof position, signal |
29E |
| 19 |
Operation, signal |
27B |
| 19 |
Operation, signal |
22C |
| 19 |
Operation, signal |
20J |
| 19 |
Operation, signal |
13H |
| 19 |
Operation, signal |
12H |
| 19 |
Operation, signal |
18H |
| 19 |
Operation, signal |
25E |
| 2 |
Engine running, signal |
12L |
| 2 |
Engine running, signal |
16J |
| 2 |
Engine running, signal |
7L |
| 2 |
Engine running, signal |
24E |
| 20 |
Audio/COMAND display, actuation |
23H |
| 21 |
Low voltage differential signal video signal data transfer, signal |
23G |
| 22 |
Voice input, signal |
25E |
| 22 |
Voice input, signal |
13H |
| 23 |
Central air distribution position detection microswitch, status |
22D |
| 24 |
Switch on ionization, request |
14H |
| 24 |
Switch on ionization, request |
25E |
| 25 |
Switch on perfume atomizer, request |
14H |
| 25 |
Switch on perfume atomizer, request |
25F |
| 26 |
Perfume atomizer intensity, request |
15H |
| 26 |
Perfume atomizer intensity, request |
25F |
| 27 |
High-voltage battery cooling output, request |
11K |
| 27 |
High-voltage battery cooling output, request |
7K |
| 27 |
High-voltage battery cooling output, request |
23G |
| 28 |
High-voltage battery cooling system expansion valve, status |
23G |
| 28 |
High-voltage battery cooling system expansion valve, status |
10K |
| 29 |
Evaporator drying, request |
14J |
| 29 |
Evaporator drying, request |
23F |
| 3 |
Outside temperature sensor, signal |
10C |
| 30 |
Crash, signal |
11J |
| 30 |
Crash, signal |
23F |
| 4 |
Outside temperature, signal |
22E |
| 5 |
Interior temperature, signal |
12C |
| 5 |
Interior temperature, signal |
22E |
| 6 |
Air outlet temperature sensor, signal |
27C |
| 7 |
Dew point temperature, signal |
9C |
| 7 |
Dew point temperature, signal |
22G |
| 8 |
Coolant temperature sensor, signal |
4F |
| 9 |
Coolant temperature, signal |
12L |
| 9 |
Coolant temperature, signal |
7L |
| 9 |
Coolant temperature, signal |
24F |
| 9 |
Coolant temperature, signal |
24F |

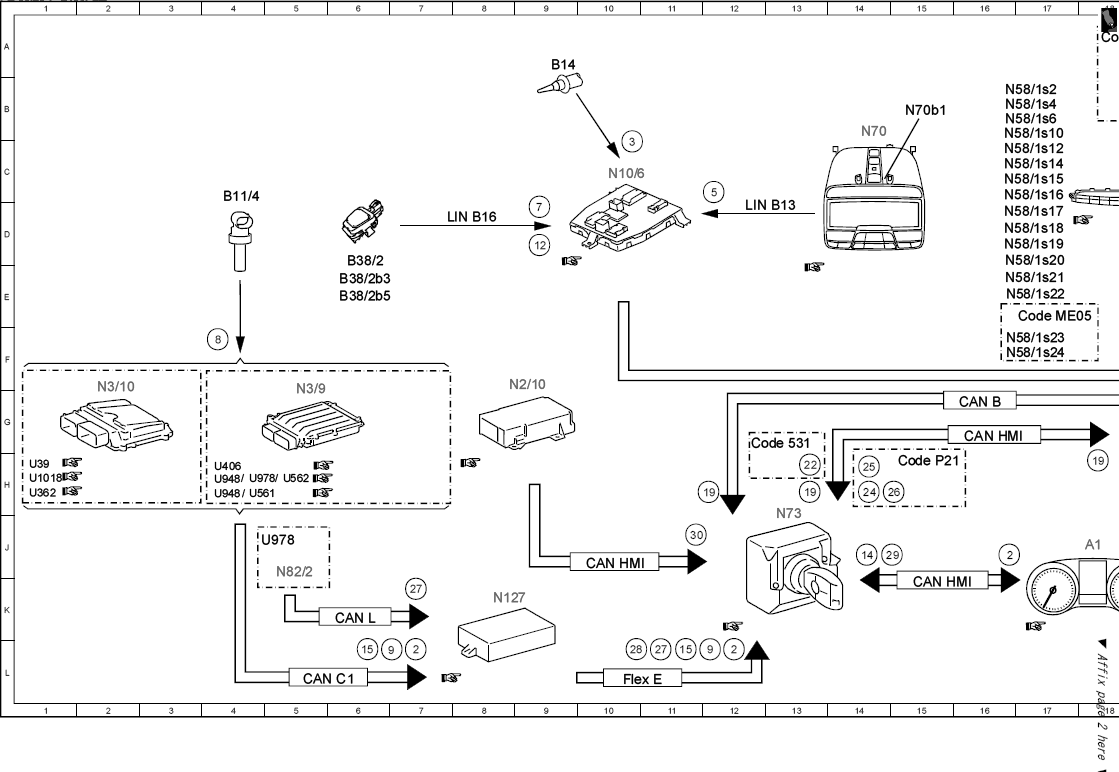

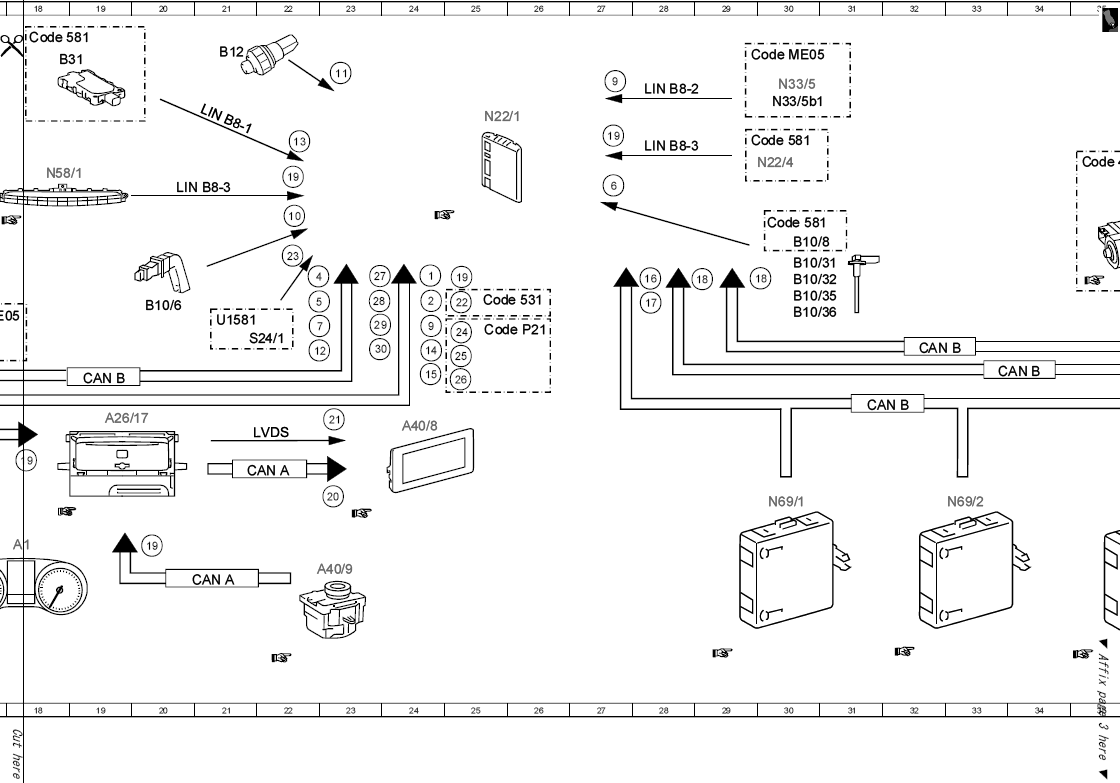

| A1 |
Instrument cluster |
18J |
| A26/17 |
Head unit |
19G |
| A40/8 |
Audio/COMAND display |
24G |
| A40/9 |
Audio/COMAND control panel |
23J |

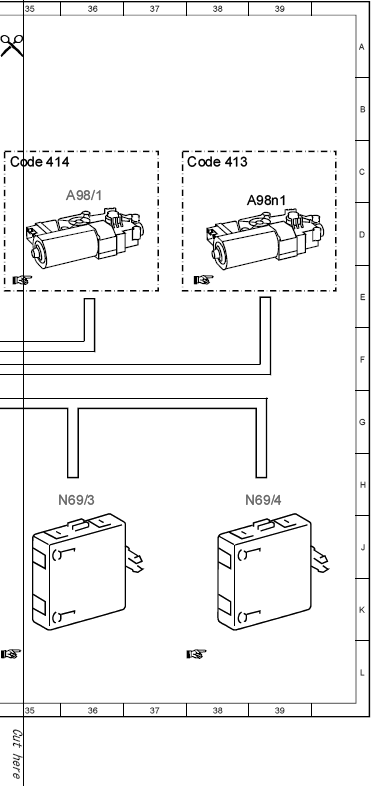

| A98/1 |
Sliding roof control module |
36C |
| A98n1 |
Panoramic sliding roof control unit |
38D |
| B10/31 |
Left side air outlet temperature sensor |
30E |
| B10/32 |
Right side air outlet temperature sensor |
30E |
| B10/35 |
Left footwell air outlet temperature sensor |
30E |
| B10/36 |
Right footwell air outlet temperature sensor |
30E |
| B10/6 |
Evaporator temperature sensor |
20E |
| B10/8 |
Rear center air vent air outlet temperature sensor |
30D |
| B11/4 |
Coolant temperature sensor |
4C |
| B12 |
Refrigerant pressure sensor |
21A |
| B14 |
Outside temperature sensor |
9A |
| B31 |
Air quality sensor |
18A |
| B38/2 |
Rain/light sensor with additional functions |
6D |
| B38/2b3 |
Humidity/temperature sensor |
6E |
| B38/2b5 |
Sun sensor |
6E |
| CAN A |
Telematics CAN |
21K |
| CAN A |
Telematics CAN |
22H |
| CAN B |
Interior CAN |
19F |
| CAN B |
Interior CAN |
16G |
| CAN B |
Interior CAN |
32F |
| CAN B |
Interior CAN |
34F |
| CAN B |
Interior CAN |
31G |
| CAN C1 |
Drive train CAN |
5L |
| CAN HMI |
User interface CAN |
16G |
| CAN HMI |
User interface CAN |
10J |
| CAN HMI |
User interface CAN |
15K |
| CAN L |
Hybrid CAN |
6K |
| Code 413 |
Panoramic sliding sunroof |
38C |
| Code 414 |
Sliding roof |
35C |
| Code 531 |
COMAND APS |
12G |
| Code 531 |
COMAND APS |
25E |
| Code 581 |
THERMOTRONIC automatic air conditioning |
29C |
| Code 581 |
THERMOTRONIC automatic air conditioning |
30D |
| Code 581 |
THERMOTRONIC automatic air conditioning |
18A |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
17E |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
29A |
| Code P21 |
AIR-BALANCE package |
15H |
| Code P21 |
AIR-BALANCE package |
25F |
| Flex E |
Chassis FlexRay |
10L |
| LIN B13 |
Roof LIN |
12D |
| LIN B16 |
Rain and light sensor LIN |
8D |
| LIN B8-1 |
Climate control LIN 1 |
21B |
| LIN B8-2 |
Climate control LIN 2 |
28B |
| LIN B8-3 |
AC operation LIN |
20C |
| LIN B8-3 |
AC operation LIN |
28C |
| LVDS |
Low voltage differential signal |
22G |
| N10/6 |
Front SAM control unit |
10C |
| N127 |
Drivetrain control unit |
8K |
| N2/10 |
Supplemental restraint system control unit |
9F |
| N22/1 |
Climate control unit |
25B |
| N22/4 |
Rear air conditioning operating unit |
29C |
| N3/10 |
ME-SFI [ME] control unit |
2G |
| N3/9 |
CDI control unit |
5G |
| N33/5 |
High-voltage PTC heater |
30B |
| N33/5b1 |
High-voltage PTC heater temperature sensor |
30B |
| N58/1 |
Climate control operating unit |
18C |
| N58/1s10 |
Right temperature selection button |
17B |
| N58/1s12 |
Climate control menu button |
17C |
| N58/1s14 |
Air distribution button, left |
17C |
| N58/1s15 |
"SYNC" button |
17C |
| N58/1s16 |
"A/C" button |
17C |
| N58/1s17 |
Air distribution button, right |
17D |
| N58/1s18 |
Button "A/C" and residual heat on/off |
17D |
| N58/1s19 |
Blower button, front |
17D |
| N58/1s2 |
Left temperature selection button |
17B |
| N58/1s20 |
AUTO button, front |
17D |
| N58/1s21 |
Defrosting button |
17E |
| N58/1s22 |
Air distribution button |
17E |
| N58/1s23 |
Pre-air conditioning button |
17F |
| N58/1s24 |
Temperature selection button |
17F |
| N58/1s4 |
Air recirculation mode button |
17B |
| N58/1s6 |
Climate control menu and residual heat on/off button |
17B |
| N69/1 |
Left front door control unit |
30H |
| N69/2 |
Right front door control unit |
33H |
| N69/3 |
Left rear door control unit |
36H |
| N69/4 |
Right rear door control unit |
39H |
| N70 |
Overhead control panel control unit |
14B |
| N70b1 |
Interior temperature sensor with integrated fan |
15B |
| N73 |
Electronic ignition switch control unit |
13J |
| N82/2 |
Battery management system control unit |
5J |
| S24/1 |
Central air distribution position detection microswitch |
22F |
| U1018 |
Valid for gasoline engine 276 |
1H |
| U1581 |
Valid without code (581) THERMOTRONIC automatic air conditioning |
21E |
| U362 |
Valid for gasoline engine 274 |
1H |
| U39 |
Valid for gasoline engine 177 |
1H |
| U406 |
Valid for diesel engine 626 |
4H |
| U561 |
Valid for Delphi system |
4H |
| U562 |
Valid for Bosch system |
5H |
| U948 |
Valid for diesel engine 651 |
4H |
| U948 |
Valid for diesel engine 651 |
4H |
| U978 |
Valid for hybrid drive |
4J |
| U978 |
Valid for hybrid drive |
4H |
