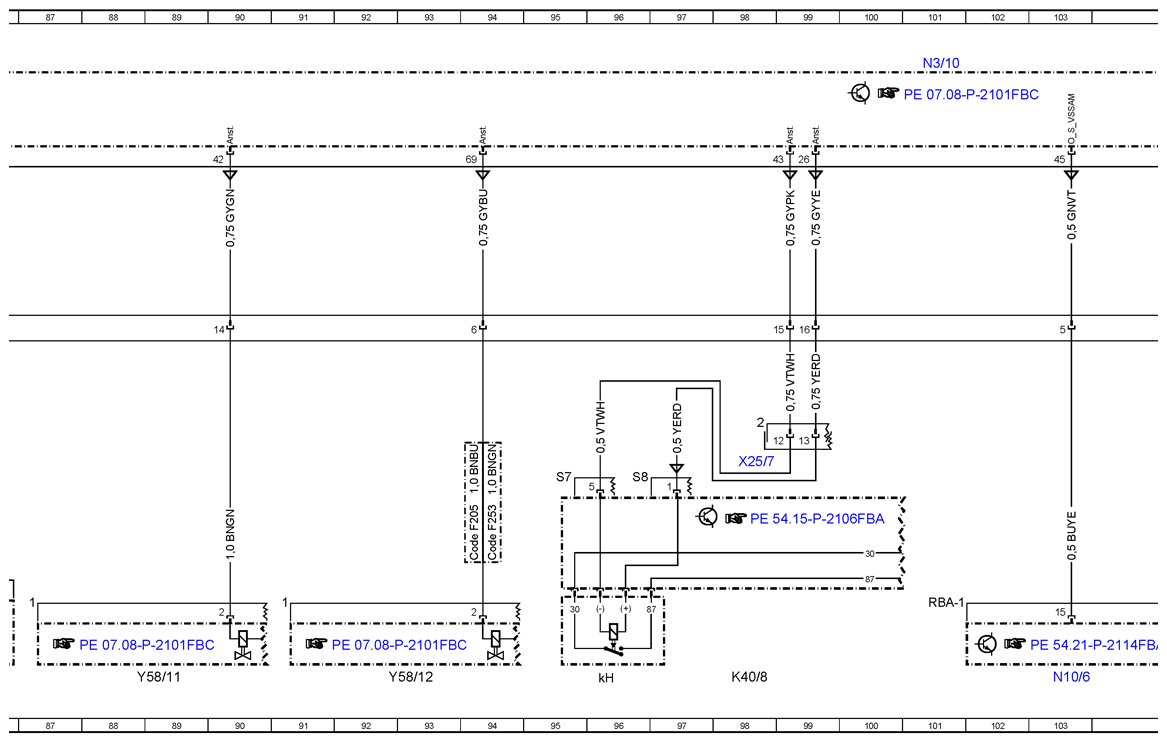

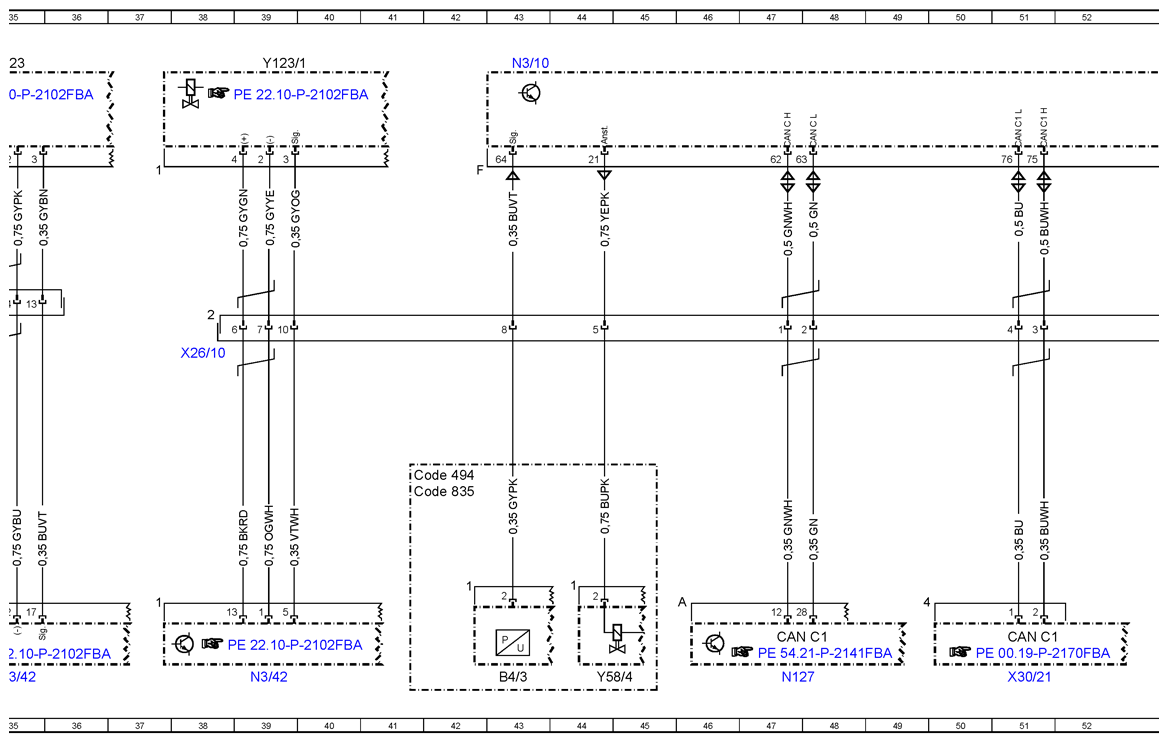

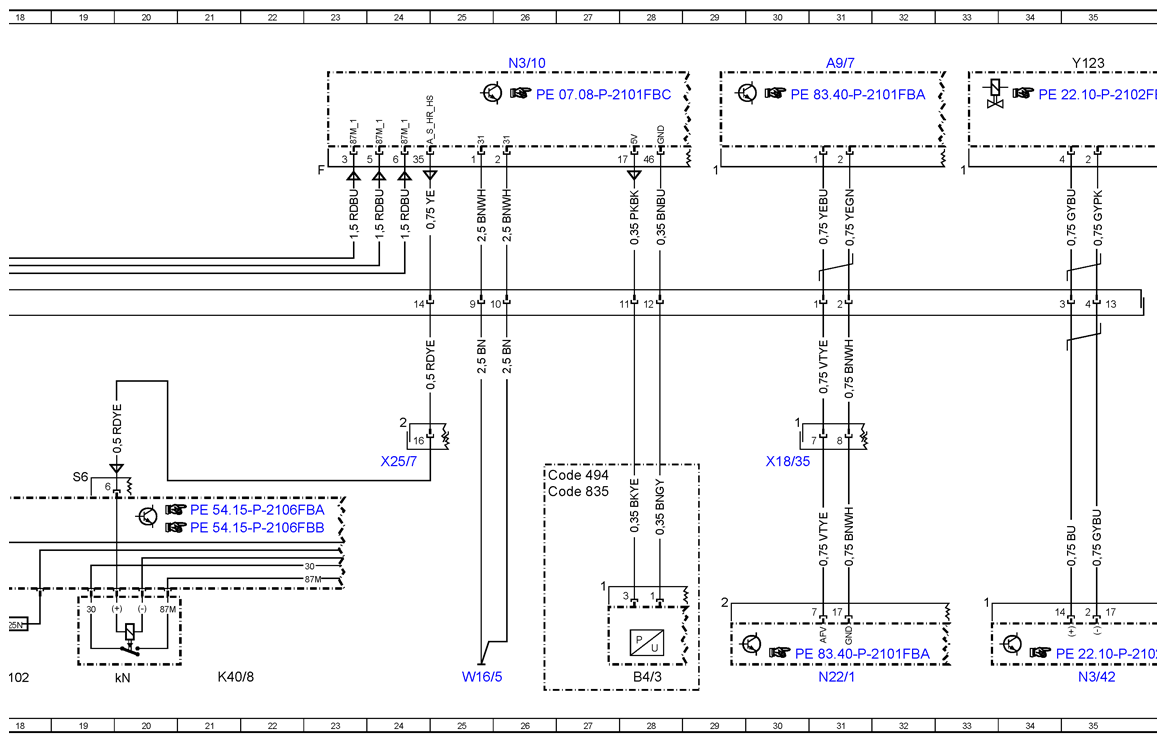

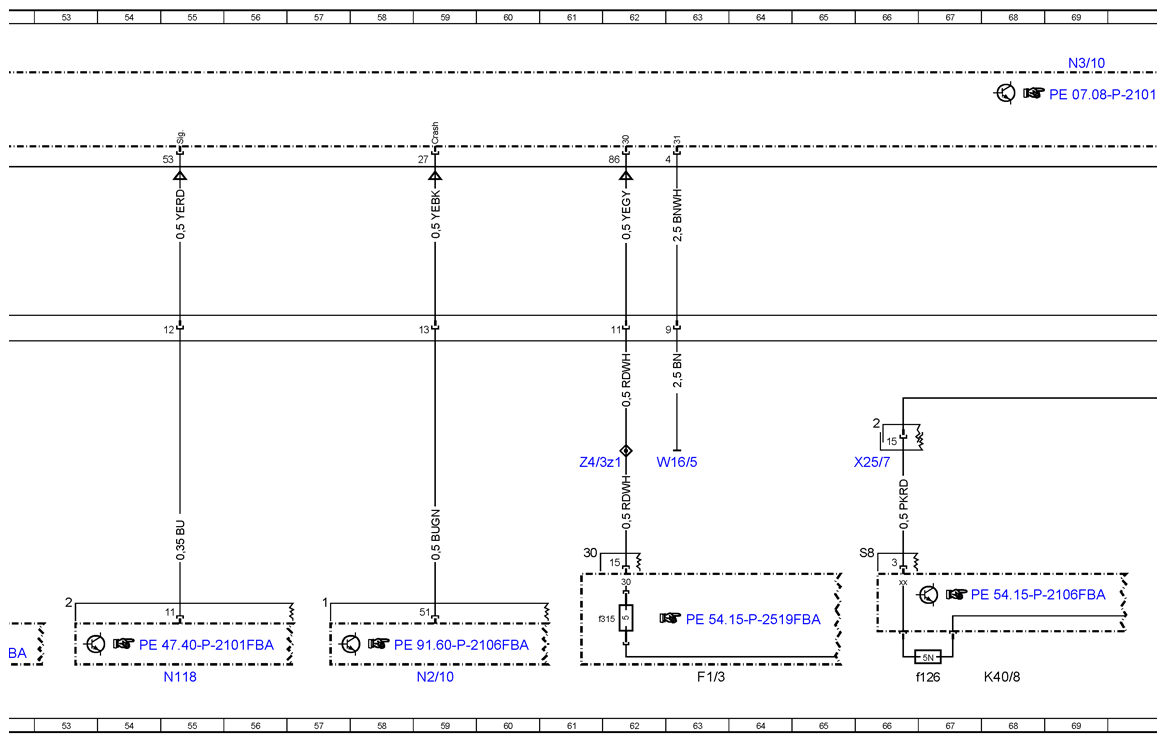

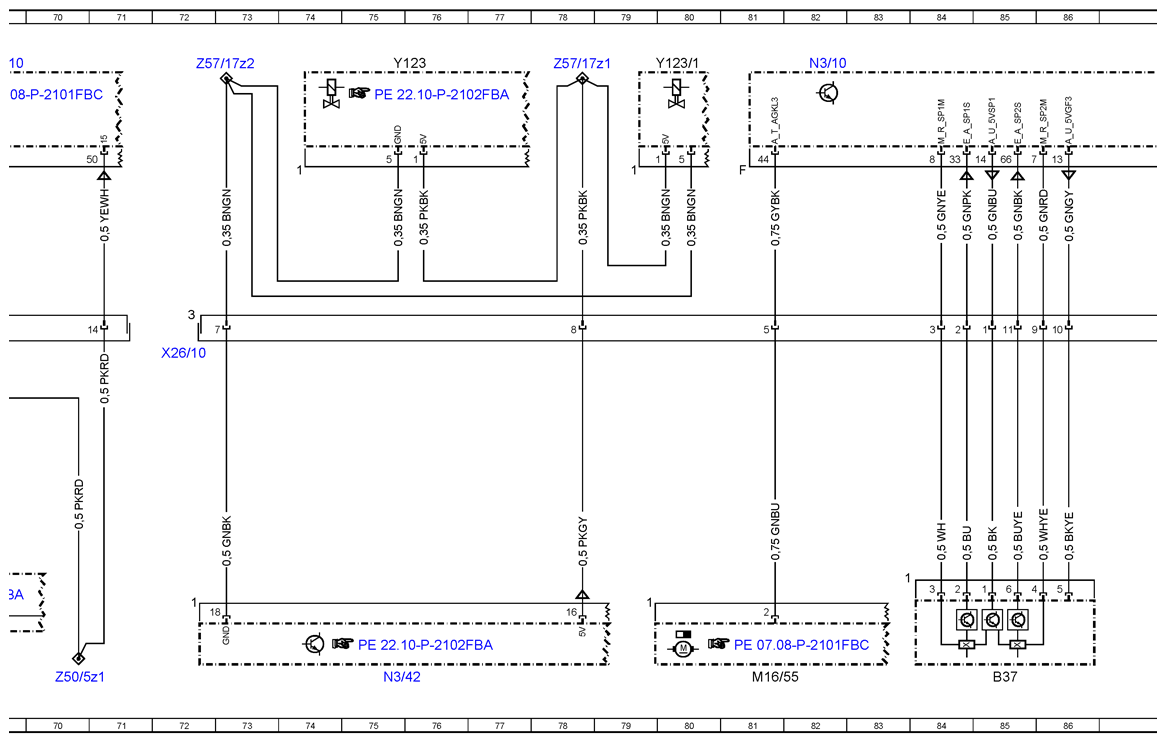

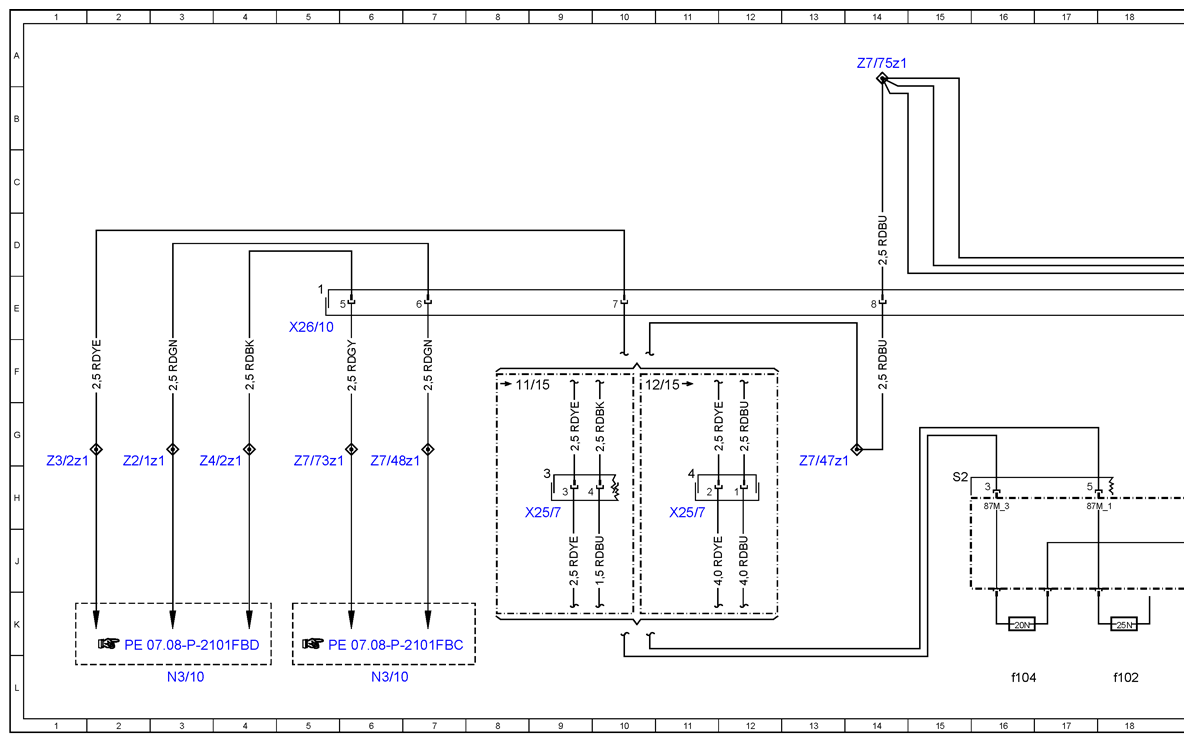

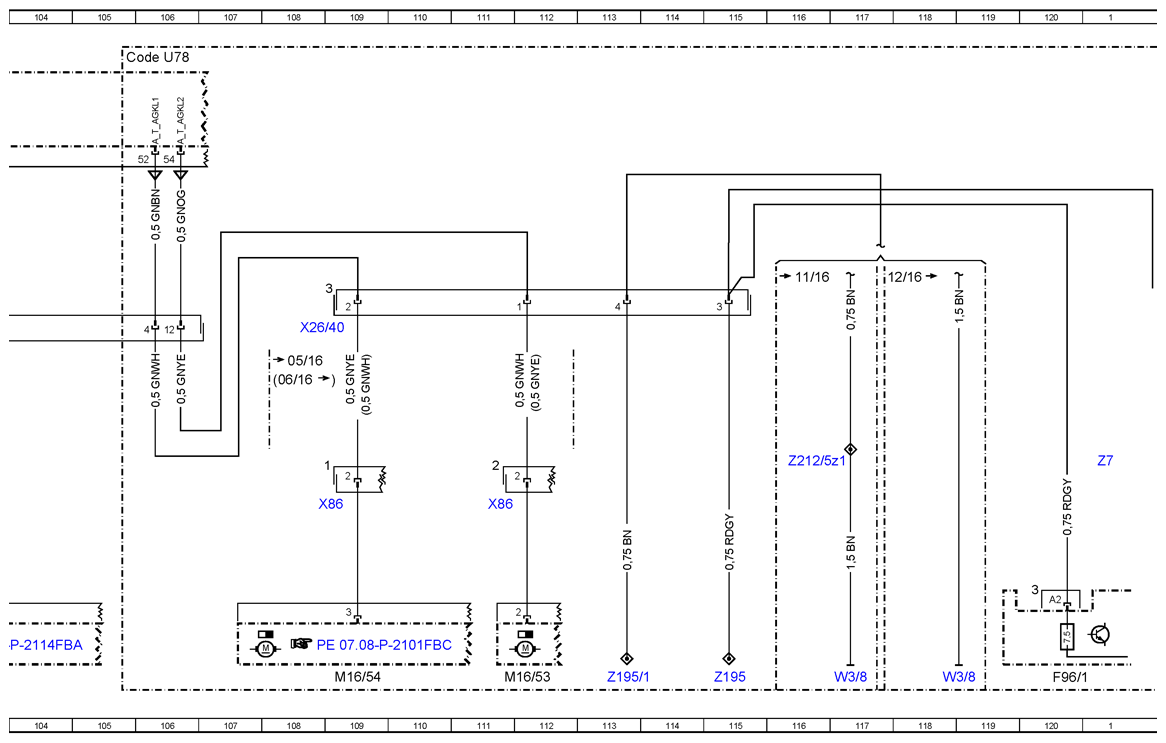

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97FBJ
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to model year 2019 X26/10 Model 253 (except 253.99) up to model year 2020 X26/10
| Code: | Designation: | Position: |
|---|---|---|

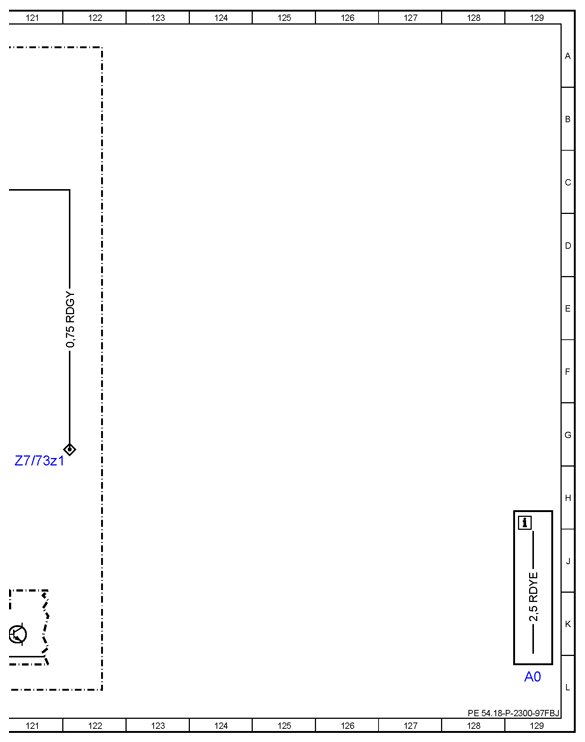

| A0 | Use of wiring diagrams | 129L |
| A9/7 | Refrigerant compressor with magnetic clutch | 31A |
| B37 | Accelerator pedal sensor | 85L |
| B4/3 | Fuel tank pressure sensor | 28L |
| B4/3 | Fuel tank pressure sensor | 43L |
| CAN C1 | Drivetrain CAN | 47K |
| CAN C1 | Drivetrain CAN | 51K |
| Code 494 | USA version | 26H |
| Code 494 | USA version | 41H |
| Code 835 | Additional parts for South Korea vehicles | 41H |
| Code 835 | Additional parts for South Korea vehicles | 26H |
| Code F205 | MODEL SERIES 205 | 94J |
| Code F253 | MODEL SERIES 253 | 94J |
| Code U78 | Switchable exhaust system | 105A |
| F1/3 | Passenger-side A-pillar fuse box | 63L |
| F1/3f315 | Fuse 315 | 61K |
| F96/1 | Exhaust flaps circuit 87 fuses | 120L |
| K40/8 | Engine fuse and relay module | 21L |
| K40/8 | Engine fuse and relay module | 68L |
| K40/8 | Engine fuse and relay module | 98L |
| K40/8f102 | Fuse 102 | 18L |
| K40/8f104 | Fuse 104 | 16L |
| K40/8f126 | Fuse 126 | 67L |
| K40/8kH | Starter circuit 50 relay | 96L |
| K40/8kN | Circuit 87M relay | 20L |
| M16/53 | Left exhaust flap actuator motor | 112L |
| M16/54 | Right exhaust flap actuator motor | 109L |
| M16/55 | Center exhaust flap actuator motor | 81L |
| N10/6 | Front SAM control unit | 103L |
| N118 | Fuel pump control unit | 55L |
| N127 | Drivetrain control unit | 47L |
| N2/10 | Supplemental restraint system control unit | 59L |
| N22/1 | Climate control, control unit | 31L |
| N3/10 | ME-SFI [ME] control unit | 3L |
| N3/10 | ME-SFI [ME] control unit | 6L |
| N3/10 | ME-SFI [ME] control unit | 26A |
| N3/10 | ME-SFI [ME] control unit | 43A |
| N3/10 | ME-SFI [ME] control unit | 69A |
| N3/10 | ME-SFI [ME] control unit | 82A |
| N3/10 | ME-SFI [ME] control unit | 101A |
| N3/42 | Active engine mounts control unit | 35L |
| N3/42 | Active engine mounts control unit | 39L |
| N3/42 | Active engine mounts control unit | 75L |
| W16/5 | Left major assembly compartment electronics ground point | 25L |
| W16/5 | Left major assembly compartment electronics ground point | 63H |
| W3/8 | Right rear wheel well ground point | 117L |
| W3/8 | Right rear wheel well ground point | 118L |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 30H |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 9H |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 11H |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 24H |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 66H |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 98H |
| X26/10 | Vehicle interior/engine electrical connector | 5E |
| X26/10 | Vehicle interior/engine electrical connector | 38F |
| X26/10 | Vehicle interior/engine electrical connector | 72F |
| X26/40 | Rear frame floor assembly/bumper electrical connector | 108E |
| X30/21 | Drivetrain CAN (CAN C1) potential distributor electrical connector | 51L |
| X86 | Exhaust flap electrical connector | 109H |
| X86 | Exhaust flap electrical connector | 111H |
| Y123 | Left active engine mount | 35A |
| Y123 | Left active engine mount | 75A |
| Y123/1 | Right active engine mount | 39A |
| Y123/1 | Right active engine mount | 80A |
| Y58/11 | Left purge control valve | 89L |
| Y58/12 | Right purge control valve | 93L |
| Y58/4 | Activated charcoal filter shutoff valve | 44L |
| Z195 | Exhaust flap terminal 87/4 connector sleeve | 115L |
| Z195/1 | Exhaust flap ground connection connector sleeve | 113L |
| Z2/1z1 | Terminal 87/2 | 2G |
| Z212/5z1 | Circuit 31 connector sleeve | 116G |
| Z3/2z1 | Circuit 87/3 connector sleeve | 1G |
| Z4/2z1 | Terminal 87/4 | 4G |
| Z4/3z1 | Tml. 30 connector sleeve | 61H |
| Z50/5z1 | Tml. 15 connector sleeve | 70L |
| Z57/17z1 | Engine mount connector sleeve | 78A |
| Z57/17z2 | Engine mount connector sleeve | 72A |
| Z7/47z1 | Circuit 87/1 connector sleeve | 13G |
| Z7/48z1 | Circuit 87/2 connector sleeve | 6G |
| Z7/73Z1 | Circuit 87/4 connector sleeve | 5G |
| Z7/73z1 | Circuit 87/4 connector sleeve | 121G |
| Z7/75z1 | Circuit 87/3 connector sleeve | 14A |
