Remove/Install Side Airbag In The Rear - AR91.60-P-0694CLW
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.3/4
with code 298 (Rear sidebag with belt force limiter)
Model 238
with code 293 (Sidebag in rear left and right)

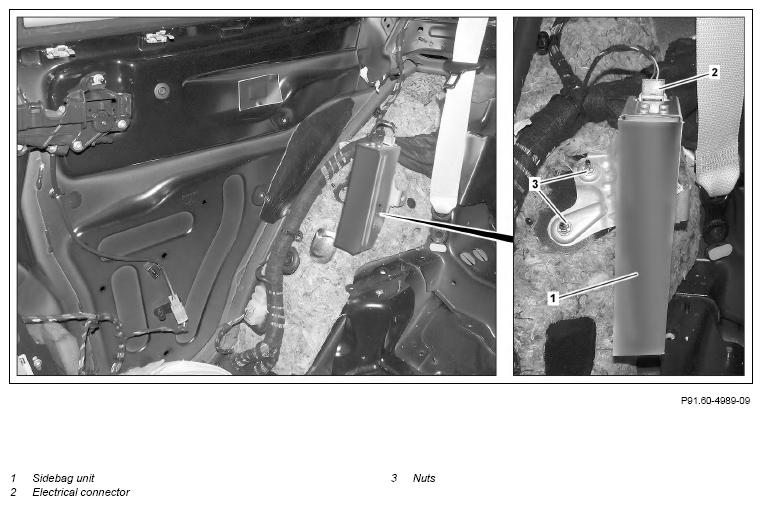

Shown on right side of vehicle, model 205.3
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. |
AS91.00-Z-0008-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Remove rear passenger compartment side trim panel | Model 205.3 with code 298 (Rear sidebag with belt force limiter) |
AR68.30-P-4780CLW |
| Model 205.4 with code 298 (Rear sidebag with belt force limiter) |
AR68.30-P-4784LWR | ||
| Model 238 with code 293 (Sidebag in rear left and right) |
AR68.30-P-4784LWO | ||
| 2 | Disconnect battery ground line | Model 205.3/4 with code 298 (Rear sidebag with belt force limiter) |
AR54.10-P-0003LW |
| Model 238 with code 293 (Sidebag in rear left and right) |
AR54.10-P-0003LWO | ||
| 3 | Release and disconnect electrical connector (2) at sidebag unit (1) | Ensure correct engagement of electrical connector (2) at sidebag unit (1). Otherwise, proper operation of the sidebag unit (1) cannot be ensured. |
|
| 4 | Unscrew nuts (3) | *BA91.60-P-1005-01O | |
| 5 | Remove side airbag unit (1) | ||
| 6 | Install in the reverse order | ||
| 7 | Check Supplemental Restraint System (SRS) with diagnostic system | When replacing the sidebag unit (1). | |
| Model 205.3/4 with code 298 (Rear sidebag with belt force limiter) |
AD00.00-P-2000-04B | ||
| Model 238 with code 293 (Sidebag in rear left and right) |
AD00.00-P-2000-06LWO |
AIRBAG
| Number | Designation | Model 205.0/1/2/3 | Model 205.4 | |
|---|---|---|---|---|
| BA91.60-P-1005-01O | Nut, rear sidebag unit to body | Nm | 6 | 6 |
AIRBAG
| Number | Designation | Model 238 | |
|---|---|---|---|
| BA91.60-P-1005-01O | Nut, rear sidebag unit to body | Nm | 6 |
