Remove/install seat adjustment controls - AR91.29-P-1700LW
Model 205.0/1/2, 253 with code 221 (Electrically adjustable left driver seat)
Model 205.0/1/2, 253 with code 222 (Electrically adjustable right front seat)
Model 205.0/1/2, 253 with code 275 (Driver's seat, electrically adjustable with memory function)
Model 205.0/2, 253 with code 241 (Memory switch for electrically adjustable driver seat, left)
Model 205.0/2, 253 with code 242 (Front passenger seat, electrically adjustable with memory function)

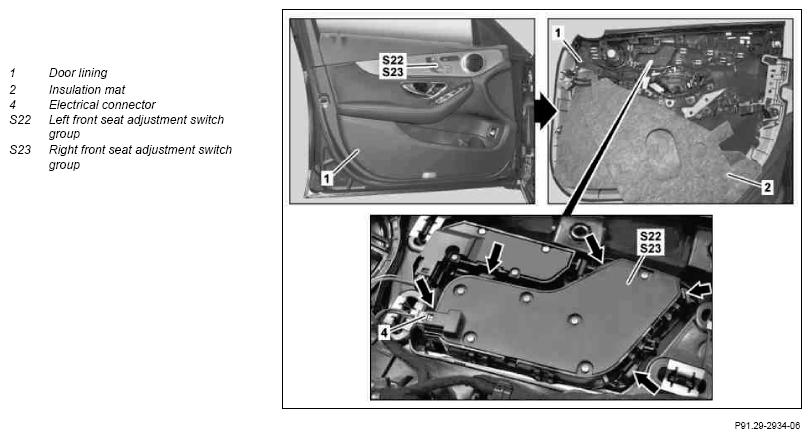

Shown on left side of vehicle
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove door lining (1) on left and right front door | AR72.10-P-1000LW | |
| 2 | Partially unhook insulation mat (2) from door lining (1) | ||
| 3 | Disconnect electrical connector (4) from left front switch group, seat adjustment (S22) or right front switch group, seat adjustment (S23) | ||
| 4 | Release left front switch group, seat adjustment (S22) or right front switch group, seat adjustment (S23) (arrows) and remove | ||
| 5 | Install in the reverse order |
