Remove/install remote trunk closing button - AR88.50-P-5075LW
MODEL 205.0/1 with CODE 881 (Remote boot lid closing)
Shown on MODEL 205.0 with CODE 889 (KEYLESS-GO)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Open luggage compartment lid | ||

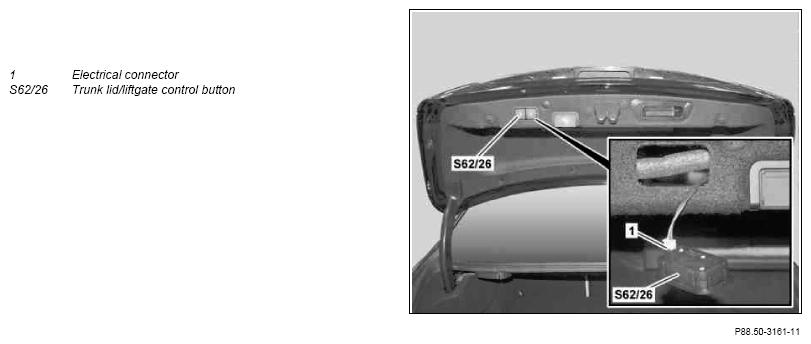

| 2 | Unclip trunk lid/liftgate control button (S62/26) | ||
| 3 | Disconnect electrical connector (1) | ||
| 4 | Remove trunk lid/liftgate control button (S62/26) | ||
| 5 | Install in the reverse order |
