Remove/install longitudinal member paneling - AR88.80-P-6000LW

MODEL 205

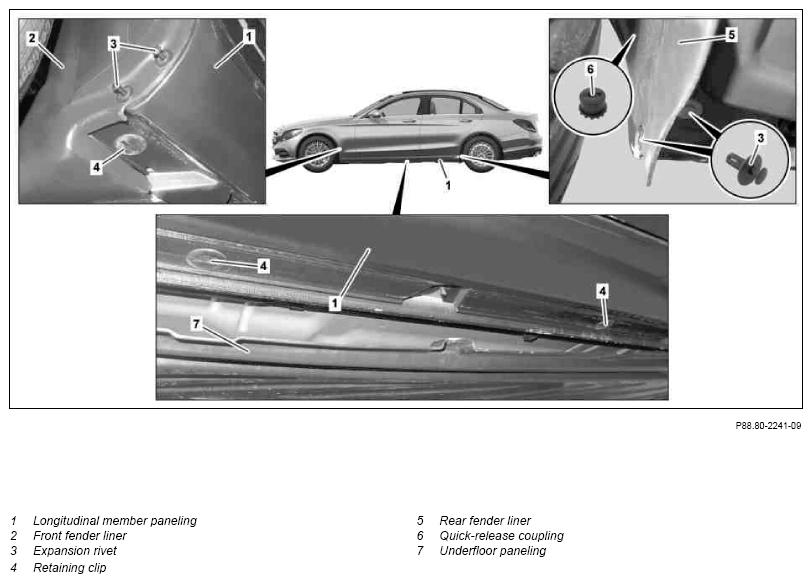

Fig 1: Identifying Longitudinal Member Paneling Remove/Install Components - Shown On Model 205.0

Courtesy of MERCEDES-BENZ USA

Shown on model 205.0

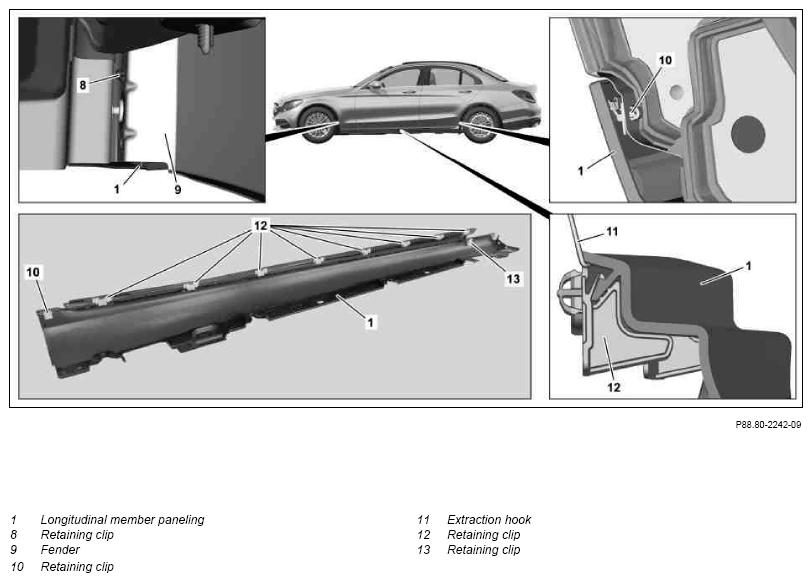

Fig 2: Identifying Longitudinal Member Paneling Remove/Install Components - Shown On Model 205.0

Courtesy of MERCEDES-BENZ USA

Shown on model 205.0

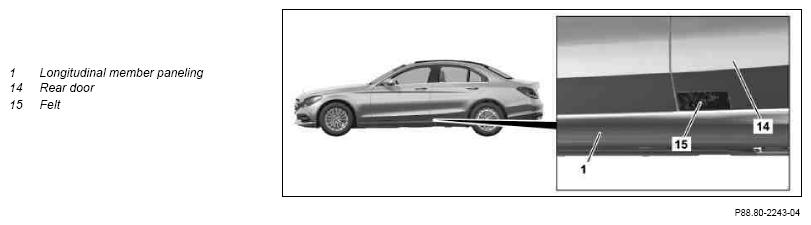

Fig 3: Identifying Longitudinal Member Paneling Remove/Install Components - Shown On Model 205.0

Courtesy of MERCEDES-BENZ USA

Shown on model 205.0

	Remove/install
1	Detach underfloor paneling (7) in area of longitudinal member paneling (1) and pull downward over mounting bolts		AR61.30-P-1001LW
2	Remove expansion rivet (3)
3	Unscrew quick-release coupling (6)	Press on quick-release coupling (6) to end stop.
4	Remove expansion rivet (3)
5	Turn retaining clips (4) 90° and remove
6	Open front door and rear door
7	Mask rear door (14) in lower rear of felt (15)	Felt strip	*BR00.45-Z-1150-02A
8	Press front fender liner (2) to side until retaining clip (8) below is accessible
9	Unclip retaining clip (8) from fender (9) with suitable pliers
10	Unclip longitudinal member paneling (1) starting at rear upward from retaining clips (10, 12 and 13) with extraction hook (11)	Extraction hook	Figure
11	Remove longitudinal member paneling (1)
12	Remove retaining clip (8) from longitudinal member paneling (1) and clip into fender (9)	Retaining clip (13) remains on fender. Replace damaged retaining clips (8, 13).
13	Remove retaining clips (10, 12) remaining on vehicle and install on longitudinal member panel (1)	Turn retaining clip (10) 90° with suitable pliers and remove from vehicle. Remove damaged retaining clips (10, 12).
14	Install in the reverse order

Fig 4: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
