Remove/install rear bumper - AR88.20-P-2200LW

Model 205.0/1

21.4.15

"Remove, install left rear lamp unit and right rear lamp unit" added

Operation step 2

Shown on MODEL 205.0

Shown on MODEL 205.0

Shown on MODEL 205.0

Shown on MODEL 205.0

Shown on MODEL 205.0

MODEL 205 with CODE U78 (AMG sport exhaust system)

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
	Remove/install
1	Remove charger feed socket flap	Model 205.047/147
			AR54.10-P-5110LWH
2	Left rear lamp unit and right rear lamp unit		AR82.10-P-4905LW
3	Raise vehicle		AR00.60-P-1000LW

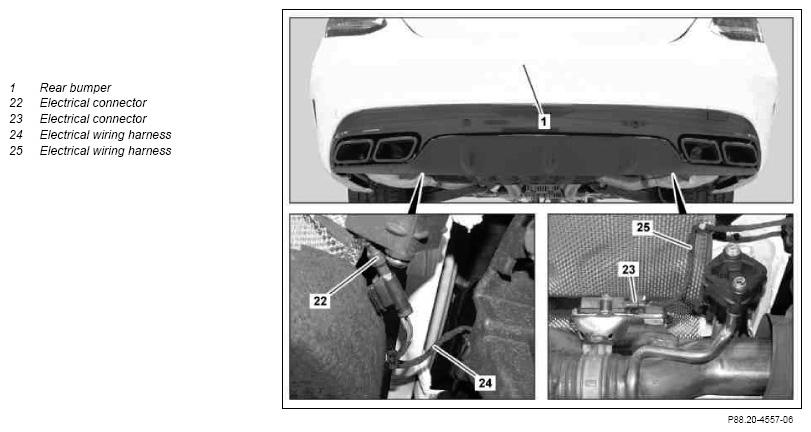

4	Disconnect electrical connectors (22, 23)	Model 205.0 with code U78 (AMG sports exhaust system)
5	Expose electrical wiring harnesses (24, 25)	Model 205.0 with code U78 (AMG sports exhaust system)

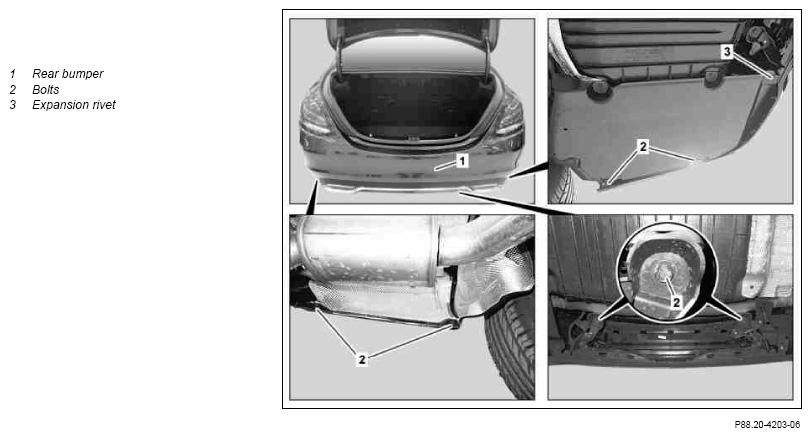

6	Remove screws (2)
7	Remove expansion rivets (3)	Model 205.0 (except 205.086/087), 205.1 (except 205.164) The number can vary according to equipment/type of engine.

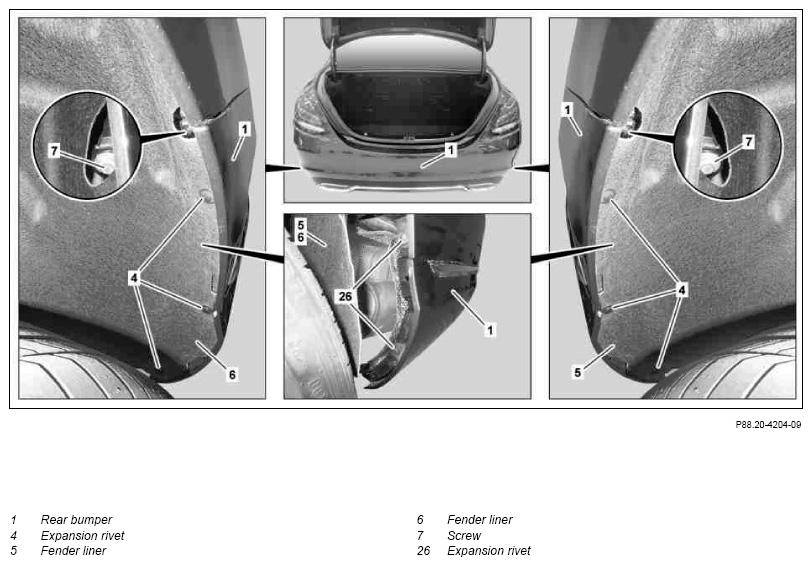

8	Remove expansion rivet (4) from fender liner (5, 6)
9	Press fender liner (5, 6) to side and remove expansion rivet (26)	Mounting wedge	Figure
10	Remove bolts (7)

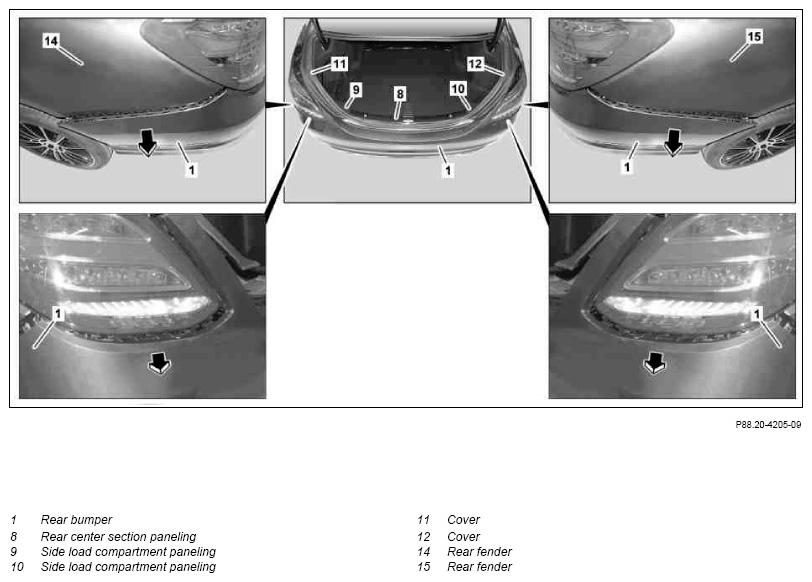

11	Remove rear center section paneling (8)		AR68.30-P-4785LW
12	Loosen covers (11, 12)
13	Loosen side load compartment paneling (9, 10) and press to side

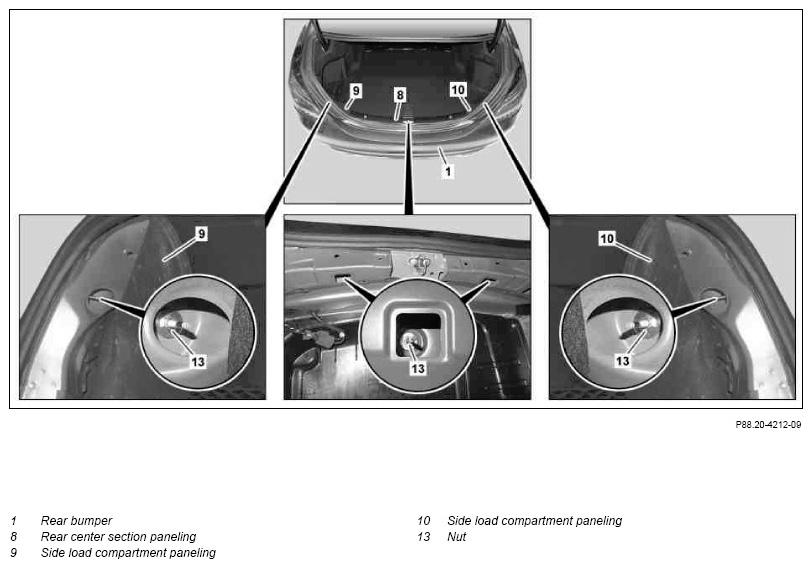

14	Unscrew nuts (13)
15	Disengage rear bumper (1) on rear fenders (14, 15) and in area of rear lamps

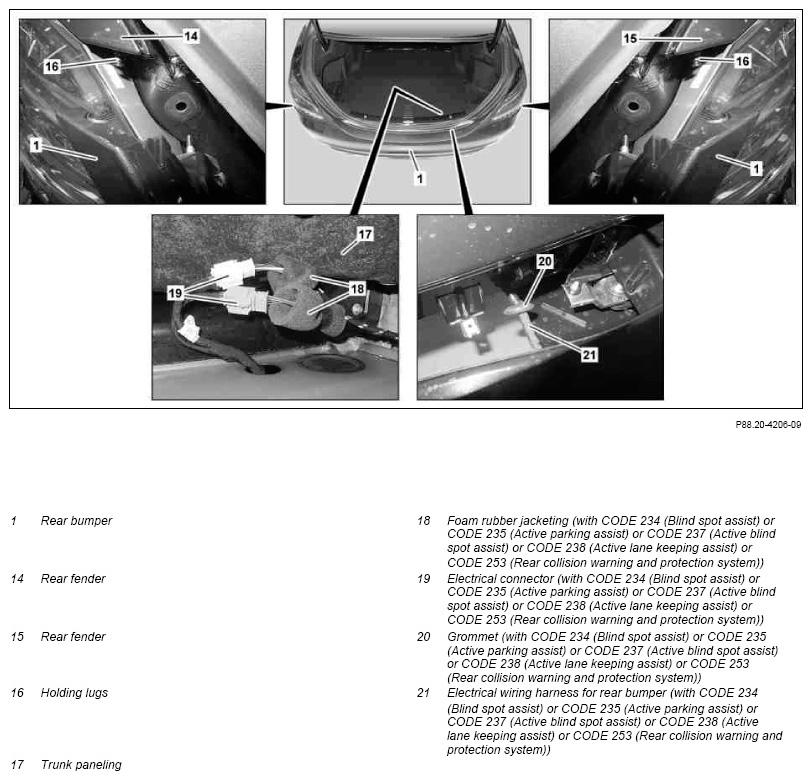

16	Detach trunk paneling (17) until electrical connectors (19) are accessible	Model 205.0/1 with code 234 (Blind Spot Monitoring) Model 205.0/1 with code 235 (Active Parking Assist) Model 205.0/1 with code 237 (Active Blind Spot Assist) Model 205.0/1 with code 238 (Active lane keeping Assist) Model 205.0/1 with code 253 (Rear impact warning and protection system)
