Remove/install front fenders - AR88.10-P-1000LW

Model 205

Model 253

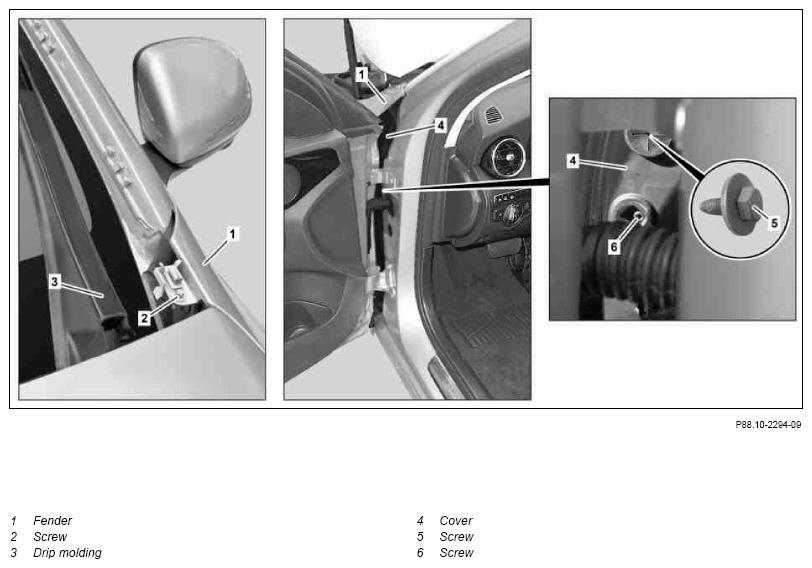

Fig 1: Identifying Front Fenders Remove/Install Components - Shown On Model 205.0
G10134977Courtesy of MERCEDES-BENZ USA

Shown on model 205.0

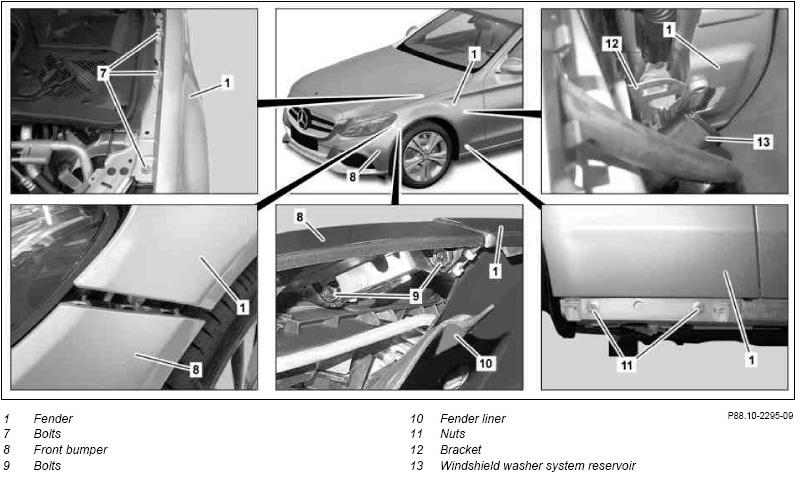

Fig 2: Identifying Front Fenders Remove/Install Components - Shown On Model 205.0
G10134978Courtesy of MERCEDES-BENZ USA

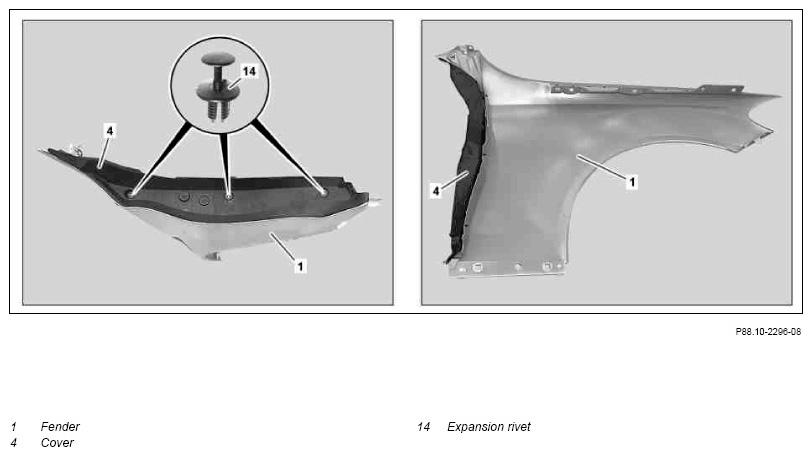

Fig 3: Identifying Front Fenders Remove/Install Components - Shown On Model 205.0
G10134979Courtesy of MERCEDES-BENZ USA

Shown on model 205.0

DANGER Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
REMOVINGINSTALLING Remove/install
1 Remove longitudinal member panel Model 253 AR88.80-P-6000LWG
Model 205 AR88.80-P-6000LW
2 Unscrew bolts (5, 6) IMPORTANT Model 205
Bolts (5, 6) are located behind cover (4).
IMPORTANT Front door not completely open.
INSTALLATION IMPORTANT Screw in bolts (5, 6) only until they make contact. They are tightened after adjusting fender (1).

3.1 Detach drip rail (3) in area of fender (1) Model 205
3.2 Remove drip molding (3) Model 253
4 Unscrew bolt (2) INSTALLATION IMPORTANT Screw in bolt (2) only to stop. It is screwed in after adjusting fender (1).
5 Detach fender liner (10) until bolts (9) are accessible   AR88.10-P-1300LW
6 Remove screws (9)
7 Unscrew nuts (11) INSTALLATION IMPORTANT Screw in nuts (11) only to stop. They are tightened after adjusting fender (1).
8 Remove bolts (7) INSTALLATION IMPORTANT Screw in nuts (7) only to stop. They are tightened after adjusting fender (1).
9 Mask front door, A-pillar and front bumper (8) in area of fender (1) with felt strips Felt strip *BR00.45-Z-1150-02A
10 Move fender (1) out from behind front bumper (8) together with lug
11 Unhook fender (1) at bottom from threaded pins on nuts (11)
12 Push fender (1) toward rear against brackets (12) and remove to side INSTALLATION IMPORTANT Insert fender (1) between bracket (12) and windshield washer system reservoir (13).
13 Remove expansion rivet (14) and remove cover (4) from fender (1) When replacing to (1).
SPECIAL TOOL Clip remover Fig 5
14 Install in the reverse order
15 Adjust fender (1), tighten bolts (2, 5, 6, 7) and nuts (11)   AR60.00-P-0700-01LW
Model 205.0/1/2/3Engine hood to fender *BE60.00-P-1001-01BB
Model 253Engine hood to fender *BE60.00-P-1001-01FA
Model 205.0/1/2/3Front door to fender *BE60.00-P-1008-01BB
Model 253Front door to fender *BE60.00-P-1006-01FA
SPECIAL TOOL Feeler gauge Fig 4
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.0/1 Model 205.2
BE60.00-P-1001-01BB Engine hood to fender Dimension "A" mm 3 (±0, 5) 3 (±0, 5)
For picture, see AR60.00-P-0700-01LW AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.3
BE60.00-P-1001-01BB Engine hood to fender Dimension "A" mm 3 (±0, 5)
For picture, see AR60.00-P-0700-01LW
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 253
BE60.00-P-1001-01FA Engine hood to fender Dimension "A" mm 3, 0 (±0, 5)
For picture, see AR60.00-P-0700-01LW
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 253
BE60.00-P-1006-01FA Front door to fender Dimension "G" mm 3, 5 (+1/-0, 5)
For picture, see AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.0/1 Model 205.2
BE60.00-P-1008-01BB Front door to fender Dimension "G" mm 4 (±0, 5) 4 (±0, 5)
For picture, see AR60.00-P-0700-01LW AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.3
BE60.00-P-1008-01BB Front door to fender Dimension "G" mm 4 (±0, 5)
For picture, see AR60.00-P-0700-01LW
Fig 4: Identifying Feeler Gauge (129 589 03 21 00)
G07469060Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Clip Remover (452 589 01 63 00)
G07652297Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1150-02A Felt strip A 000 983 89 10
