Remove/install Mercedes star - AR88.40-P-4050LW

Model 205 with code 233 (DISTRONIC PLUS)

Model 205 with code 239 (DISTRONIC PLUS)

Model 205 with code 772 (AMG styling package - front spoiler, side skirts and rear apron)

Model 205 with code P15 (AVANT-GARDE exterior)

Model 205 with code P76 (Standard exterior equipment and appointments)

Model 253

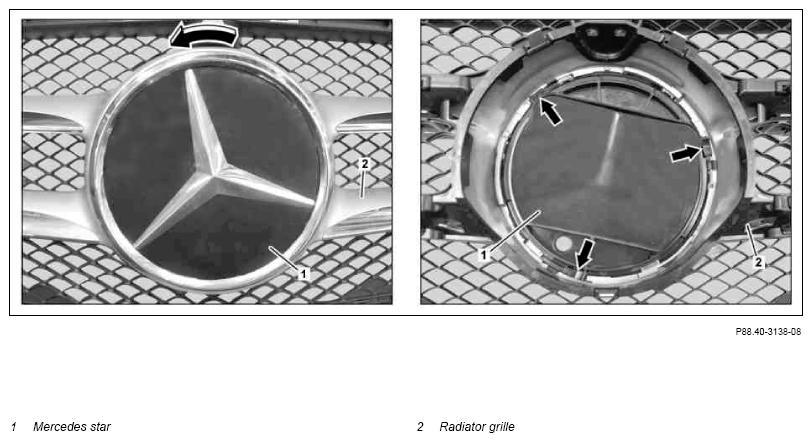

Fig 1: Locating Mercedes Star Radiator Grille

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Turn Mercedes star (1) approx. 15° in direction of arrow and remove from radiator grille (2)	Insert Mercedes star (1) into radiator paneling (2) with catch hooks (arrows) as shown.
2	Install in the reverse order
