Subsequently modify mirror housing - AN88.70-P-0006LW

Model 205.0 (except 205.064/086/087), 205.2 (except 205.264/286/287) except code 772 (AMG styling package - front spoiler, side skirts and rear apron) except code P23 (EXCLUSIVE exterior) except code P31 (AMG Line exterior)

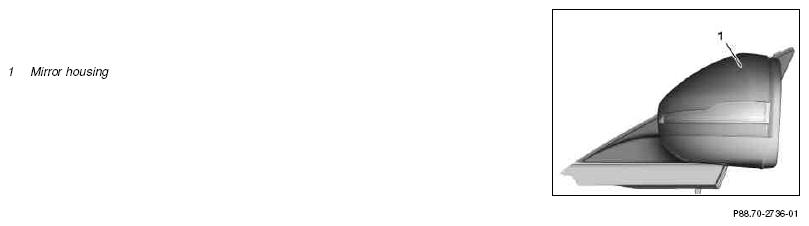

Fig 1: Identifying Mirror Housing
G10135048Courtesy of MERCEDES-BENZ USA
REMOVING Remove
1 Remove mirror housing (1)
REFER TO TESTING & REPAIR AR88.70-P-9040LF
IMPORTANT The mirror housing (1) is no longer required.
INSTALLING Install
2 Install new mirror housing (1)
REFER TO TESTING & REPAIR AR88.70-P-9040LF
  Update Vehicle Documentation (VeDoc)
3 Attach note "Mirror housing retrofitted as per AN88.70-P-0006LW "
PARTS ORDERING NOTE

Part no. Designation Quantity
KG 99 (see EPC) Mirror housing, package contents 1
