Retrofit spoiler on trunk lid - AZ88.50-P-0005LW

MODEL 205.0 (except 205.064/086/087) without CODE 830 (China version)

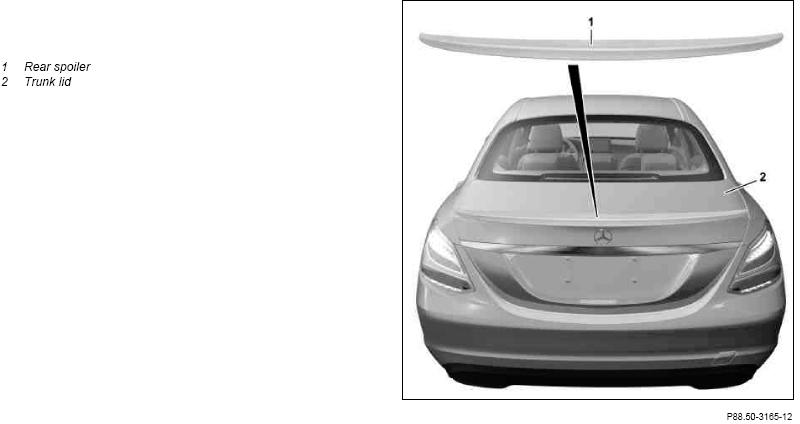

Fig 1: Retrofitting Spoiler On Trunk Lid

Courtesy of MERCEDES-BENZ USA

	Install
	Risk of explosion  caused by paint vapors igniting. Risk of poisoning  caused by inhaling paint vapors.	No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and skin cream. Ensure that the area is well ventilated.	AS98.00-Z-0002-01A
2	Paint rear spoiler (1)		AZ88.50-P-0005-01LW
2	Install rear spoiler (1) on trunk lid (2)		AZ88.50-P-0005-02LW
		When pressing on, press directly on bonding surface on rear spoiler (1). The maximum adhesive force is reached after approx. 72 hours at 20°C. Avoid any contact with moisture (e.g. frost, rain, fog, carwash) within the first 24 hours as well as any mechanical stress. Otherwise adhesion problems can occur.
		Cleaner	*BR00.45-Z-1025-04A
