Retrofit spoiler on front bumper - AZ88.20-P-0010LW

Model 205.0 (except 205.064/086/087) except code 772 (AMG styling package - front spoiler, side skirts and rear apron) except code P23 (EXCLUSIVE exterior)

Model 205.2 (except 205.264/286/287) except code 772 (AMG styling package - front spoiler, side skirts and rear apron) except code P23 (EXCLUSIVE exterior)

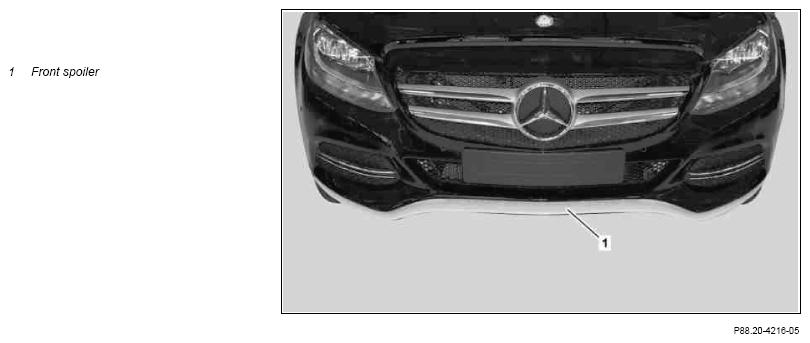

Fig 1: Identifying Front Bumper Spoiler

Courtesy of MERCEDES-BENZ USA

	Install
	Risk of explosion  caused by paint vapors igniting. Risk of poisoning  caused by inhaling paint vapors.	No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated.	AS98.00-Z-0002-01A
1	Paint front spoiler (1)		AZ88.20-P-0010-01LW
		Use only paints approved by Daimler AG.
2	Install front spoiler (1) on front bumper		AZ88.20-P-0010-02LW
		When pressing on, press directly on bonding surface on front spoiler (1). The maximum adhesive force is reached after approx. 72 hours at 20°C. Avoid any contact with moisture (e.g. frost, rain, fog, carwash) within the first 24 hours as well as any mechanical stress. Otherwise adhesion problems can occur. Do not remove protective foil on adhesive strips all at once. To increase processing reliability when installing front spoiler (1), conclude by pressing front spoiler (1) down on bumper using clean cotton rag, starting center.
		Cleaner	*BR00.45-Z-1025-04A
	Update Vehicle Documentation (VeDoc)
3	Attach note "Front spoiler retrofitted according to AZ88.20-P-0010LW "
