Retrofit roof spoiler - AZ88.30-P-0015LW

MODEL 205.0

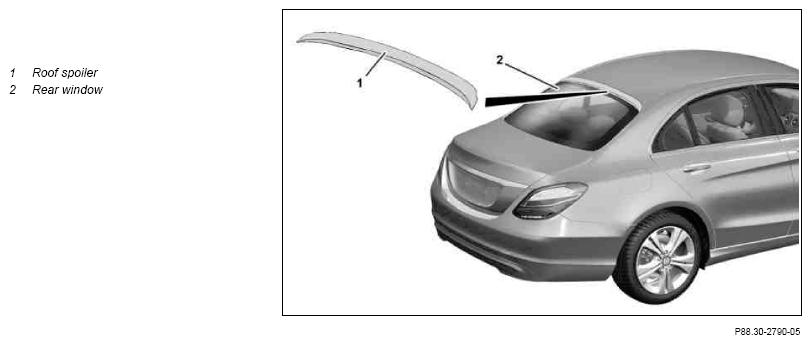

Fig 1: Retrofitting Roof Spoiler

Courtesy of MERCEDES-BENZ USA

	Install
	Risk of explosion  caused by paint vapors igniting. Risk of poisoning  caused by inhaling paint vapors.	No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated.	AS98.00-Z-0002-01A
1	Paint roof spoiler (1)		AZ88.30-P-0015-01LW
2	Install roof spoiler (1) on rear window (2)		AZ88.30-P-0015-02LW
		When pressing on, ensure that the pressure is applied directly on the adhesive tape. The maximum adhesive strength is only reached after approx. 72 h at 20°C. Avoid any contact with moisture (e.g. frost, rain, fog, carwash) or any mechanical stress during first 24 hours. Otherwise adhesion problems can occur. Do not remove protective foil all at once. To increase processing reliability when installing roof spoiler (1), conclude by pressing roof spoiler (1) down rear window (2) using a clean cotton rag, starting at one side.
		Cleaner	*BR00.45-Z-1025-04A
		Primer/3M™ adhesion promoter 111	*BR00.45-Z-1145-02A
	Update Vehicle Documentation (VeDoc)
3	Attach note "Roof spoiler retrofitted according to AZ88.30-P-0015LW "

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
BR00.45-Z-1145-02A	Primer/3M™ adhesion promoter 111	A 005 986 02 10

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98 (see EPC)	Roof spoiler parts kit	1
