Retrofit mud flaps - AZ88.30-P-0003LW

MODEL 205.0 (except 205.064/086/087) without CODE 772 (AMG body styling)

MODEL 205.1 (except 205.164) without CODE 772 (AMG body styling)

MODEL 205.2 (except 205.264/286/287) without CODE 772 (AMG body styling)

Shown on 205.0

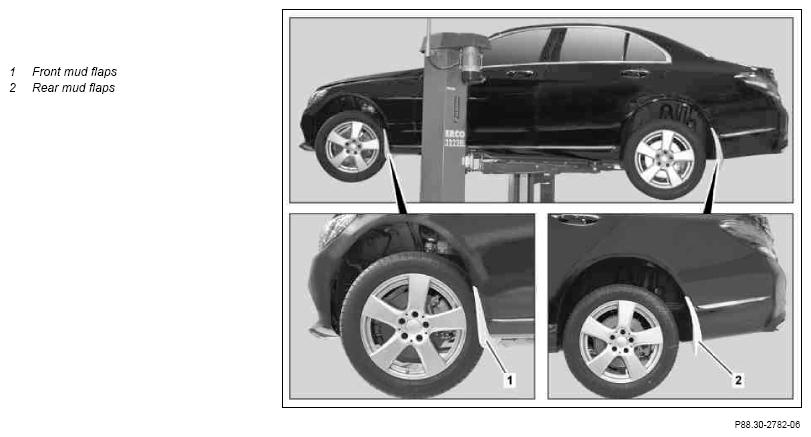

Fig 1: Retrofitting Mud Flaps - Shown On 205.0

Courtesy of MERCEDES-BENZ USA

	Install
	Risk of explosion  caused by paint vapors igniting. Risk of poisoning  caused by inhaling paint vapors.	No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated.	AS98.00-Z-0002-01A
1	Paint front mud flap (1)	Clarify whether customer wants to paint front mud flap (1). Should this not be the case, do not perform this operation step.
			AZ88.30-P-0003-01LW
	Risk of explosion  caused by paint vapors igniting. Risk of poisoning  caused by inhaling paint vapors.	No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated.	AS98.00-Z-0002-01A
2	Paint rear mud flap (2)	Clarify whether customer wants to paint rear mud flap (2). Should this not be the case, do not perform this operation step.
			AZ88.30-P-0003-02LW
3	Lift vehicle on vehicle lift
			AR00.60-P-1000LW
4	Install front mud flap (1)		AZ88.30-P-0003-03LW
		Cleaner	*BR00.45-Z-1025-04A
5	Install rear mud flap (2)		AZ88.30-P-0003-04LW
		Cleaner	*BR00.45-Z-1025-04A
6	Lower vehicle with lifting platform
7	Document retrofitted equipment via vehicle documentation (VeDoc)
8	Attach "Mud guards retrofitted according to AZ88.30-P-0003LW
