Remove/install rear axle shaft flange and angular ball bearing - AR35.20-P-0130LW

Model 205

Model 253

MODIFICATION NOTES

18.12.14

Screw wheel bearings on wheel

BA35.20-P-1001-06E

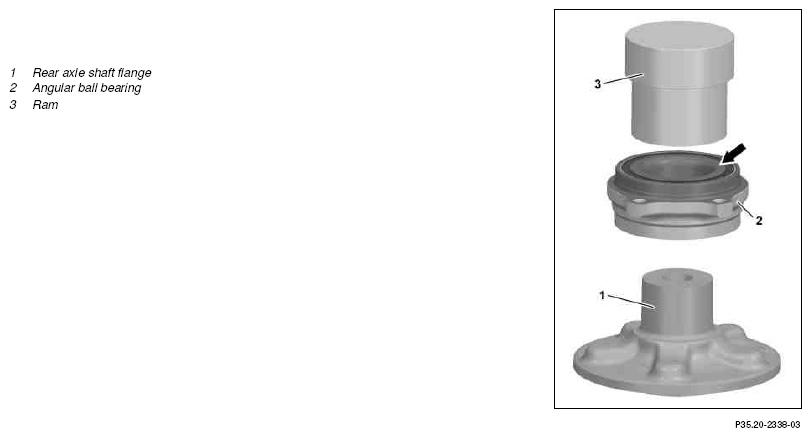

Fig 1: Identifying Rear Axle Shaft Flange Remove/Install Components

Courtesy of MERCEDES-BENZ USA

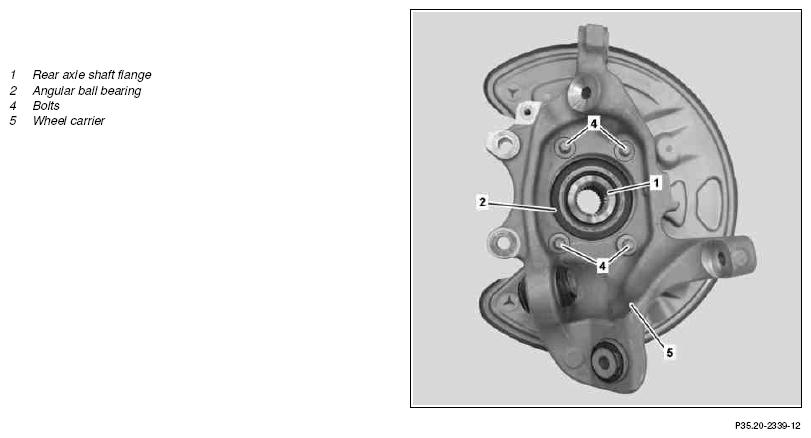

Fig 2: Locating Angular Ball Bearing

Courtesy of MERCEDES-BENZ USA

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove
1	Remove wheel carrier (5)		AR35.20-P-0115LW
2	Remove bolts (4) and remove angular contact ball bearing (2) with rear axle shaft flange (1) from wheel carrier (5)
	Clean
3	Clean water drain in wheel carrier (5)		AR35.20-P-0115-03CW
4	Clean contact surface on wheel carrier (5)
	Install
5	Press new angular contact ball bearing (2) using stamp (3) onto new rear axle shaft flange (1) up to the end stop	When replacing the angular contact ball bearing (2). Always replace rear axle shaft flange (1). Make sure that the stamp (3) is fitted flat to the inner bearing shell (arrow) of the angular contact ball bearing (2).
		Ram	Fig 3
6	Insert angular contact ball bearing (2) with rear axle shaft flange (1) into wheel carrier (5)
7	Screw in bolts (4) and tighten in diagonal pattern	Model 205 with engine 177 Model 205 with engine 274, 276, 626, 651 Model 253 Bolt, wheel bearing to wheel carrier	*BA35.20-P-1001-06E
8	Install wheel carrier (5)		AR35.20-P-0115LW

HUB

Number	Designation				Model 205 with engine 177	Model 205 with engine 274, 276, 626, 651
BA35.20-P-1001-06E	Bolt, wheel bearing to wheel carrier	M10x41		Nm	-	70
		M12x30 with cone	Stage 1	Nm	80	-
			Stage 2	∠°	45	-
		M12x35 without cone	Stage 1	Nm	60	-
			Stage 2	∠°	45	-

HUB

Number	Designation				Model 253
BA35.20-P-1001-06E	Bolt, wheel bearing to wheel carrier	M10x41		Nm	70
		M12x30 with cone	Stage 1	Nm	-
			Stage 2	∠°	-
		M12x35 without cone	Stage 1	Nm	-
			Stage 2	∠°	-

Fig 3: Identifying Ram (211 589 00 43 04)

Courtesy of MERCEDES-BENZ USA
