Remove/install radius rod - AR35.20-P-0111LW

MODEL 205

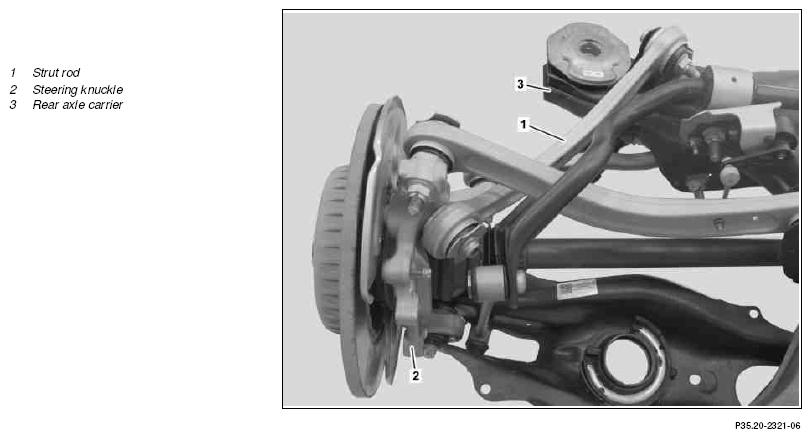

Fig 1: Identifying Radius Rod Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Lower front rear axle		AR35.10-P-0015LW
2	Detach strut rod (1) from steering knuckle (2)	Bolt, strut rod to wheel carrier	*BA35.20-P-1002-03L
3	Detach strut rod (1) from rear axle carrier (3) and take out strut rod (1)	Bolt, strut rod to rear axle carrier	*BA35.20-P-1001-03L
	Check
4	Check strut rod (1) for condition and possible damage	If damage is present: ↓ Replace strut rod (1).
5	Install in the reverse order

STRUT ROD

Number	Designation				MODEL 205
BA35.20-P-1001-03L	Bolt, strut rod to rear axle carrier	Rear axle carrier (aluminum)	Stage 1	Nm	80
			Stage 2	∠°	90
		Rear axle carrier (steel)	Stage 1	Nm	50
			Stage 2	∠°	90

STRUT ROD

Number	Designation				MODEL 205
BA35.20-P-1002-03L	Bolt, strut rod to wheel carrier	M12	Stage 1	Nm	50
			Stage 2	∠°	90
