| A0 |
Use of wiring diagrams |
56L |
| B22/10 |
Right rear level sensor |
13L |
| B22/7 |
Left rear level sensor |
45L |
| B22/8 |
Left front level sensor |
23L |
| B22/9 |
Right front level sensor |
20L |
| B24/3 |
Left front body lateral acceleration sensor |
8L |
| B24/4 |
Right front body lateral acceleration sensor |
6L |
| B24/6 |
Right rear body lateral acceleration sensor |
11L |
| F1/3 |
Right A-pillar fuse box |
3L |
| F1/3f320 |
Fuse 320 |
1K |
| Flex E |
Chassis FlexRay |
17K |

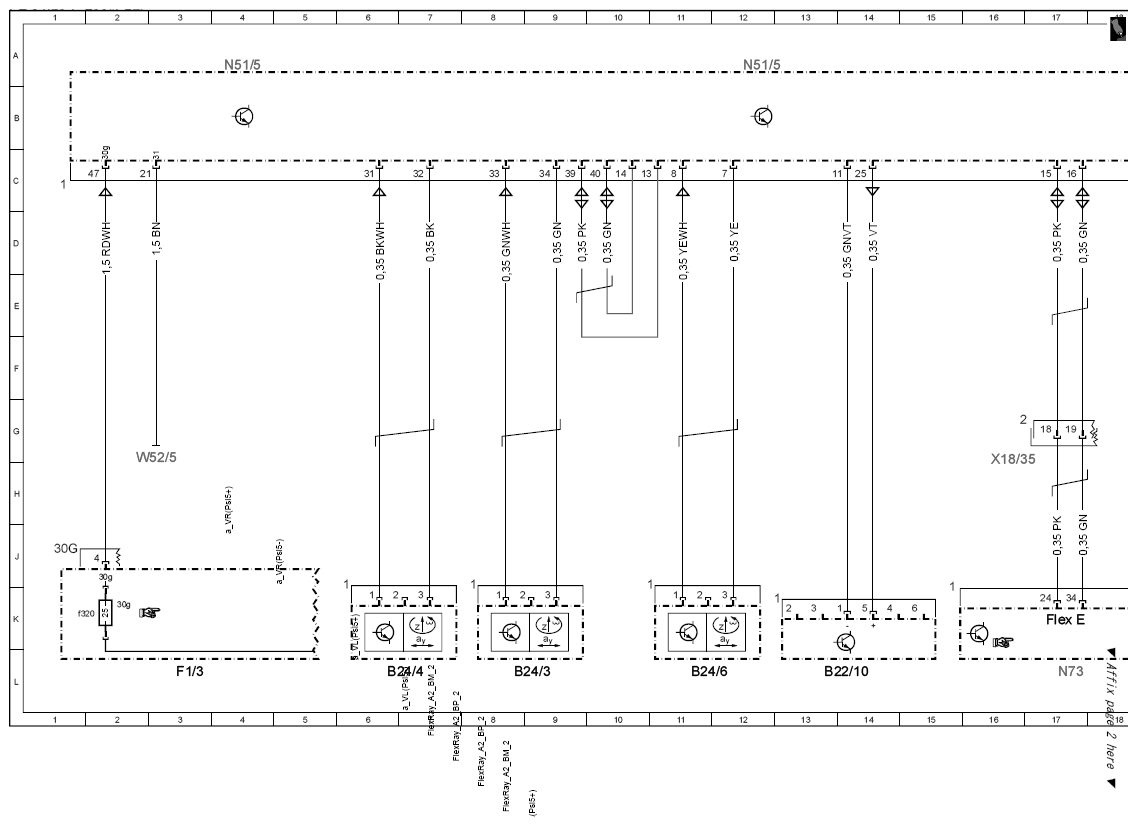

| N51/5 |
Adaptive damping system control unit |
4A |
| N51/5 |
Adaptive damping system control unit |
12A |
| N51/5 |
Adaptive damping system control unit |
28A |
| N51/5 |
Adaptive damping system control unit |
20A |
| N51/5 |
Adaptive damping system control unit |
36A |
| N51/5 |
Adaptive damping system control unit |
45A |
| N51/5 |
Adaptive damping system control unit |
52A |
| N73 |
Electronic ignition switch control unit |
17L |
| W52/5 |
Left center longitudinal member ground point |
2G |
| X18/35 |
Cockpit wiring harness and frame floor assembly electrical connector |
16H |
| X62/32 |
Rear axle electrical connector, left distributor |
46H |
| X62/33 |
Rear axle electrical connector, right distributor |
50H |
| X62/6 |
Front axle electrical connector, right distributor |
28H |
| X62/7 |
Front axle electrical connector, left distributor |
25H |

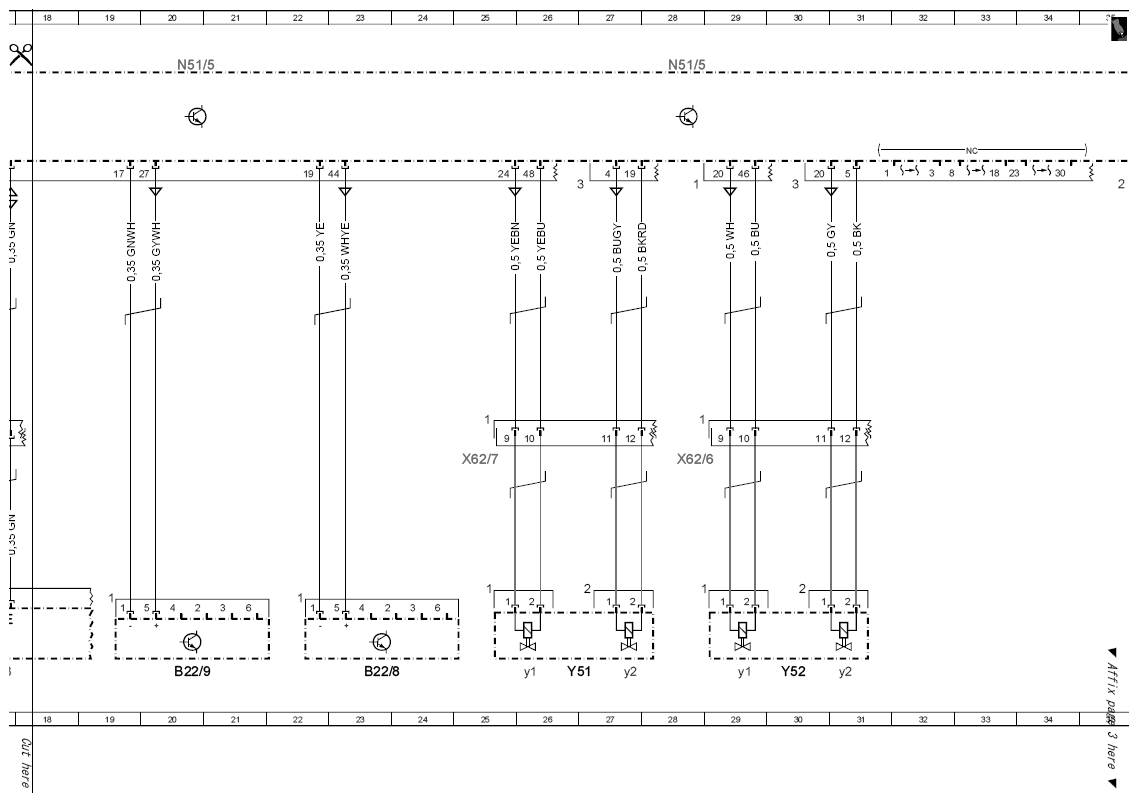

| Y51 |
Left front axle damping valve unit |
26L |
| Y51y1 |
Solenoid valve 1, front left |
26L |
| Y51y2 |
Solenoid valve 2, front left |
27L |
| Y52 |
Right front axle damping valve unit |
30L |
| Y52y1 |
Solenoid valve 1, front right |
29L |
| Y52y2 |
Solenoid valve 2, front right |
31L |

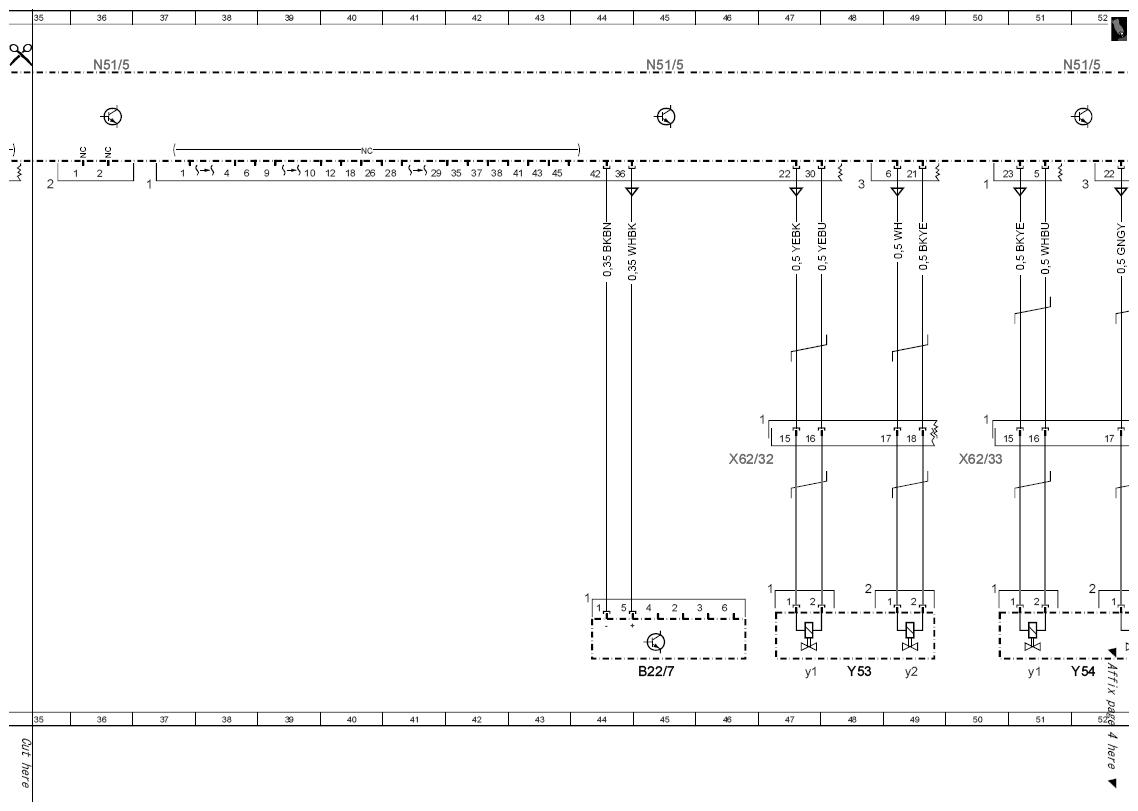

| Y53 |
Left rear axle damping valve unit |
48L |
| Y53y1 |
Solenoid valve 1, rear left |
47L |
| Y53y2 |
Solenoid valve 2, rear left |
49L |

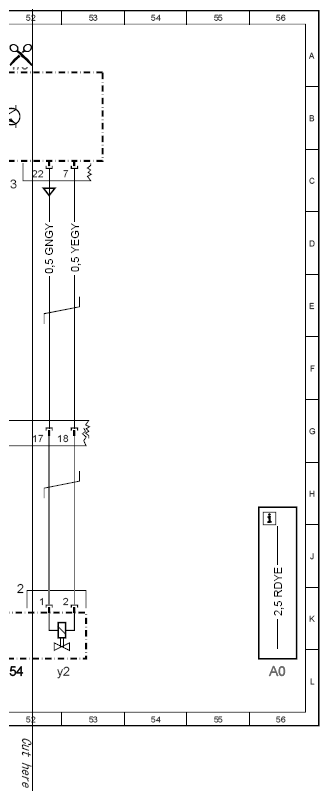

| Y54 |
Right rear axle damping valve unit |
52L |
| Y54y1 |
Solenoid valve 1, rear right |
51L |
| Y54y2 |
Solenoid valve 2, rear right |
52L |
