Remove/install torsion bar on rear axle - AR32.20-P-0315LW

MODEL 205

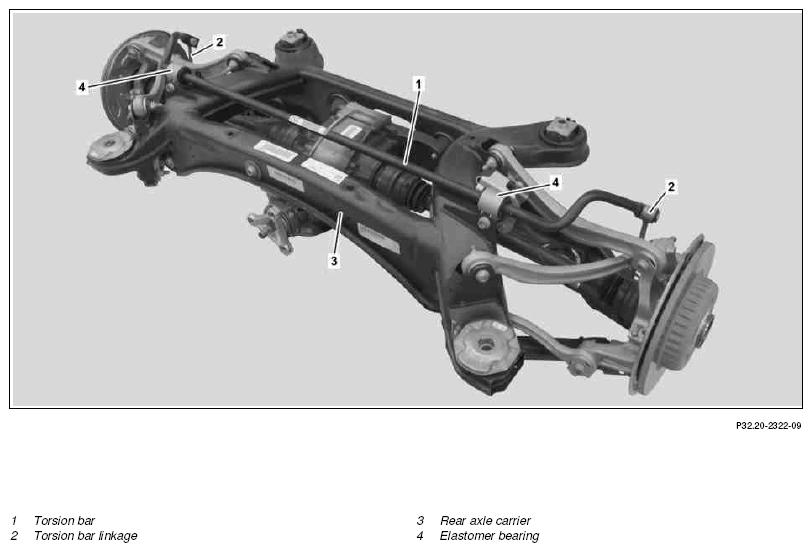

Fig 1: Identifying Rear Axle Torsion Bar Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Lower front rear axle		AR35.10-P-0015LW
2	Remove torsion bar linkage (2) from stabilizer bar (1)	Bolt, torsion bar linkage to torsion bar	*BA32.20-P-1001-04S
3	Detach level sensor with bracket from rear axle carrier (3) and place to one side	If installed.
			AR82.10-P-0005LW
		Do not twist level sensors. Pay attention to installation position.
4	Detach stabilizer bar (1) from rear axle carrier (3) and remove to one side	Nut, stabilizer bar to rear axle carrier	*BA32.20-P-1002-04S
	Check
5	Check elastomer bearing (4) on stabilizer bar (1) for damage and wear	If there is damage or wear: ↓ Replace torsion bar (1).
6	Install in the reverse order

REAR AXLE TORSION BAR

Number	Designation		MODEL 205 except CODE 488/489/492	MODEL 205 with CODE 489, except CODE 488/492
BA32.20-P-1001-04S	Bolt, torsion bar linkage to torsion bar	Nm	50	50

REAR AXLE TORSION BAR

Number	Designation		MODEL 205 with CODE 488 or with CODE 492
BA32.20-P-1001-04S	Bolt, torsion bar linkage to torsion bar	Nm	50

REAR AXLE TORSION BAR

Number	Designation		MODEL 205 except CODE 488/489/492	MODEL 205 with CODE 489, except CODE 488/492
BA32.20-P-1002-04S	Nut, stabilizer bar to rear axle carrier	Nm	80	80

REAR AXLE TORSION BAR

Number	Designation		MODEL 205 with CODE 488 or with CODE 492
BA32.20-P-1002-04S	Nut, stabilizer bar to rear axle carrier	Nm	80
