Retrofit multifunction sport steering wheel - AN46.10-P-1002LW

MODEL 205.0/1/2 without CODE P29 (AMG Line interior)

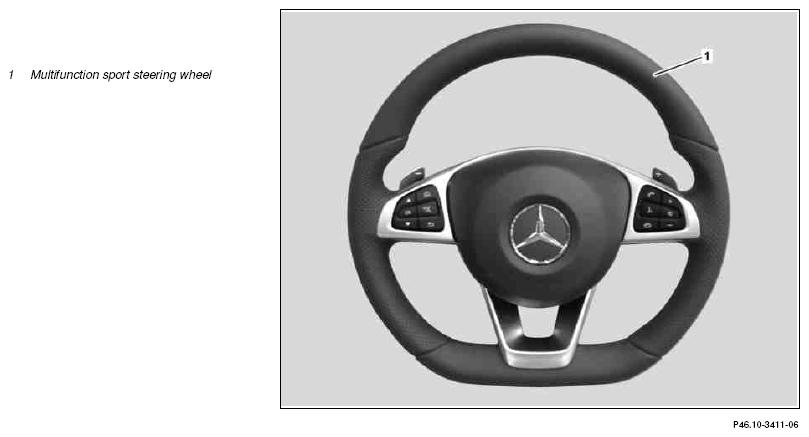

Fig 1: Identifying Multifunction Sport Steering Wheel

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove steering wheel
			AR46.10-P-0100LW
		The removed steering wheel is no longer required.
	Install
2	Install multifunction sport steering wheel (1)
			AR46.10-P-0100LW
		MODEL 205.0/1/2 without CODE P29 (AMG Line interior) without CODE P62 (Dual-color designo interior, platinum white pearl/black) without CODE P86 (AMG interior) without CODE P87 (designo interior in saddle brown/black) Use the airbag included in the package contents.
	Update Vehicle Documentation (VeDoc)
3	Attach a note "Multifunction sport steering wheel retrofitted as per AN46.10-P-1002LW " under Field Organization texts for DG 46
	Check
4	Perform function test of multifunction sport steering wheel (1)

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 99 (please refer EPC)	Package contents of multifunction sport steering wheel	1
