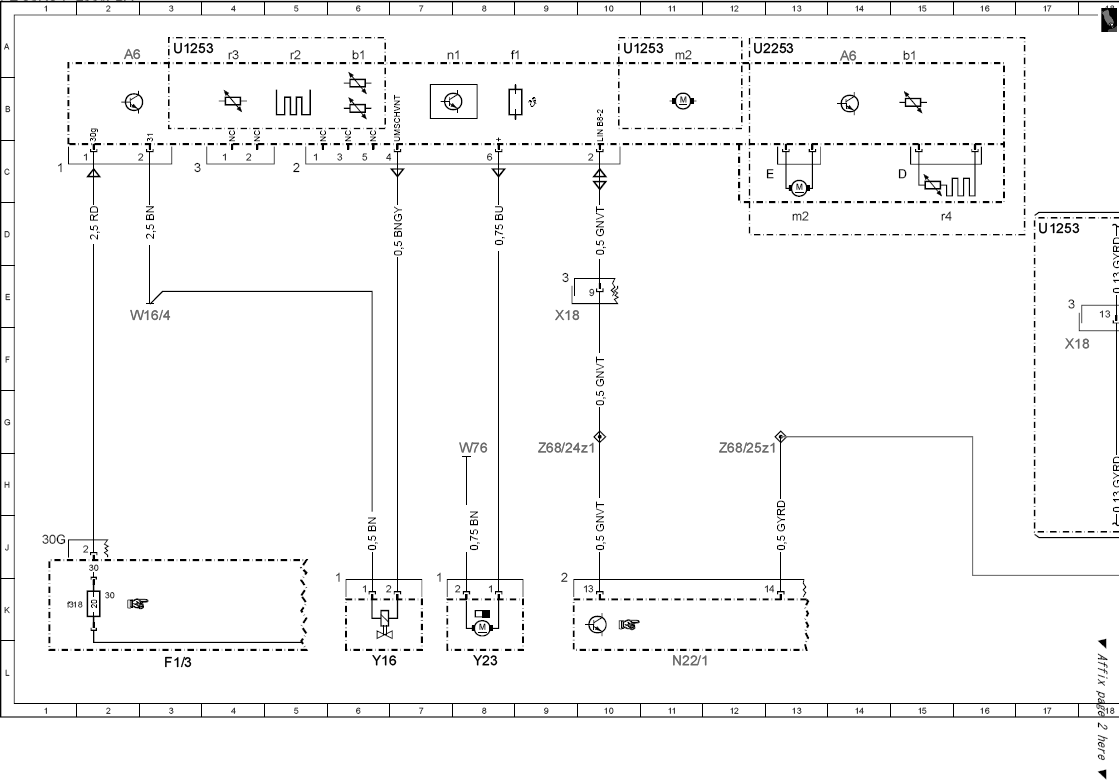

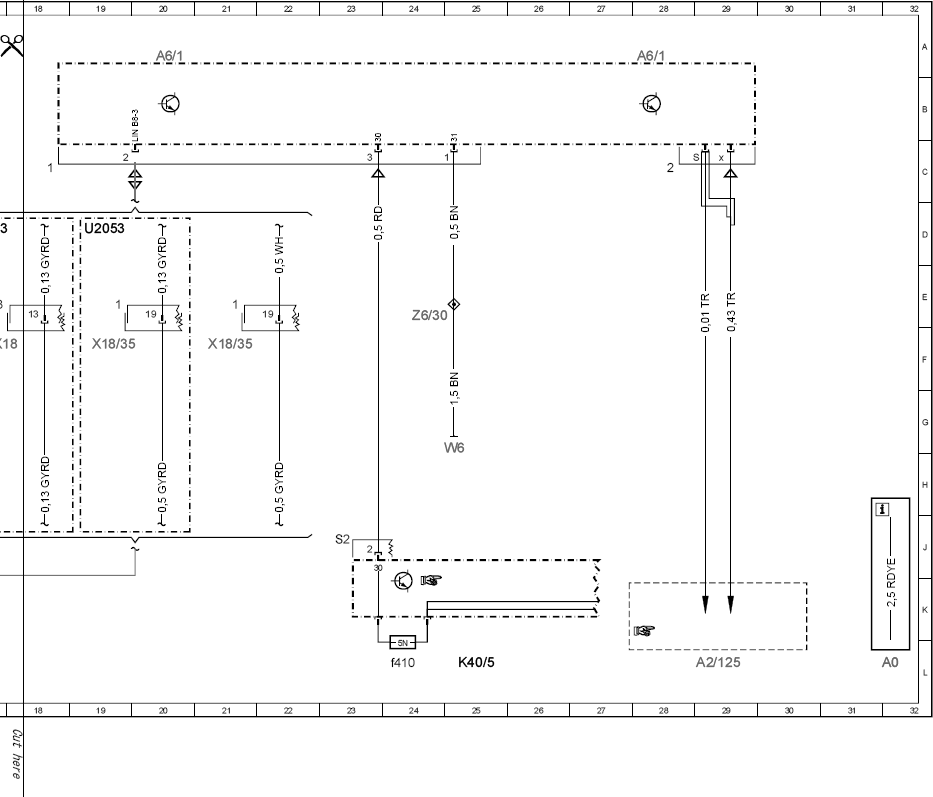

| A0 |
Use of wiring diagrams |
32L |
| A2/125 |
Communications module/stationary heater antenna splitter |
29L |
| A6 |
Stationary heater unit |
2A |
| A6 |
Stationary heater unit |
14A |
| A6/1 |
Stationary heater radio remote control receiver |
28A |
| A6/1 |
Stationary heater radio remote control receiver |
20A |
| A6b1 |
Stationary heater temperature sensor |
15A |
| A6b1 |
Stationary heater temperature sensor |
6A |
| A6f1 |
Stationary heater thermal fuse |
8A |
| A6m2 |
Stationary heater combustion air blower |
13D |
| A6m2 |
Stationary heater combustion air blower |
11A |
| A6n1 |
Stationary heater control unit |
7A |
| A6r2 |
Glow plug |
5A |
| A6r3 |
Flame monitor |
4A |
| A6r4 |
Stationary heater glow plug/flame monitor unit |
15D |
| F1/3 |
Right A-pillar fuse box |
3L |
| F1/3f318 |
Fuse 318 |
1K |
| K40/5 |
Rear fuse and relay module |
25L |
| K40/5f410 |
Fuse 410 |
24L |
| N22/1 |
Climate control unit |
11L |
| U1253 |
Valid for model 253 |
17D |
| U1253 |
Valid for model 253 |
3A |
| U1253 |
Valid for model 253 |
10A |
| U2053 |
Valid for model 205.3 |
19D |
| U2253 |
Not valid for model series 253 |
12A |
| W16/4 |
Right major assembly compartment ground point |
3E |
| W6 |
Left wheel arch trunk ground point |
25G |
| W76 |
Fuel pump ground point |
8G |
| X18 |
Cockpit wiring harness and frame floor assembly electrical connector |
9E |
| X18 |
Cockpit wiring harness and frame floor assembly electrical connector |
18F |
| X18/35 |
Cockpit wiring harness and frame floor assembly electrical connector |
19F |
| X18/35 |
Cockpit wiring harness and frame floor assembly electrical connector |
21F |
| Y16 |
Stationary heater switchover valve |
6L |
| Y23 |
Stationary heater fuel pump |
8L |
| Z6/30 |
Circuit 31 connector sleeve |
24E |
| Z68/24z1 |
Connector sleeve, data line for climate control LIN 2 |
9G |
| Z68/25z1 |
Connector sleeve, data line, A/C control panel LIN |
12G |
