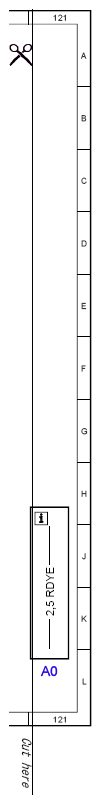

| A0 |
Use of wiring diagrams |
121L |
| A101 |
Fuel tank diagnostic module |
40L |
| A101 |
Fuel tank diagnostic module |
111L |

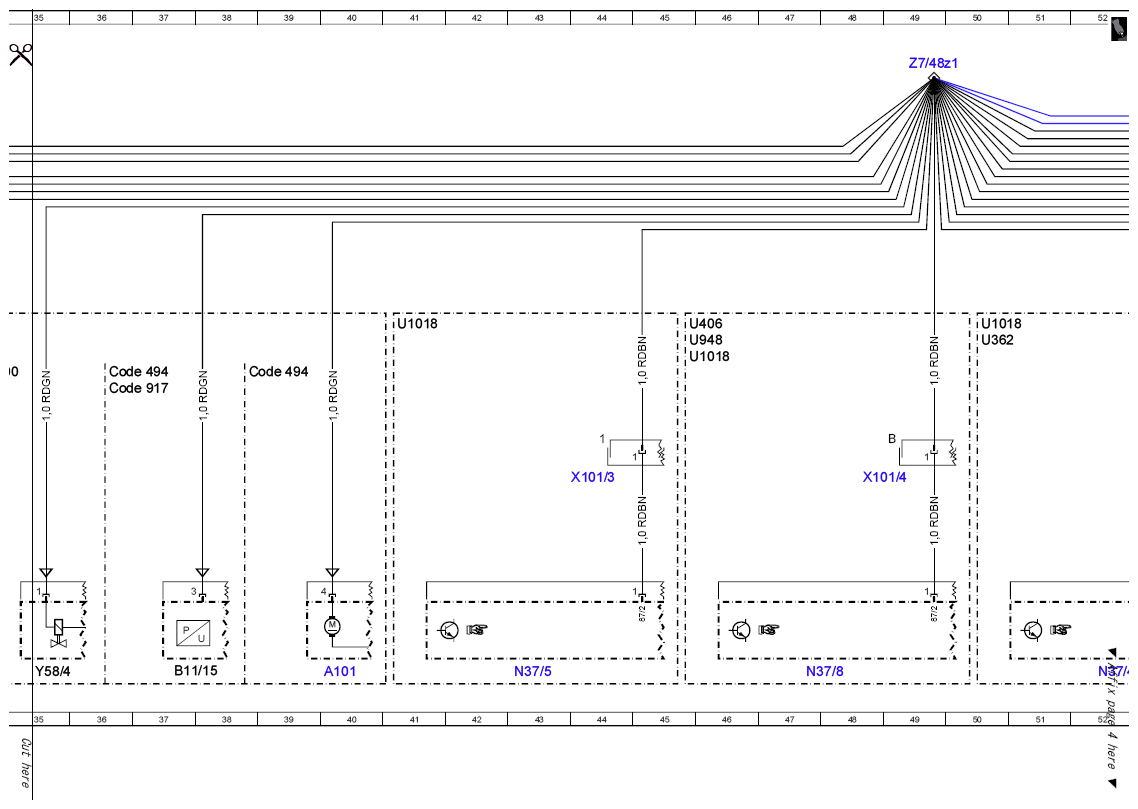

| B11/15 |
Radiator sensor for engine diagnosis |
37L |
| B4/31 |
Fuel quality sensor |
85L |
| Code 460 |
Canada version |
63F |
| Code 494 |
USA version |
38F |
| Code 494 |
USA version |
36F |
| Code 494 |
USA version |
63F |
| Code 917 |
PZEV emission USA |
36F |
| Code 933 |
Flexible Fuel Vehicle |
83E |
| Code M005 |
VEHICLES WITH 4MATIC/ALL-WHEEL DRIVE |
1F |

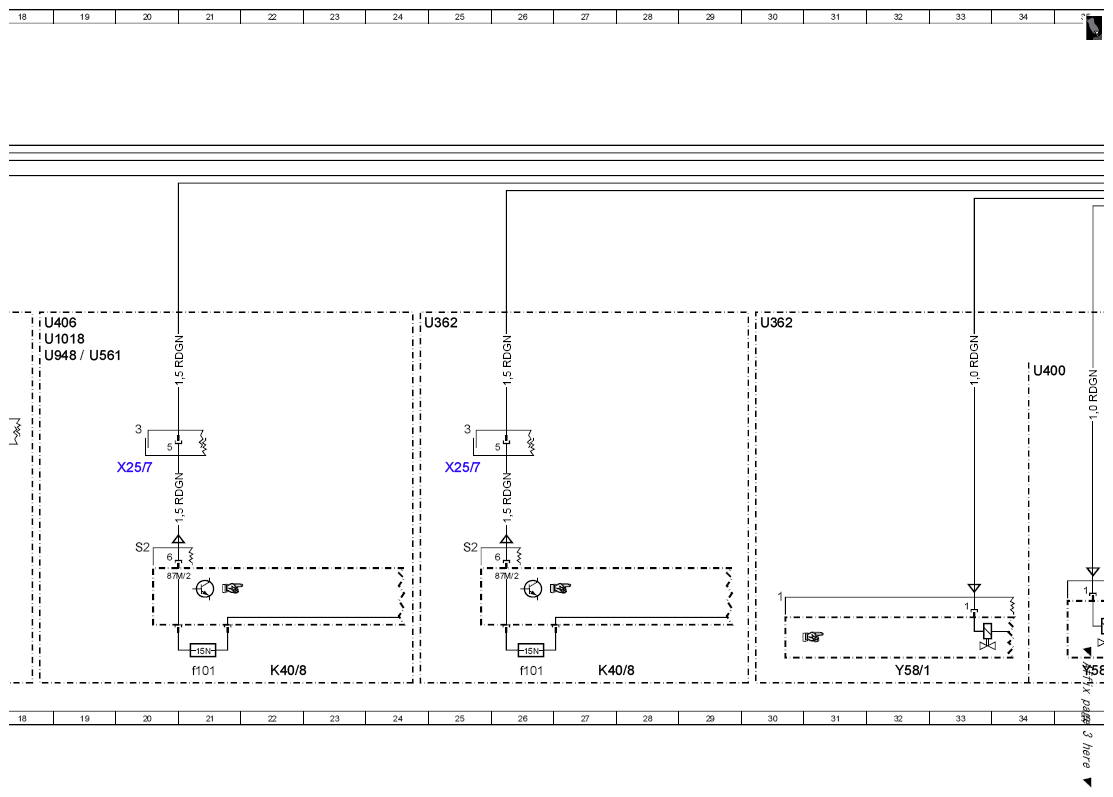

| K40/8 |
Engine fuse and relay module |
22L |
| K40/8 |
Engine fuse and relay module |
27L |
| K40/8f101 |
Fuse 101 |
21L |
| K40/8f101 |
Fuse 101 |
26L |

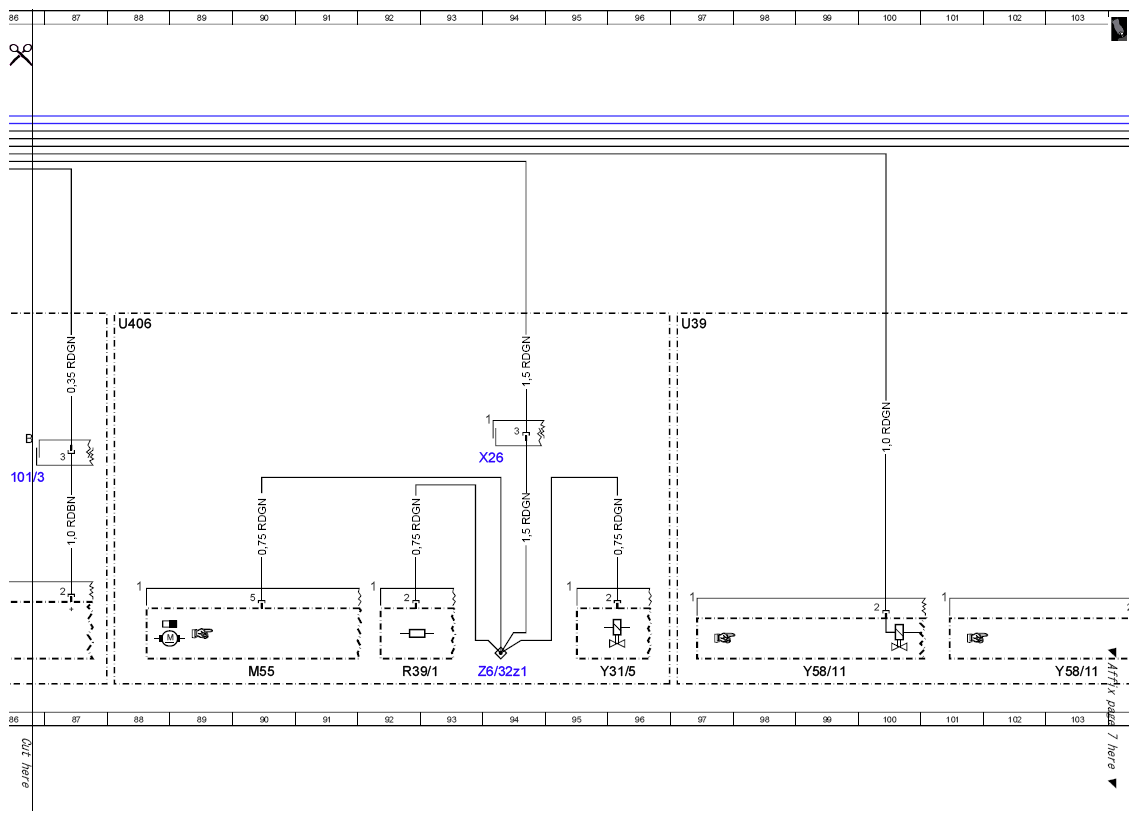

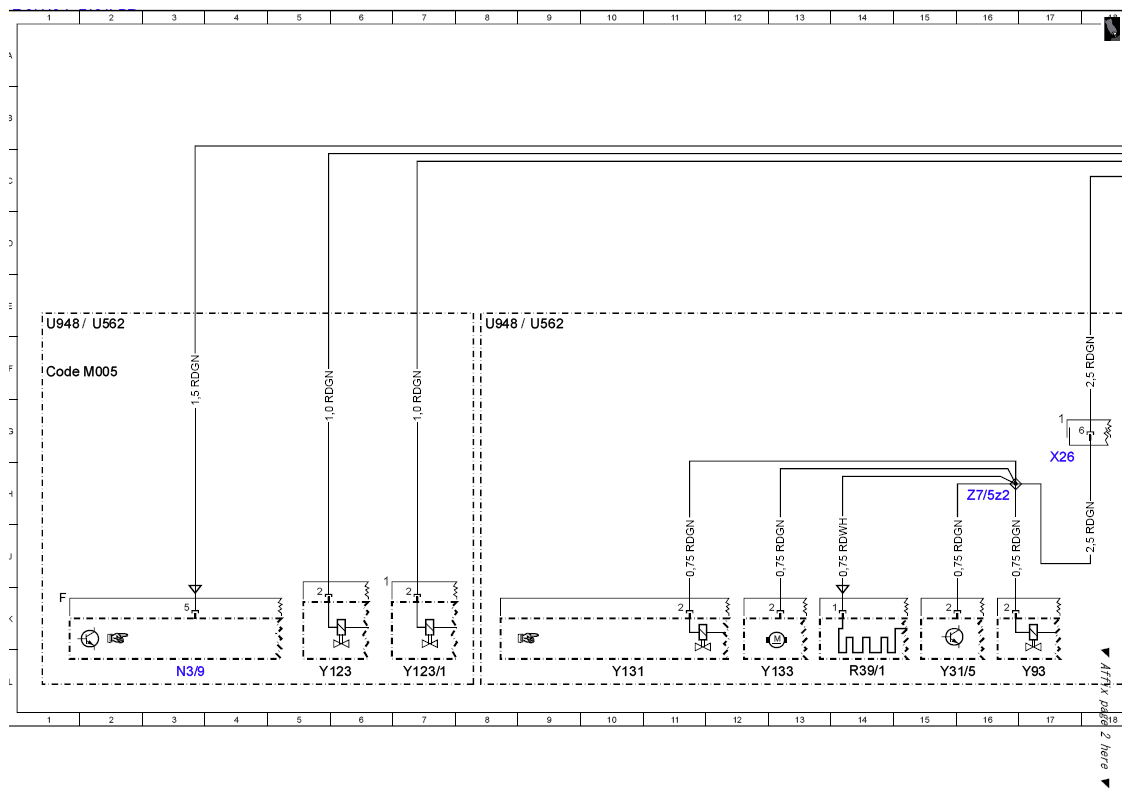

| M55 |
Intake port shutoff actuator motor |
90L |
| N3/10 |
ME-SFI [ME] control unit |
117L |
| N3/9 |
CDI control unit |
3L |
| N3/9 |
CDI control unit |
68L |
| N37/4 |
NOx sensor control unit |
52L |
| N37/5 |
Left nitrogen oxides control unit |
43L |
| N37/8 |
NOx sensor control unit downstream of SCR catalytic converter |
47L |
| R39/1 |
Vent line heater element |
14L |
| R39/1 |
Vent line heater element |
92L |
| U1018 |
Valid for gasoline engine 276 |
18F |
| U1018 |
Valid for gasoline engine 276 |
41E |
| U1018 |
Valid for gasoline engine 276 |
45F |
| U1018 |
Valid for gasoline engine 276 |
50E |
| U1018 |
Valid for gasoline engine 276 |
58E |
| U1018 |
Valid for gasoline engine 276 |
55E |
| U1018 |
Valid for gasoline engine 276 |
59L |
| U362 |
Valid for gasoline engine 274 |
24E |
| U362 |
Valid for gasoline engine 274 |
30E |
| U362 |
Valid for gasoline engine 274 |
50F |
| U362 |
Valid for gasoline engine 274 |
58F |
| U362 |
Valid for gasoline engine 274 |
59K |
| U39 |
Valid for gasoline engine 177 |
97E |
| U400 |
Valid for USA, Canada and South Korea |
34F |
| U406 |
Valid for diesel engine 626 |
18E |
| U406 |
Valid for diesel engine 626 |
45E |
| U406 |
Valid for diesel engine 626 |
88E |
| U406 |
Valid for diesel engine 626 |
109F |
| U561 |
Valid for Delphi system |
19F |
| U561 |
Valid for Delphi system |
66E |
| U561 |
Valid for Delphi system |
73E |
| U562 |
Valid for Bosch system |
2E |
| U562 |
Valid for Bosch system |
9E |
| U948 |
Valid for diesel engine 651 |
1E |
| U948 |
Valid for diesel engine 651 |
8E |
| U948 |
Valid for diesel engine 651 |
18F |
| U948 |
Valid for diesel engine 651 |
45F |
| U948 |
Valid for diesel engine 651 |
66E |
| U948 |
Valid for diesel engine 651 |
73E |
| X101/3 |
Left rear frame floor assembly/underfloor electrical connector |
44H |
| X101/3 |
Left rear frame floor assembly/underfloor electrical connector |
86H |
| X101/4 |
Right rear frame floor assembly/underfloor electrical connector |
49H |
| X101/4 |
Right rear frame floor assembly/underfloor electrical connector |
53H |
| X25/7 |
Engine compartment/frame floor assembly electrical connector |
20H |
| X25/7 |
Engine compartment/frame floor assembly electrical connector |
25H |
| X26 |
Interior and engine wiring harness electrical connector |
17G |
| X26 |
Interior and engine wiring harness electrical connector |
56H |
| X26 |
Interior and engine wiring harness electrical connector |
82G |
| X26 |
Interior and engine wiring harness electrical connector |
94H |
| X26/10 |
Vehicle interior/engine electrical connector |
117H |
| X82/1 |
Engine wiring harness electrical intermediate connector |
107J |

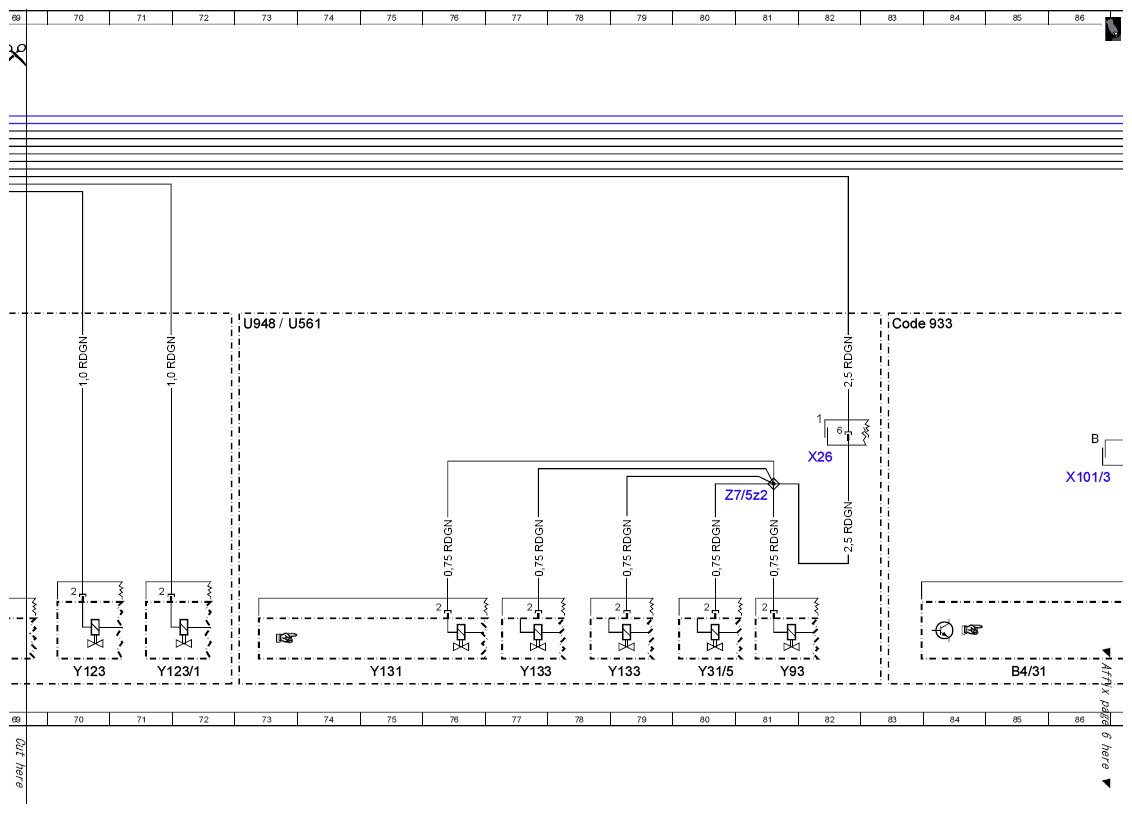

| Y123 |
Left switchable engine mount |
5L |
| Y123 |
Left switchable engine mount |
70L |
| Y123/1 |
Right switchable engine mount |
7L |
| Y123/1 |
Right switchable engine mount |
71L |
| Y131 |
Oil spray nozzle shutoff valve |
10L |
| Y131 |
Oil spray nozzle shutoff valve |
75L |
| Y133 |
Coolant pump switchover valve |
13L |
| Y133 |
Coolant pump switchover valve |
79L |
| Y133 |
Coolant pump switchover valve |
77L |
| Y16/2 |
Heating system shutoff valve |
107L |
| Y31/5 |
Boost pressure control pressure transducer |
15L |
| Y31/5 |
Boost pressure control pressure transducer |
80L |
| Y31/5 |
Boost pressure control pressure transducer |
96L |

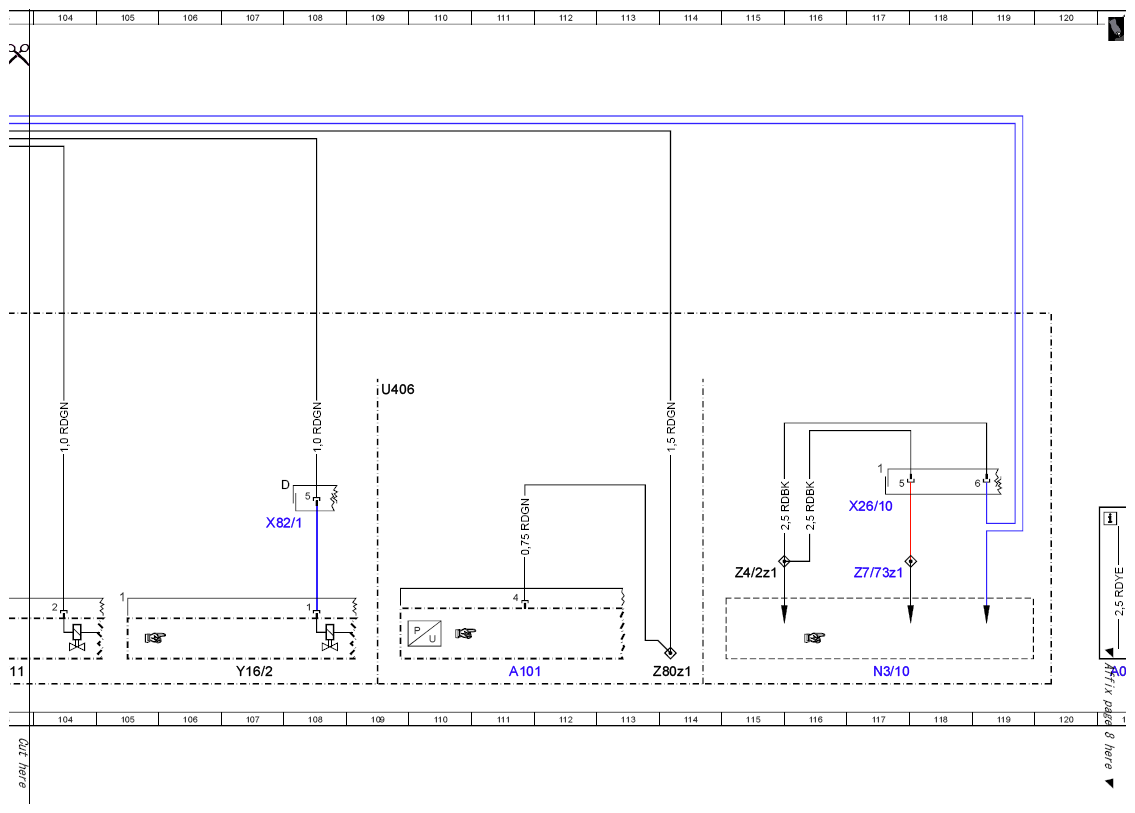

| Y58/1 |
Purge control valve |
32L |
| Y58/1 |
Purge control valve |
61L |

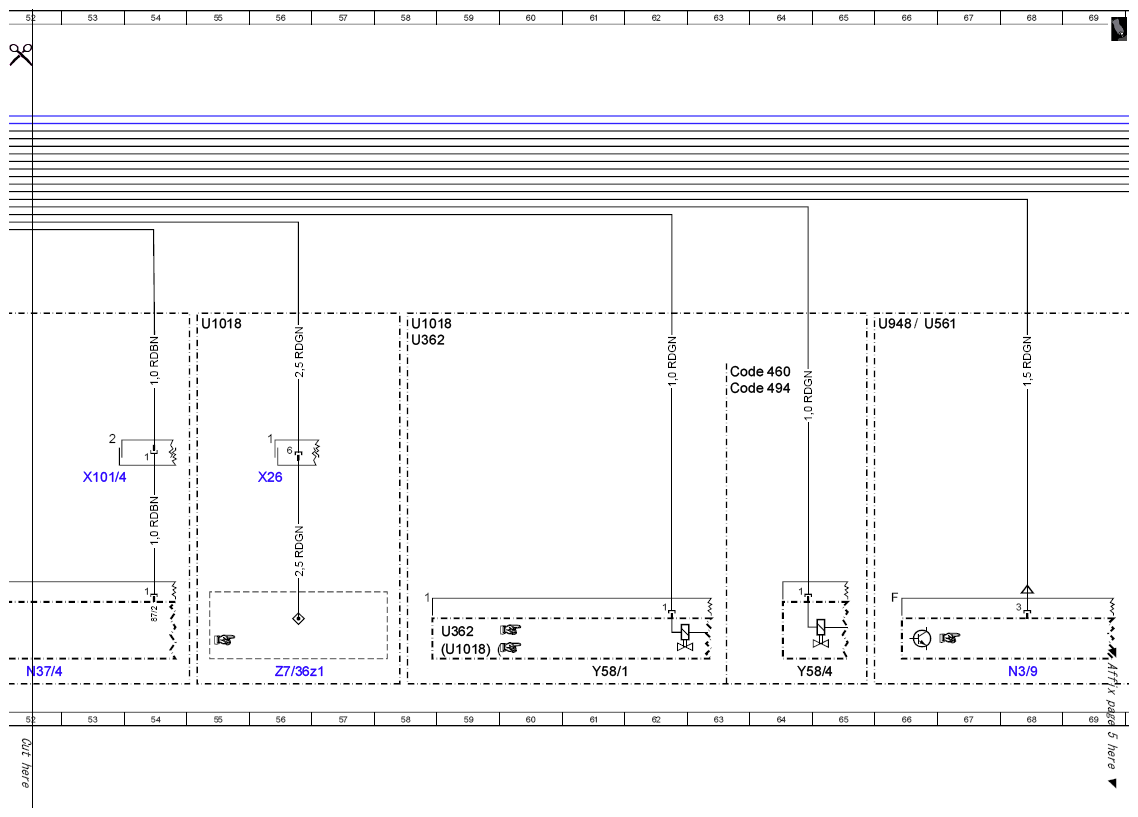

| Y58/11 |
Left purge control valve |
99L |
| Y58/11 |
Left purge control valve |
103L |
| Y58/4 |
Activated charcoal filter shutoff valve |
35L |
| Y58/4 |
Activated charcoal filter shutoff valve |
64L |
| Y93 |
Exhaust flap switchover valve |
17L |
| Y93 |
Exhaust flap switchover valve |
81L |
| Z4/2z1 |
Terminal 87/4 |
115J |
| Z6/32z1 |
Sensor ground line connector sleeve |
94L |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
56L |
| Z7/48z1 |
Circuit 87/2 connector sleeve |
49A |
| Z7/5z2 |
Circuit 87 connector sleeve |
16H |
| Z7/5z2 |
Circuit 87 connector sleeve |
81H |
| Z7/73z1 |
Circuit 87/4 connector sleeve |
117J |
| Z80z1 |
Cross section reduction connector sleeve |
114L |
